Maxilion 2400 Installation guidelines
Warning: If wrong wiring found during installation, Warranty of Maxiliion 2400 will be void.
1. Determine the right installation space for your inverter.
2. Installation space should be in a proper ventilated area or room, far from humidity and inflammable area.

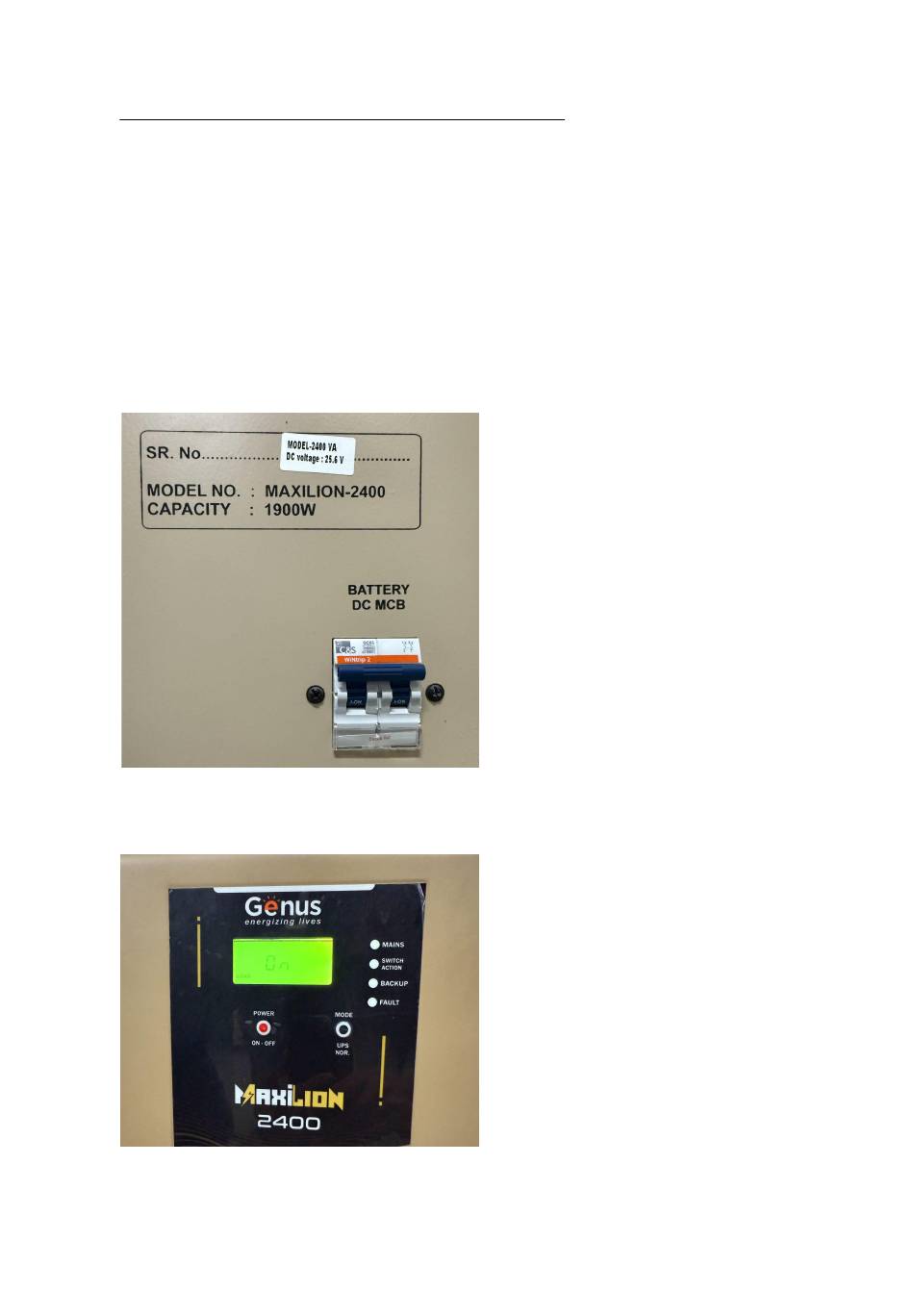

3. See the back side of the unit, there is Battery DC MCB, Mains AC MCB, Bypass switch and an Input Output Terminal.
Ensure that when the inverter is unboxed, MCBs are in off position.
4. Turn on battery DC MCB.
5. Check the parameters on the front LCD display.
6. If they are OK, Turn ON front Power ON/OFF Switch. The Back Up LED will continue to blink.
7. Check output voltage in the LCD Display( 220V AC), if it's OK, turn off the Power ON/OFF Switch.
