Summary of Contents for Dewenwils HMSR01H

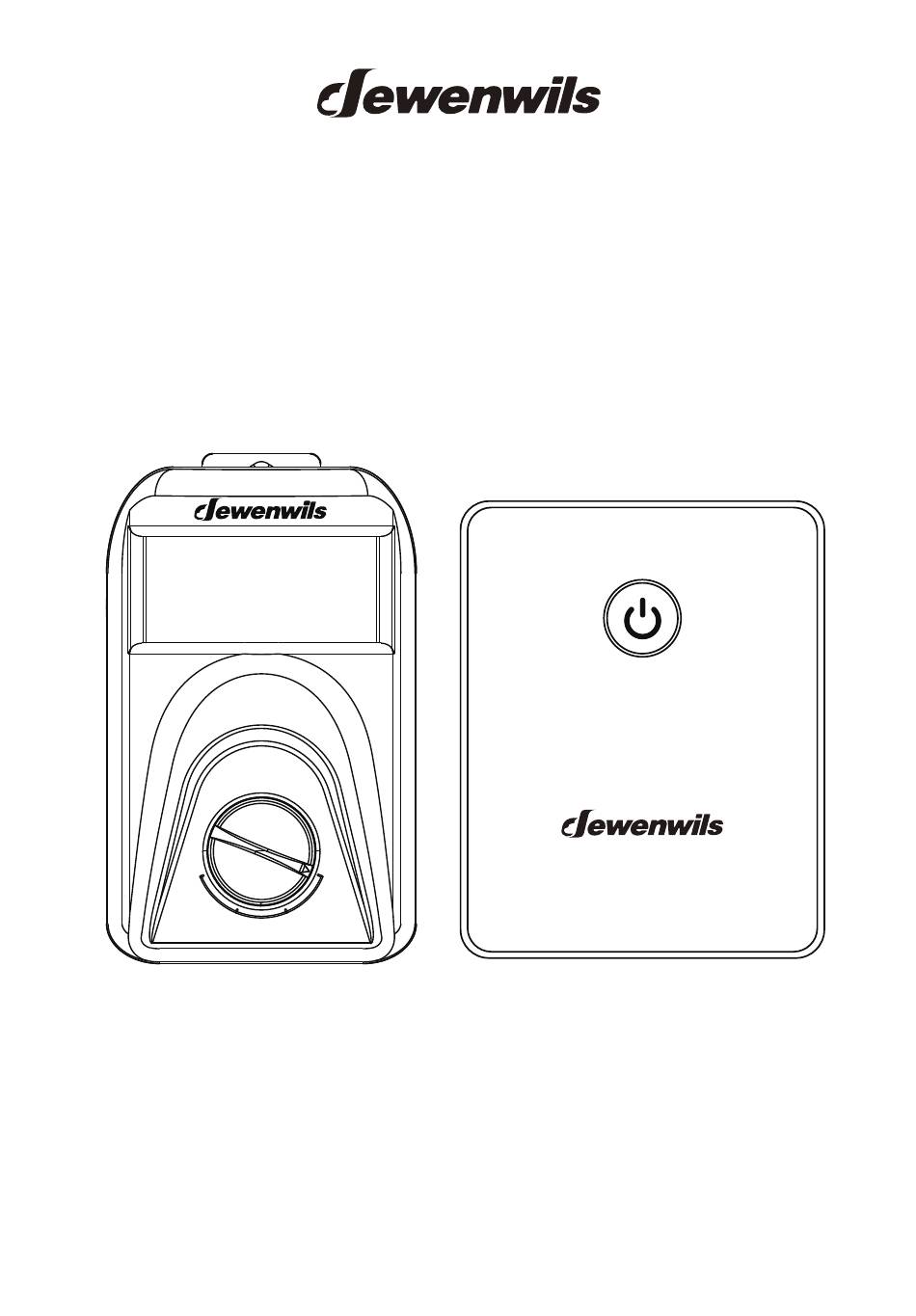

- Page 1 Wireless Motion Sensor Outlet SKU: HMSR01H [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V30322...
-
Page 2: Product Layout
Warning: To reduce the risk of fire, electric shock or personal injury, please strictly follow the instructions. 1. Do not immerse in water. 2. Do not connect any devices which may exceed the maximum ratings of this remote outlet. 3. Do not disassemble or repair the product, but only by authorized service personnel. -
Page 3: Function Introduction
DC 5V power supply port Please use a power adapter with 3.5 x 1.35mm DC head Time Delay Dial Key Pairing Button Battery Function case Knob Switch Function Introduction The motion/light sensor transmitter has the following 4 modes. Motion Detection Mode: The receiver will be on whenever the sensor detects motion, whether in day or night. - Page 4 Note: To activate the desired function, please rotate the knob switch to the corresponding letter inscribed for that mode. Method of using time delay function When using the "PIR" or "NTM" mode, toggle the "Delayed" switch (on the back of the transmitter) to select the amount of time that the receiver can remain on after the last detected motion, 1 minute, 5 minutes, 15 minutes or 30 minutes are available.
- Page 5 4. The indicator light stops flashing and keeps on indicating that the programming has already been set up successfully. Repeat Step 1-4 to pair multiple transmitters and receivers. Canceling All Programming Cancel all programming so that no remote transmitter can control it: 1.Press the programming button on the receiver until the indicator light begins to flash rapidly.
-
Page 6: Replacing Battery
2.Select the desired mode. 3.Hang the transmitter on the fixed bracket. Replacing Battery If you find that the receiver does not work properly or the transmitter does not work, please replace the batteries. Recommended to use "NiMH batteries". -
Page 7: Specifications
Note: 1.Do not mix old and new batteries. 2.Do not mix Alkaline Batteries, Super Heavy Duty Batteries (Zinc-Carbon) or Rechargeable Batteries (NiCd, NiMH, etc.) together. Specifications: - Input Voltage: 125VAC 60Hz - Max. Current: 15A Resistive 8A tungsten lamp - Transmission Frequency: 433.92MHz - Remote Control Distance: 100 ft (Free Area) - Detecting Angle:120°... -
Page 8: One Year Limited Warranty
● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. ISEDC Warning: This device complies with Innovation, Science, and Economic Development Canad licence-exempt RSS standard(s).
