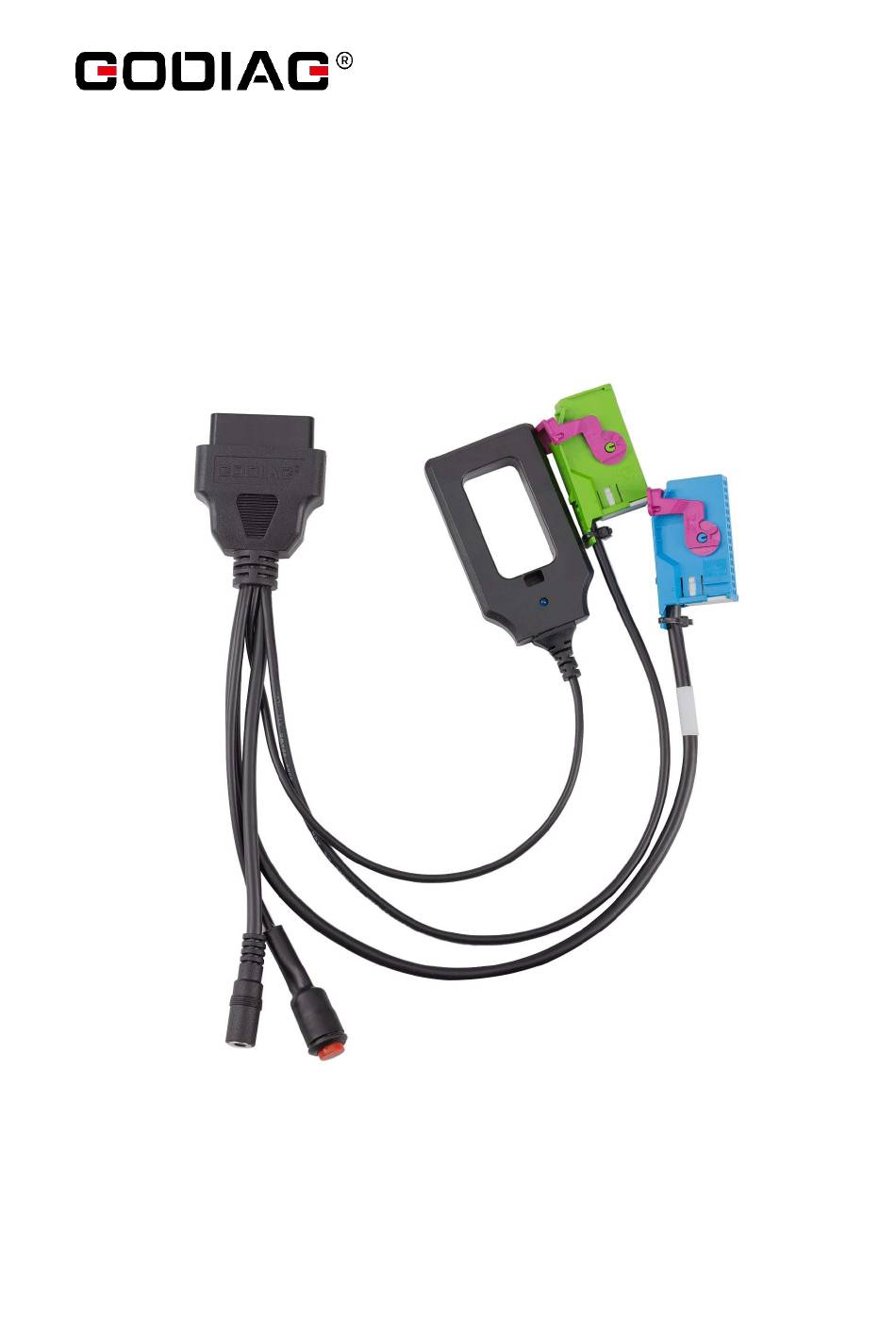

- Page 1 GODIAG GT112 K-Line FOR VW Skoda Seat 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable User Manual 202501...
-
Page 2: Product Overview
Product Overview GODIAG GT112 K-Line for VW Skoda Seat 2nd & 3rd generation dashboard IMMO key matching test platform cable performs offline key and IMMO instrument synchronization test, intelligent IMMO system emergency start area sensing detection, IMMO dashboard offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching... - Page 3 If the IMMO light on the instrument flashes, it means that the instrument has not recognized the key. If the induction adapter flashes for three seconds and then turns off, it also means that the key has not been recognized or the key chip does not match. Step 2: Open vvdi2 software.
- Page 4 Step 3: Select"VW">>"K-Line Instrument/Immobox">>"Instrument Cluster(VDO66, VDO86, Motometer)">>"Read EEPROM">>"Save File".
- Page 5 Step 4: Save the data and click “Yes” to exit.
- Page 6 Step 5: Select “Transponder Programmer” Step 6: Then follow the prompts to insert Xhorse VVDI super chip. Note: If the chip has been used, you need to erase it first.
- Page 7 Step 7: Select "Immobilizer Data Tool". Step 8: Select the model as shown (Euro/ VW/ Golf/ IV1999 VDO-93C86).
- Page 8 Step 9: Select "Load EEPROM dump". Step 10: Then select the VDO86 eeprom file you just saved...
- Page 9 Step 11: Select "Make Dealer Key">>"VVDI Super chip-Select used position. NO NEED write EEPROM".
- Page 10 Step 12: The key matching is successful. Test the newly generated chip. Step 13: Put the chip into the induction adapter.
- Page 11 After pressing the ignition switch, you can see the light on the induction adapter flash quickly and then go out immediately, and the IMMO flash quickly and then go out immediately. This means that the chip is matched successfully.
- Page 12 3. The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system. Accessories: 1pc x GODIAG GT112 K-Line FOR VW Skoda IMMO Key Matching Test Platform Cable 1pc x PDF manual...
- Page 13 Shenzhen Sinoy Technology Co.,Ltd All Rights Reserved www.godiag.com +86 18813687743 Sales@GoDiag.com Thanks for reading!
