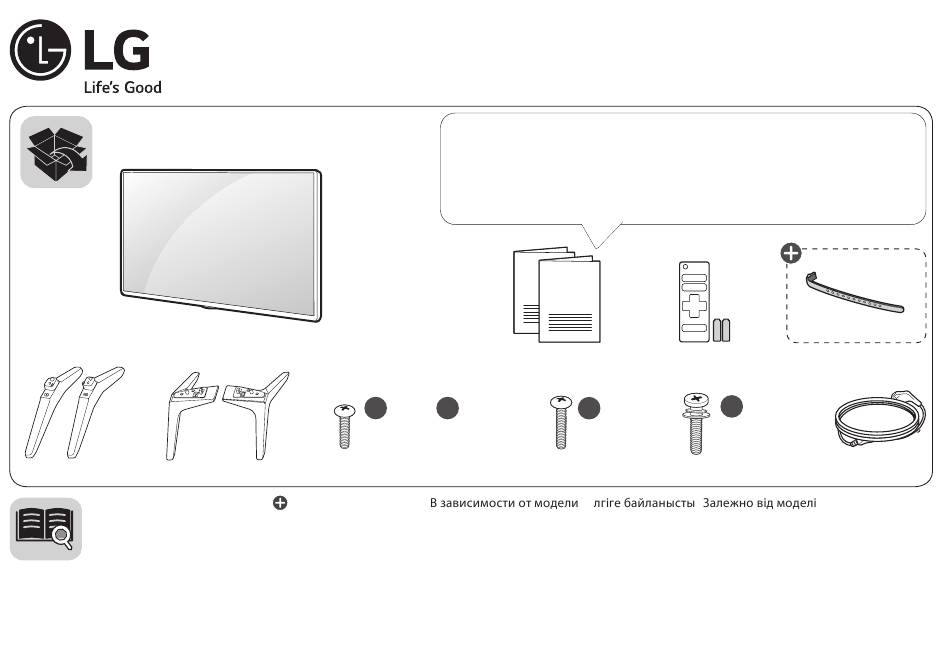

PREPARATION FOR THE FIRST TURN ON
ПОДГОТОВКА К ПЕРВОМУ ВКЛЮЧЕНИЮ
АЛҒАШҚЫ ҚОСЫЛУҒА ДАЙЫНДЫҚ
ПІДГОТОВКА ДО ПЕРШОГО ВКЛЮЧЕННЯ
PREGĂTIREA PENTRU PRIMA PORNIRE
43UJ63**
49/55/60/65UJ63**
www.lg.com
*MFL696689231702REV00*
Read the: "Safety and Reference"
Прочитайте: "Руководство по технике безопасности"
Оқыңыз: "Қауіпсіздік пен анықтама"
Прочитайте: "Правила безпеки та довідкова інформація"
Citiţi: "Siguranța si referințe"
12
12
14
14
16
20
a
a
X 2
X 4
(M4 X L16)
(M4 X L16)
43UJ63**
49UJ63**
: Depending on model/
12
14
16
20
16
20
b
X 4
(M5 X L20)
55UJ63**
/ Ү
AAA
c
X 6
(M4 X L20)
60/65UJ63**
/
/ În funcţie de model
Printed in Russia
Напечатано в России
Ресейде басып шығарылған
Надруковано в Росії
Imprimat în Rusia
P/No: MFL69668923 (1702-REV00)
LED TV
UJ63**

Advertisement

loading
Need help?

Need help?

Do you have a question about the 65UJ63 Series and is the answer not in the manual?

Questions and answers

Related Manuals for LG 65UJ63 Series

Summary of Contents for LG 65UJ63 Series

  • Page 1 (M5 X L20) 60/65UJ63** 43UJ63** 49UJ63** 55UJ63** 43UJ63** 49/55/60/65UJ63** : Depending on model/ / Ү / În funcţie de model www.lg.com Printed in Russia Напечатано в России Ресейде басып шығарылған Надруковано в Росії *MFL696689231702REV00* Imprimat în Rusia P/No: MFL69668923 (1702-REV00)
  • Page 2 43UJ63**...
  • Page 3 49/55/60/65UJ63** 60/65UJ63** 49/55UJ63**...
  • Page 4 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN AUDIO OUT/ H/P OUT...
  • Page 5 AUDIO OUT/ H/P OUT Satellite IN OPTICAL DIGITAL AUDIO OUT : Depending on model/ / Ү / În funcţie de model COMPONENT IN AV IN...
  • Page 6 COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIOR VIDEO/Y P L/MONO AUDIOR VIDEO AUDIO VIDEO L/MONO AUDIOR...
  • Page 8 Information Вызов справки Анықтаманы шақыру Виклик довідки Cererea informației...
  • Page 9 43UJ6307-ZA 43UJ6309-ZA 80.8 43UJ630V-ZA 43UJ639V-ZE 49UJ6307-ZA 49UJ6309-ZA 1110 81.1 11.4 11.3 49UJ630V-ZA 49UJ639V-ZE 55UJ6307-ZA 55UJ6309-ZA 1249 83.4 14.3 14.2 55UJ630V-ZA 55UJ639V-ZE Power requirement Требования к электропитанию Электртұтыну шарттары Вимоги до електроживлення Cerinţe la reţeaua de alimentare...
  • Page 10 60UJ6307-ZA 60UJ6309-ZA 1359 82.9 17.6 17.4 60UJ630V-ZA 60UJ639V-ZE 65UJ6307-ZA 65UJ6309-ZA 1471 83.4 22.5 22.3 65UJ630V-ZA 65UJ639V-ZE Power requirement Требования к электропитанию Электртұтыну шарттары Вимоги до електроживлення Cerinţe la reţeaua de alimentare...
  • Page 11 (Только для России) Данные по энергоэффективности для моделей телевизоров LG * Указанные модели телевизоров не имеют «выключенного режима». Для полного отключения телевизора - отсоедините его от сети питания. * Потребляемая мощность изделием в режиме ожидания: распространяется на заводской режим по умолчанию, только когда функция сетевого...

  • Page 12: Safety And Reference

    OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. Printed in Russia Manufacturer: LLC «LG Electronics RUS»...
  • Page 13 Warning! Safety instructions • Bend antenna cable between inside and outside building to inside the Product and could give an electric shock. • When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric CAUTION RISK OF ELECTRIC SHOCK •...
  • Page 14 switch.) It may cause mechanical failure or could give an electric • Apparatus shall not be exposed to dripping or splashing and no shock. • Please follow the installation instructions below to prevent the apparatus. product from overheating. • Do not install this product on a wall if it could be exposed to oil or - The distance between the product and the wall should be more oil mist.

  • Page 15: Separate Purchase

    Preparing • Make sure to spray just enough of water or cleaner onto a dry cloth to wipe the screen. • When cleaning the product, be careful not to allow any • liquid or foreign objects to enter the gap between the factory, initialization of the TV may take a few minutes.

  • Page 16: Using The Button

    <C type> • When transporting the TV by hand, hold the TV as shown in the following illustration. • When transporting the TV, do not expose the TV to jolts or excessive vibration. • When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.

  • Page 17: Mounting On A Table

    • Leave a 10 cm (minimum) space from the wall for proper ventilation. of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with 10 cm cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
  • Page 18 • When installing the wall mounting bracket, it is recommended to 65SJ93** 60/65SJ85** dust and insects. (Depending on model) 60/65SJ81** 65SJ80** 75/86SJ95** Model 60/65UJ75** 70/75UJ67** 65UJ70** 75UJ65** 65UJ67** 60/65UJ65** 60/65UJ63** VESA (A x B) (mm) 300 x 300 600 x 400 Standard screw Stand hole Number of screws...

  • Page 19: Remote Control

    Remote control Antenna connection Connect the TV to a wall antenna socket with an RF cable (75 ). (Some buttons and services may not be provided depending on models • Use a signal splitter to use more than 2 TVs. or regions.) •...

  • Page 20: Magic Remote Functions

    set-top box to the universal remote control for your TV. Returns to the previously viewed programme. * You can access apps or Live TV using the number Number buttons Enters numbers. buttons corresponding to the features. Alphabet buttons Enters letters. Adjusts the volume level.

  • Page 21: Open Source Software Notice Information

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to on which you purchased the product.

  • Page 22: Troubleshooting

    Generated Sound To obtain the external control device setup information, please visit • “Cracking” noise: A cracking noise that occurs when watching or www.lg.com. to temperature and humidity. This noise is common for products where thermal deformation is required. Troubleshooting •...
  • Page 23 (Depending on country) Digital TV Analogue TV DVB-T DVB-T2 PAL/SECAM, B/G, D/K, I Television system DVB-C SECAM L DVB-S/S2 DVB-S/S2 DVB-C DVB-T/T2 VHF III : 174 ~ 230 MHz Channel coverage UHF IV : 470 ~ 606 MHz 46 ~ 862 MHz (Band) 950 ~ 2150 MHz 46 ~ 890 MHz...

  • Page 24: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...

  • Page 25: Key Codes

    KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button Volume -...
  • Page 26 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 27 (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
  • Page 28 Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA DATA...
  • Page 29 Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 30 * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 31 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64 Data Min : 00 to Max : 64...
  • Page 32 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV) Frequency...
  • Page 33 * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
  • Page 34 24. Input select (Command: x b) 2. Tune to the BS (ISDB-BS) channel 30. Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 & 02 = Major is 30 = 00 1E Transmission [x][b][ ][Set ID][ ][Data][Cr] Data 03 &...
  • Page 35 * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning. 4) When [Data 00] is 08 * If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data 00 : Revert to 3D video from 3D-to-2D 01], [Data 02] and [Data 03] have no meaning.
  • Page 36 *MFL693657611704REV00* Модель и серийный номер телевизора указаны на задней панели устройства. Запишите эти данные, на случай, если вам потребуется техническое обслуживание. Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.
