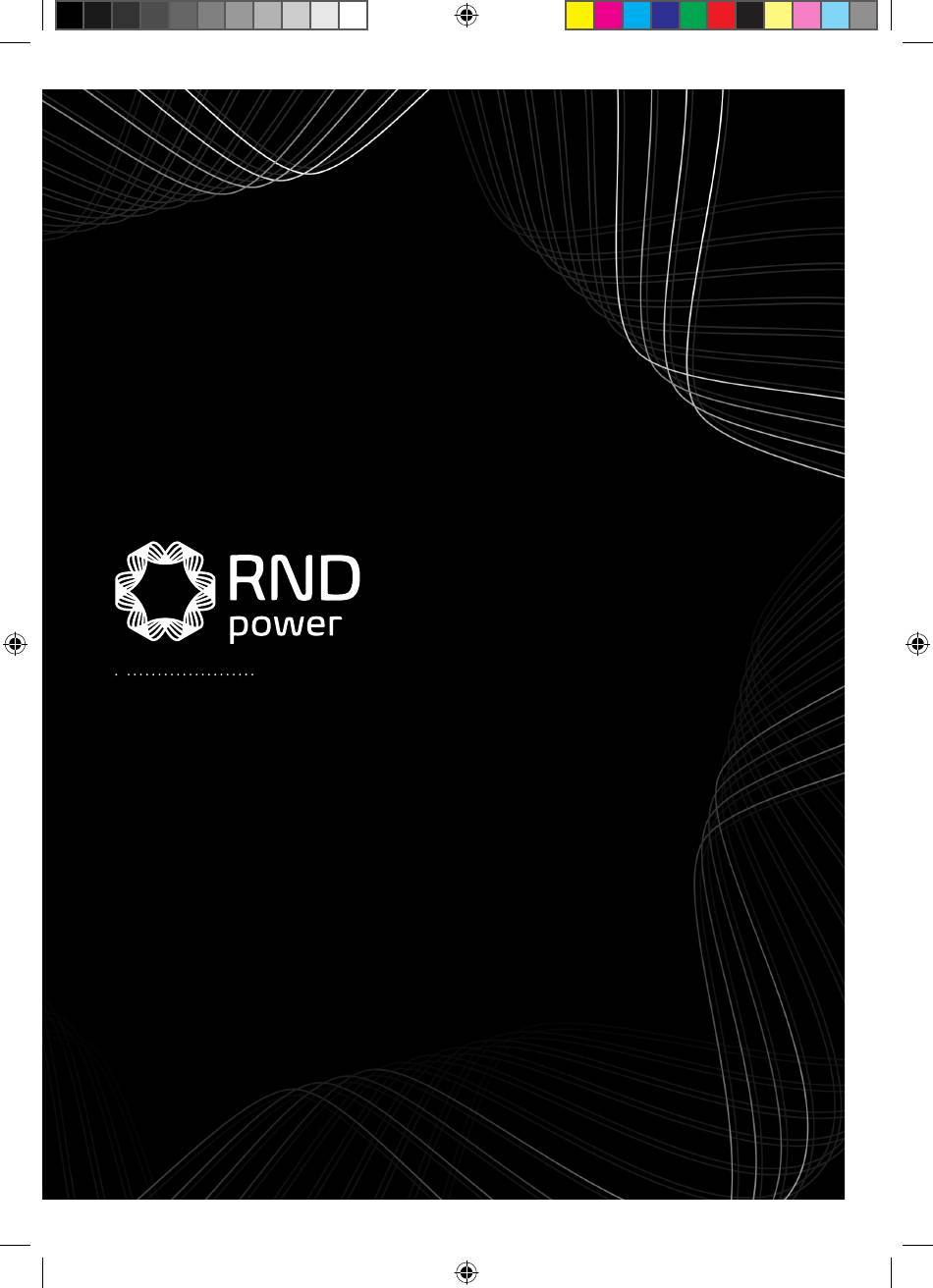

- Page 1 U S E R M A N U A L RND 315-00011 RND 315-00016 AC-DC DIN RAIL MOUNTED POWER SUPPLY 240W...
-
Page 2: Single Phase Input
RND 315-00011, 315-00016 — AC-DC DIN RAIL MOUNTED POWER SUPPLY PRODUCT SPECIFICATION din rail power supply PRODUCT SPECIFICATION din rail power supply Electrical AC-DC Din Rail Mountable Power Supply IS-240 SERIES, SINGLE PHASE INPUT Nominal Output Output Ripple Efficiency SINGLE PHASE INPUT Part Number Certificate... -
Page 3: Product Specification
RND 315-00011, 315-00016 — AC-DC DIN RAIL MOUNTED POWER SUPPLY din rail power supply PRODUCT SPECIFICATION PRODUCT SPECIFICATION PRODUCT SPECIFICATION din rail power supply din rail power supply din rail power supply PRODUCT SPECIFICATION Protection Protection Protection OUTPUT Short circuit... - Page 4 PRODUCT SPECIFICATION RND 315-00011, 315-00016 — AC-DC DIN RAIL MOUNTED POWER SUPPLY din rail power supply din rail power supply PRODUCT SPECIFICATION din rail power supply PRODUCT SPECIFICATION Mechanical Mechanical Environment PARAMETER CONDITIONS UNITS 125±1.0 60±1.0 Ambient operating ℃ Startup at rated voltage...
-
Page 5: Application Note
RND 315-00011, 315-00016 — AC-DC DIN RAIL MOUNTED POWER SUPPLY PRODUCT SPECIFICATION din rail power supply PRODUCT SPECIFICATION din rail power supply Electrical Curve Application Note 1. Series Operation LOAD LOAD LOAD 230Vac Input 110Vac Input 50 60 70 110 130 150 190 210 230 Temperature(℃) - Page 6 RND 315-00011, 315-00016 — AC-DC DIN RAIL MOUNTED POWER SUPPLY PRODUCT SPECIFICATION din rail power supply PRODUCT SPECIFICATION din rail power supply Application Note Application Note 2. Parallel Operation 3. Mounting Method (1) How to fix Firstly hang A part on the top of Rail as shown in below, then push the power supply into B di- rection to fix it.
- Page 7 RND 315-00011, 315-00016 — AC-DC DIN RAIL MOUNTED POWER SUPPLY PRODUCT SPECIFICATION din rail power supply din rail power supply PRODUCT SPECIFICATION Application Note Application Note 4. Cautions 3. Mounting Method (1) Please confirm if the capacity of the product is suitable for your intended application be- (3) Mounting Spacing fore putting it in use;...
