Summary of Contents for VonHaus 3519007

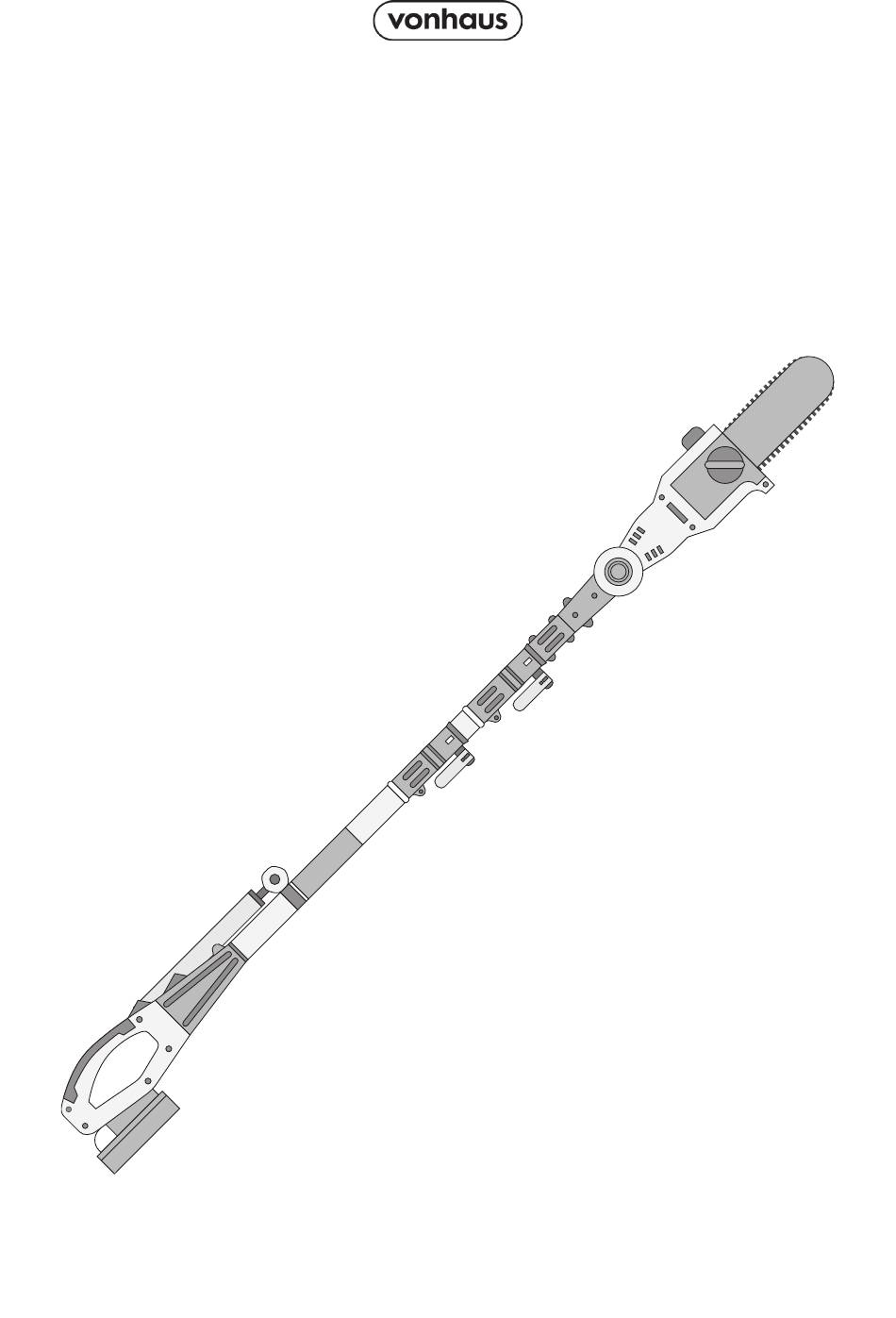

- Page 1 POLE CHAINSAW Setup Instructions Product No. 3519007...
- Page 2 Need further help? See our full range at support@vonhaus.com www.vonhaus.com Besoin d’aide supplémentaire ? Découvrez notre gamme complète sur support@vonhaus.com www.vonhaus.com Benötigen Sie weitere Hilfe? Entdecken Sie unser gesamtes Sortiment auf support@vonhaus.com www.vonhaus.com Necesita más ayuda? Descubra toda nuestra gama en support@vonhaus.com...
-
Page 3: Parts And Components
Parts & Components A. Cutting Bar Sheath B. Oil Tank Cap C. Chain Saw Head D. Multi-Angle Head Adjustment Dial E. Lock Tab F. Telescoping Pole G. Soft Grip H. Shoulder Strap I. Handle Rotating Switch J. Safety Lock Switch K. - Page 4 Assembly Open the assembly lock (N) on the telescoping pole (F) and push the chain saw head (C) into the open- ing at the end of the pole.
- Page 5 Assembly When the lock tabs (E) snap in, lock the assembly lock (N) back. The pole chain saw will be ready to use.
-
Page 6: Operation
Operation Slide the battery (V) into the battery compartment until it clicks to lock into position. To turn the pole chain saw ON, push and hold the safety lock switch (J) located on the handle forward with your thumb, then squeeze the trigger switch (K) with your fingers. - Page 7 Adjusting the Shoulder Strap The shoulder strap (H) connection point • For operation at minimum height, posi- is adjustable along the pole’s length. This tion the clip closer to the handle. allows users to optimise the weight distri- • When using the pole at full extension, bution of the tool.
- Page 8 Adjusting the Telescoping Pole This machine is equipped with a telescoping pole (F), providing up to 14 ft (4.3 m) of overhead reach. To adjust the telescoping pole, follow these instructions: Disconnect the saw from the power supply by removing the battery (K) from the compartment.
- Page 9 Adjusting the Telescoping Pole Unclip the telescoping lock (M) to release the pole. Extend the pole to the desired length. Note: Push the poles toward each other to shorten, or pull them away to lengthen. Lock the pole in position by closing the telescoping lock (M), ensuring the pole is secured.
- Page 10 Adjusting the Multi-Angle Head WARNING: Ensure the chain saw head The pole chain saw head can rotate to cutting angles of 0º, 15º, and 30º. is securely locked to avoid injury or dam- 1. While pressing the rotating buttons (D) age.
-
Page 11: Operation Tips
Proper Cutting Stance Stance Operation Tips • Stand with both feet firmly on the • Let the chain reach full speed before ground. cutting. • Keep your body to the left of the chain • Apply light downward pressure; let the line. - Page 12 Installing/Replacing Guide Bar + Cutting Chain Warning! Required Tools Always install guide bar, chain, and • Hex key wrench (included) chain/sprocket cover before starting mo- • Heavy-duty work gloves tor to prevent serious injury from clutch failure. Disconnect battery before installation Release chain/sprocket cover (O) by turning knob (P) counterclockwise...
- Page 13 Installing/Replacing Guide Bar + Cutting Chain Remove existing bar and chain...
- Page 14 Installing/Replacing Guide Bar + Cutting Chain Place new chain around bar, ensuring: • Sharp edges face direction of rotation • Drive links fit into bar groove • Chain forms loop at bar’s back Chain Rotation Sharp Cutting side Chain Drive Link...
- Page 15 Installing/Replacing Guide Bar + Cutting Chain Position assembly onto saw head: • Loop chain around sprocket • Align bar studs with slot • Place adjusting pin in tension hole Sprocket Tension Hole Proper Tension Test Replace cover (O) and loosely tighten •...
-
Page 16: Important Notes
Oil Tank Instructions Steps Important Notes • Before Starting: Remove the oil tank • Lubricate the chain to prevent damage. cap (B) and add bar and chain oil to • It’s normal for oil to seep when not in the top of the oil level indicator win- use. -
Page 17: Chain Sharpening
Information Nuts and Screws Chain Sprocket • Regularly check and tighten all nuts and Check regularly and replace if wear exceeds screws. 0.5 mm.’ • Ensure the telescoping lock (M) and assem- bly lock (N) are secure. Troubleshooting Chain Tension Most issues are easy to resolve. -
Page 18: Battery Safety Instructions
Information Safety Instructions Additional Safety for Battery Charger • Environment: Avoid wet areas and rain; use indoors and store dry. • Usage: Read instructions, use indoors, and • Safety Gear: Wear snug clothing, gloves, ensure proper voltage. Do not charge leak- and eye protection. - Page 19 Should you require assistance with your pur- chase, please contact us at support@domu. Disposal co.uk • Recycling: Use designated facilities and VonHaus is a registered trademark of DOMU follow local regulations. Brands Ltd. • Packaging: Recycle or store packaging for future use.
-
Page 20: Usage & Safety
Usage & Safety Sharp edges Protect your ears Protect your eyes Protect your hands Wear suitable footwear Protective clothing must be worn Beware of Potential finger Maintain a safe distance kickback trap points from bystanders Do not use in wet conditions Grass Sweeper No. - Page 21 All material in this instruction manual are copy- qualify for a free extended warranty please go righted by DOMU Brands. to www.vonhaus.com/warranty. Any unauthorised use may violate worldwide Please retain a proof of purchase receipt or copyright, trademark, and other laws.
- Page 22 Product No. 3519007...
