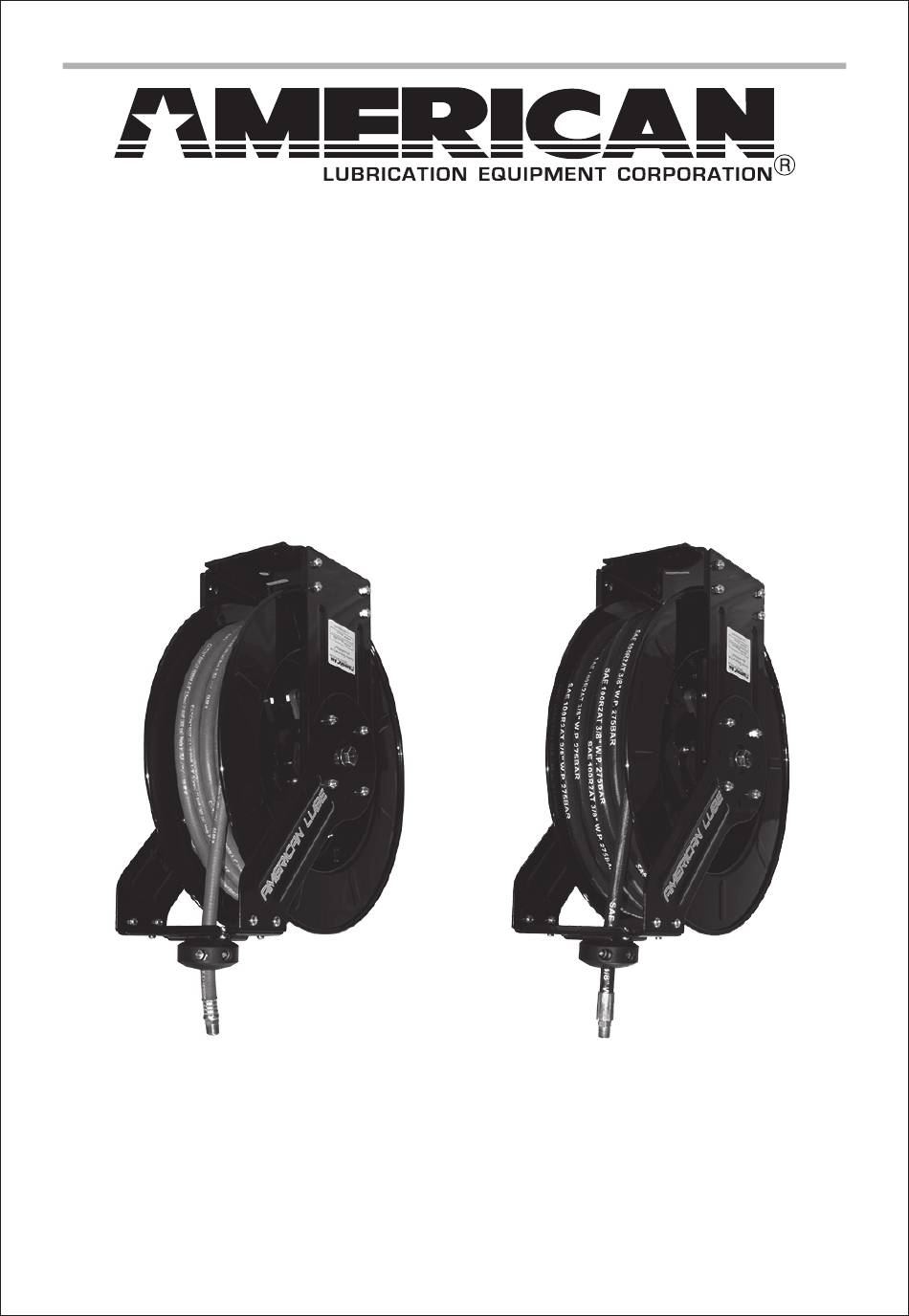

- Page 1 AMERICAN LUBRICATION EQUIPMENT CORPORATION 11212A MCCORMICK ROAD, HUNT VALLEY, MD 21031 WWW.AMERICANLUBE.COM CONTACT: 410-252-9300 TIM-3900 SERIES ADVANTAGE² DOUBLE-ARM REEL MANUAL Low Pressure Medium & High Pressure Red Hose Black Hose Superior Technology at an Affordable Price ®...
-
Page 2: Safety Precautions
WARNING Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing. -
Page 3: Operation
10. Apply Teflon tape to outlet fitting on reel hose, then attach to desired tool or nozzle. Check connection for leakage, also check hose reel for correct operation. (Details see Operation section.) 11. If hose stop adjustment is required, pull hose from reel and latch the reel at desired length. Loosen hose stop bolts and slide hose stop to a position close to the hose guide. - Page 4 Replacement of Hose CAUTION: Bleed the line pressure from the supply line before working on the reel. Pull out all the old hose and lock the reel. CAUTION: Make sure the reel drum is securely locked and cannot retract. Remove the two hose clamps from the hose. CAUTION: Carefully disconnect the hose from the swivel joint on the side of the reel, or the male fitting in the axle center and remove the old hose.
-
Page 5: Exploded Parts Diagram
EXPLODED PARTS DIAGRAM... - Page 6 Qty. Description Part Number (P/N) Reel Order: TIM-3916-xx TIM-3900-18 Swivel Assembly TIM-3918-xx TIM-3900-19 NOTE: O-ring swivel seal kit is available, order: TIM-OILSWIV-KIT TIM-3928-50 TIM-3936-50 TIM-3900-21 Delivery Hose Reel Order: TIM-3916-50 TIM-4216-50A TIM-3916-65 TIM-4216-65F TIM-3918-50 TIM-4208-50F TIM-4208-65F TIM-3918-65 TIM-3928-50 TIM-4418-50S TIM-3936-50 TIM-4506-50S Clamp TIM-HOSE-CLMP...
- Page 7 PARTS LIST OF RATCHET ASSEMBLY 10-3 10-4 10-2 10-5 10-1 10-6 10-7 Description Description 10-1 Lock Washer 10-5 Locking Cam 10-2 10-6 Small Spacer 10-3 Large Spacer 10-7 Shoulder Bolt 10-4 Spring...
- Page 8 Mounting Hole Dimensions L = 3-1/2"; M = 7-1/2" Size Index Chart Mount L-M 9" 20-1/2" 23" 7-1/2" 9" 3-1/2" x 7-1/2" 3.02.02.496 REV 08/24/23...
