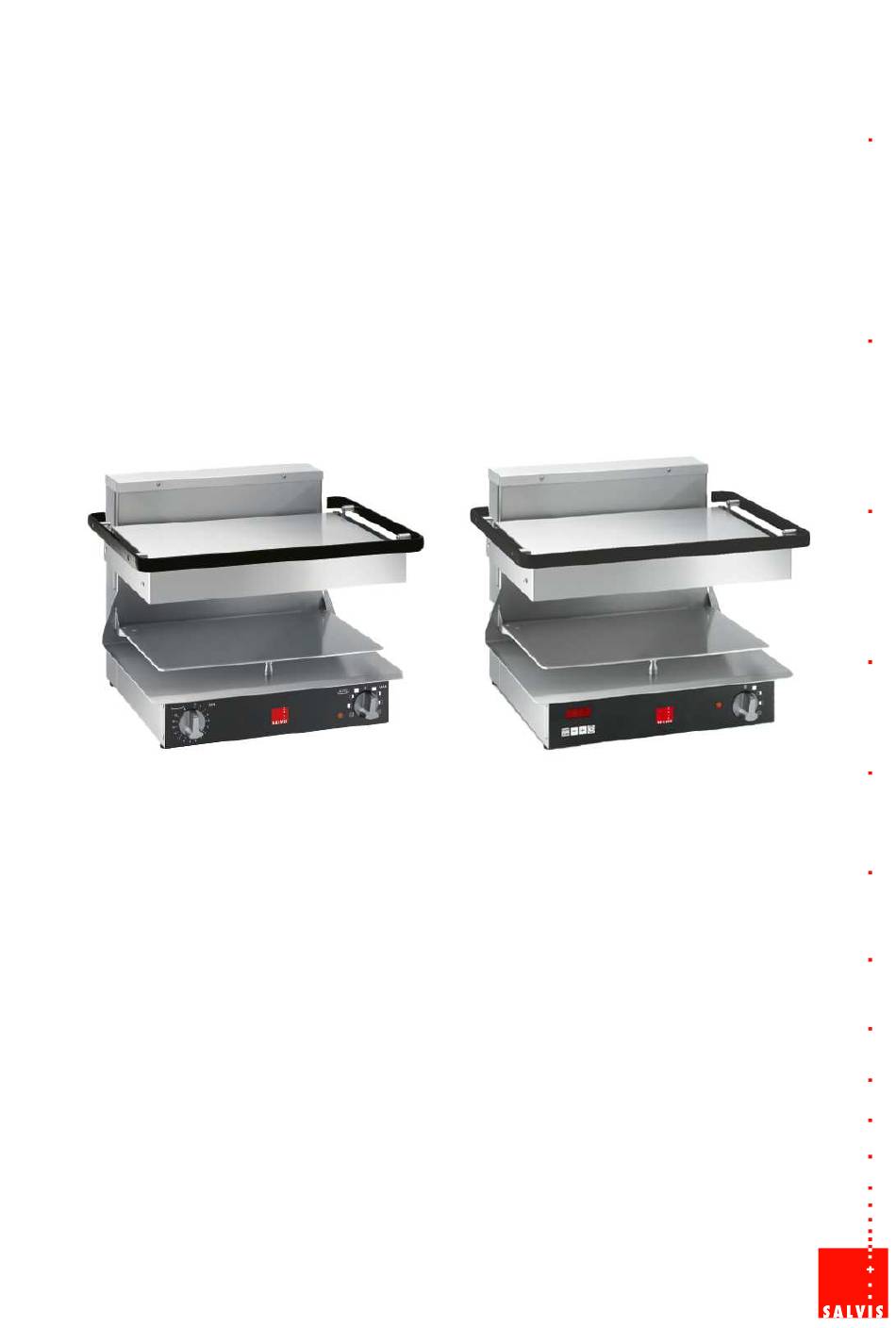

- Page 1 SALVIS Salamander Classic and Classic Pro SSR RH C SSR RH C-Pro SSR HL C SSR HL C-Pro Installation and Operating Instructions...
- Page 2 Dear Customer, Please read this installation and operating instructions carefully before using your new Salamander. They contain important instructions for the correct installation and operation and must always be available at the work station. 2 / 16...
-
Page 3: Table Of Contents
Table of contents page Introduction ............Note regarding devices with Hilight heaters . -
Page 4: Introduction
Introduction 1.5 Conformity Notes 1.1 Note regarding devices with Hi The device has been manufactured as per VDE/ light heaters GS and European standards (EN). Automatic ON/OFF switching during operation! − The hilight heaters are equipped with a builtin temperature monitoring system. −... -
Page 5: Installation
Installation Technical specifications (Standard) Technical specifications Salamander with mechanical Salamander with elektronic shortterm timer shortterm timer Part No. Tubular heating element (RH): Tubular heating element (RH): SA373200, SA373206 SA373210, SA373214, 893145, 1) 2) HiLight heating element (HL): SA373224 SA373201, SA373207, SA373230, HiLight heating element (HL): 954942, 877838, 878381, 887352, SA373211, SA373215, 956813,... -
Page 6: Wall Mount
2.2.1 Table top unit Setting up the table top unit − Horizontal and not sensitive to vibrations, − not on heated or flammable surfaces, − not against flammable walls − We recommend placing the table unit onto a small subframe, part no. SA 373209 . Due to heat radiation, maintain a minimum distance of 200 mm to the left and right to devices, walls or objects. -
Page 7: Dimensional Drawings
The mobile power cable must conform to at least H 07 RNF. An electrical switch (main switch) − must be easily accessible and preswitched on the installation. − The switch must separate the device from the power supply effectively and completely. −... -
Page 8: Tips For Operation Safety
Tips for operation safety Daily operation D The device is intended for commercial use and must only be used − by trained personnel, − if the device is supervised, − for the purpose indicated in the operating instructions, − if there is no malfunction. D The device must only be used outside if there is a roof and sufficient wind protection! Protect the device and the connection cables from moisture! D Do not use the device as a shelf or storage space! -
Page 9: Operation With Mechanical Shortterm Timer
Operation with mechanical shortterm timer Operating modes − You have several ways of controlling the heater: Manually (not with type 893144, 893145, SA893144, SA893145) − The heater is switched on immediately as per setting of the selector switch and remains tur ned on until it is switched off. -
Page 10: Turning On The Appliance
Turning on the Appliance Example: Right heater, operating mode automatic with shorttime clock and plate switch. 4.2.1 Plate recognition without timer . Turn the selector switch to the left to the op erating mode “Automatic”, “Heater on the right”. . Slide the reflector all the way to the top. . -
Page 11: Operating The Salamander With Electronic Shortterm Timer
Operating the Salamander with electronic shortterm timer Control panel with electronic shortterm timer Selector switch Blinks when time − Turning device on and off Time indicator has elapsed − Adjusting the heating rate Left and right heater Right heater Left heater Keeping left and right warm Switching short-... -
Page 12: Automatic Operation Via Plate Recognition And Timing Control
Automatic operation via plate recognition and timing control Automatic start of the set time and switching on the heater by − placing a plate (plate recognition) or by − pressing the START/STOP key. The heater will switch off − automatically after the set time has elapsed, or −... -
Page 13: Automatic Operation Via Plate Recognition Without Timing Control
Automatic operation via plate recognition without timing control Automatic start of the set time and switching on the heater by − placing a plate (plate recognition) or by − pressing the START/STOP key. The heater will switch off − after the set time has elapsed, or −... -
Page 14: Completion Of Operation
Completion of operation D Turn the selector switch to 0 position. D Indicator lamp goes off. D Clean the device, see chapter 7., „Cleaning and Care“. D Switch off the main switch. Cleaning and care Cleaning Regular cleaning leads to an increased product life of the device. We recommend cleaning the device on a daily basis as follows: −... -
Page 15: Errors And Remedies
Errors and remedies If there are malfunctions on the device, check these against the following table: Error Possible cause Remedy When switching the de Main switch not turned on in Turn on the main switch. vice on, the yellow indi front of the device. - Page 16 Artikel-Nr.: SA373218 / 7.2007 / 2.25 SALVIS AG Nordstrasse 15 CH-4665 Oftringen www.salvis.ch Phone +41 62 788 18 18 +41 62 788 18 98 smart cooking...
