AGP UV-S604 Manual

Hide thumbs

Advertisement

Table of Contents

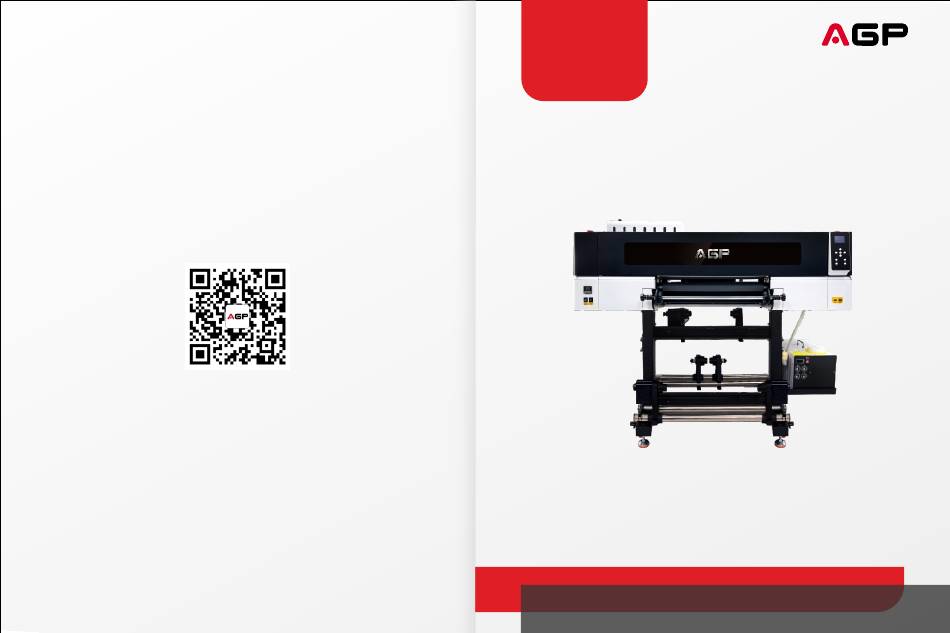

UV-S604
SERIES MANUAL
Thank you for purchasing our company's products.
Here are the specific instructions for using the equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UV-S604 and is the answer not in the manual?

Questions and answers

Summary of Contents for AGP UV-S604

  • Page 1 UV-S604 SERIES MANUAL Thank you for purchasing our company's products. Here are the specific instructions for using the equipment.

  • Page 2: Product Parameters

    1. Please Note TECHNICAL PARAMETER Please read this instruction carefully before using the printer: Model UV-S604 1. Comply with local laws and regulations when using the machine. 2. Please use the original manufacturer's accessories and ink according to the Epson I3200-U1/Epson I1600-U1 Printhead instructions.

  • Page 3: Preparation Before Use

    G+CMYK+W+V Anti-collision system HIWIN guide rail Laminating device 3. Preparation before Use Before powering on the machine and after removing the outer packaging, it is important to complete the following preparation steps: 1.Ensure proper placement of the machine. 2.Remove any fixed sheet metal from the machine. 3.Confirm that the power-on and startup actions are normal, and ensure that the 1.
  • Page 4 When moving this machine, please make sure that more than 2 people carry it. Do Ensure that the machine is normal in appearance and stable in place, and observe that not push the cover to move the machine or the cover may be deformed. Be sure to the power supply voltage of the machine shows 220V and that it matches the local hold the stress part of the frame power supply voltage.
  • Page 5 PintX Control Software description: 7. Machine software installation 1. Software download and precautions. Computer configuration requirements and lP Settings: Download the PintX control software from the USB flash drive package with machine or the installation guide's website, and then compress it and use it directly. Note: lt is System version: The OS must be Windows 7.Windows 8.
  • Page 6 Serial Function Description Name Number Add to Add the files to be printed to the print list, and you print queue can add all the files you want to print. Refresh the currently specified PRN file The original preview file of the current PRN will be Re Preview deleted first and then regenerated Refresh all PRN files in the current file.
  • Page 7 The print control interface includes print task, history , task preview and task Hitory, select the historical task and right-click, as shown below: information. Select a task among the “print task” and right-click to pop up a menu. As shown below: Function Description Serial Number...
  • Page 8 The working properties have the following functions: Serial Name Function Description Number X origin Start position in X direction of print task Y origint Start position in Y direction of print task Area print Size of area print job in X direction width Serial Function Description...
  • Page 9 3.1.3.Parameter settings: Serial Name Function Description Number The parameter settings are shown as follows: You can set the color bar position as left color bar, position right color bar, both sides color bar, and turn off color bar. Color width Width of the color bar lmage The space between the color bar and the printed...
  • Page 10 Serial Serial Name Function Description Name Function Description Number Number Rip date Three mode: 4+W+U, 6+W+U,8+W+U, Flash Flash before printing to prevent the nozzle from color Select the corresponding mode according to befor drying. You can set the number of flashes mode your RlP software output.
  • Page 11 The description of multi-layer printing pictures is as follows. 3.1.4. Print calibration: Click Print Calibration in the menu bar to enter the calibration interface, as shown in the figure below: Serial Function Description Name Number It is named according to different material names to save add to Select the current parameters after changing materials...
  • Page 12 If there are discontinuities or gaps in the test strip, it means there is a blockage and Serial Function Description Name needs to be cleaned until the nozzle reaches its optimal state. Number Introduction to verticality calibration function: It is named according to different material names to save add to the current parameters after changing materials Click "Verticality Calibration"...
  • Page 13 Print to the right twice more The picture above shows the normal situation of the nozzle When the nozzle surface is parallel to the horizontal plane, if the printed vertical line tilts to the left or right, it means that the inside of the nozzle is high on the inside and low on the outside, When the stepper is calibrated, the reference line and the printing line are or low on the inside and high on the outside.
  • Page 14 There are two parts, left and right. Introduction to heterochromatic calibration function: Overlap at the position of 0, indicating that it has been calibrated.as shown below: Click "heterochromatic Calibration" and the system will print out a heterochromatic calibration pattern, as shown below: The left picture below shows the calibrated situation, and the uncalibrated situation is as shown on the right.
  • Page 15 The following figure explains in detail (unit: micron) Serial Name Function description Number 1.Select the color sequence, which needs to correspond one-to-one with the colors 1.On the coiler, write the paper take up wheel diameter. printed on our keypad. Paper feeding 2.
  • Page 16 Serial Serial Function Description Functionalspecifications Name Name Number Number Reference Stop after print The car stops where the print is finished Read the base voltage set in the nozzle board voltage Return origin After printing, the car returns to the starting Platform after print position...
  • Page 17 3.1.6.Advanced settings: Communication Interface: Software settings: Serial Function Description Name Number Display There are three language options: Simplified Chinese, Serial Function Description Name language English and traditional Chinese Number No feedback within a certain period of time recv timeout Select printer Select the printer model you want Basic There are two ways to display after the software is opened:...
  • Page 18 Network printing: The version information mainly displays the version number of the motherboard program and the version number of the main dynamic library in the printing software. The specific display is as follows： Serial Function Description Name Number The RlP software side needs to set the sending port to data port Printing Information: 127.0.0.1...
  • Page 19 3.1.8 Quit Serial Function Description Name Close the printer software. Number <3.2>. Shortcut adiustment window: The left and right arrow keys can move the up and down arrow keys of the trolley head position left and right, and the middle hand mark key of the material position can be Serial Function Description...

  • Page 20: Troubleshooting Common Problems

    4. When the machine is not in use, please turn it on once a day and print test strips. It is recommended to replace it every 3 months. lf the ink of the test strip is broken, automatic cleaning is required to ensure that the test strip is normal.
  • Page 21 Problem overview: The above problem is that a single color is missing. Generally, the head voltage is not transmitted normally Common problems include: head board, head line, and print head However, it cannot be ruled out that Solution: a single ink is not supplied normally. 1.
  • Page 22 Solution: Ink cannot be extracted during cleaning 1. Please clean the head first, and then print a test strip to observe whether the 1. Pour a little cleaning fluid into the cap. During cleaning, observe whether the color mixing situation improves. lf not, Check whether there are ink stains on ink pump can pump the cleaning fluid into the waste ink bottle.

  • Page 23: Fault Description

    2. lf all the nozzles of the print head and the cap are misaligned, loosen the four 10. Fault description black screws as shown in the picture below, and then fine-tune the position of the ink station. The power-on self-test is normal, but when the left and right keys are pressed, the carriage can only move to the left and cannot move to the right.
