- Page 1 Drive Low Voltage AC Drives User’s Manual Relay Output Extension Module OREL-01...
-
Page 2: Safety
Safety WARNING! All electrical installation and maintenance work on the drive should be carried out by qualified electricians only. WARNING! The drive and adjoining equipment must be properly grounded. WARNING! Do not attempt any work on a powered drive. After switching off the mains, always allow the intermediate circuit capacitors 5 minutes to discharge before working on the drive, the motor or the motor cable. -
Page 3: Table Of Contents
Table of Contents Safety ............2 Use of Warnings and Notes . -
Page 4: Installation

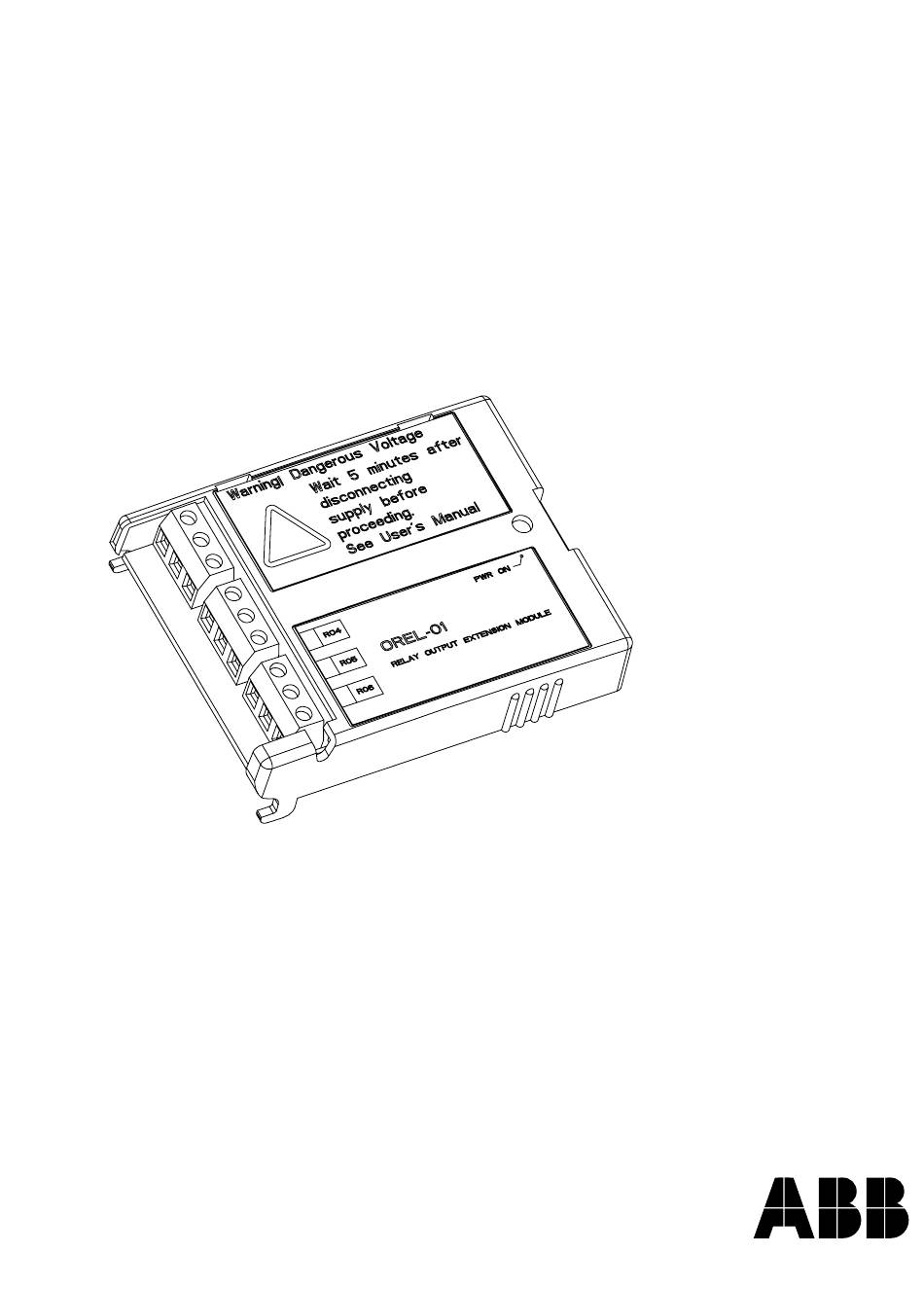

Installation Preparing for Installation The OREL-01 Module The Relay Output Extension module (OREL) is an interface for connecting three relay outputs to an ACS550 or ACH550 drive. Module Layout Warning Sticker Green LED Relay 4 Relay 5 Relay 6 X0051 Compatibility The OREL-01 is compatible with all ACS550 and ACH550 drives. -
Page 5: Installing The Module
Installing the Module Delivery Check The option package contains: • OREL-01 module • Warning stickers in several languages • This manual Mounting WARNING! Follow the safety instructions given in this guide and in the ACS550 or ACH550 User’s Manual. To mount the OREL-01 module: 1. -
Page 6: Apply Power
Wiring Use 0.5 to 1.5 mm (20 to 16 AWG) cable with an appropriate voltage rating for digital signals. 1. Refer to “Terminal Designations” on page 6 and connect control wires to the OREL-01 module. Terminal Designations Use the following table for reference when wiring terminals. Identification Hardware Description RO4C... -
Page 7: Start-Up
Start-Up To configure the operation of the relays added using the OREL-01 module: 1. Power up the drive. 2. Use the control panel on the drive and set the parameters for relay outputs 4 to 6 in Group 14 – Relay Outputs. Refer to the drive’s User’s Manual for parameter descriptions, and for instruction on the control panel operation. -
Page 8: Diagnostics
Diagnostics Diagnostic LED There is one diagnostic LED on the OREL-01 module. If the OREL-01 is properly installed, the green LED lights when the drive is powered up. If the LED does not light within 5 seconds after power-up, there is no communication with the drive. -
Page 9: Technical Data
Technical Data Dimensions Module dimensions are: Ref. 46.4 36.2 X0053 Enclosure Degree of Protection The module is mounted inside the drive enclosure. Refer to the drive’s rating. Ambient Conditions The module is mounted inside the drive enclosure. Refer to the drive’s requirements.
