Summary of Contents for SUNTREE SWJ6E-22

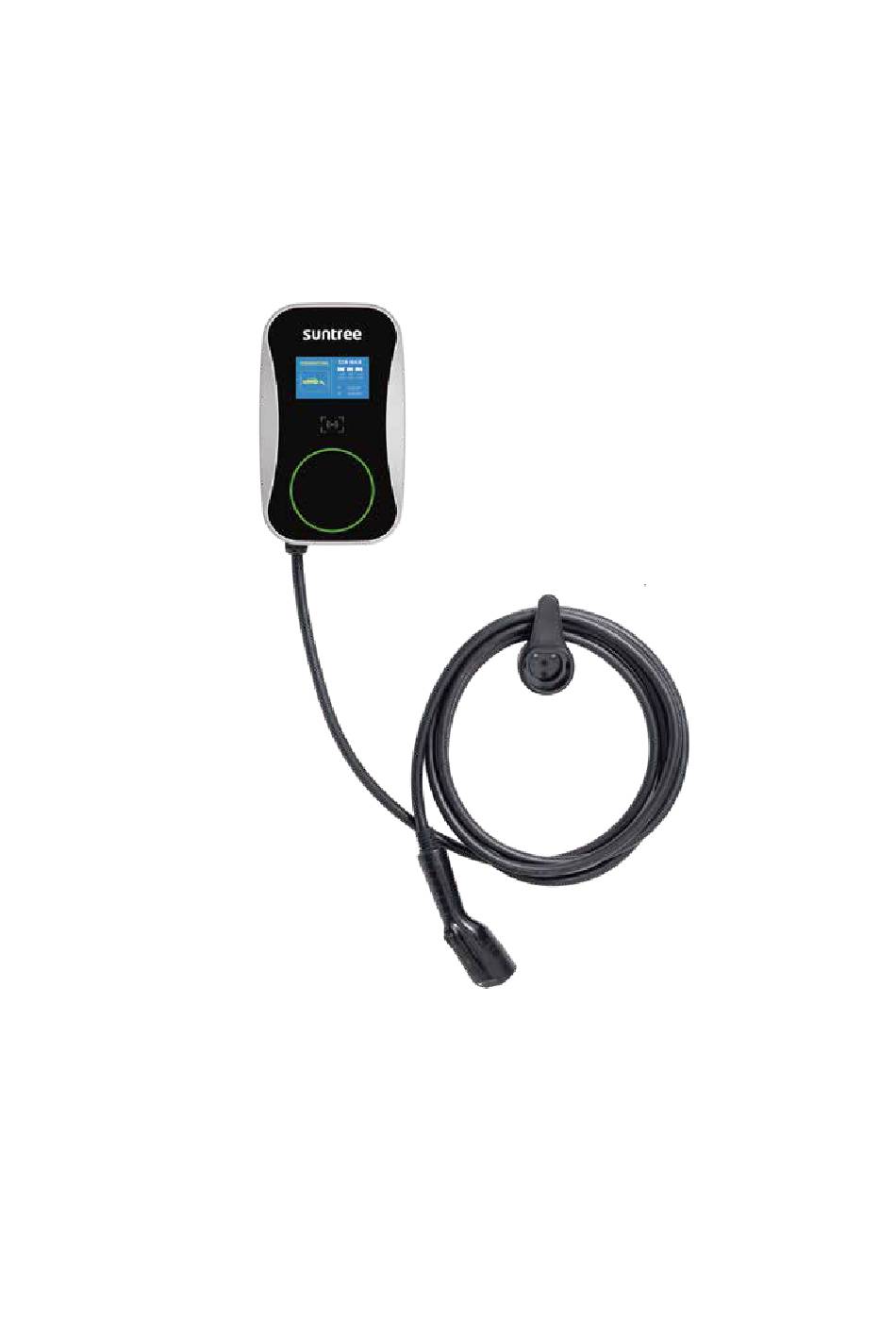

- Page 1 ELECTRIC VEHICLE CHARGER SERIES: SWJ6E-22/32 SWJ6E-11/16 READ AND SAVE THESE INSTRUCTIONS Installer: Leave this manual with the homeowner...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS USER INSTRUCTIONS PARAMETERS SHEET PRODUCT DESCRIPTION PRODUCT DIMENSIONS LCD DISPLAY INDICATOR LIGHT FUNCTION INSTRUCTION INSTALLATION INSTRUCTIONS UNPACKING TOOLS/MATERIALS REQUIRED ATTACHMENT BEFORE INSTALLATION INSTALLATION LOCATION WARNING CONNECT ELECTRICAL WIRING INSTALLATION INSTALLATION OF THE CABLE HOLDER THE INSTRUCTION OF THE CABLE HOLDER SET THE CHARGER POWER INSPECTION APP INSTRUCTION... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. Keep the instruction book for future reference. All the information in the manual is valid for the charging station model in this manual. -
Page 4: User Instructions
USER INSTRUCTIONS PARAMETERS SHEET Model SWJ6E-11/16 SWJ6E-22/32 Item Datasheet Power Supply 3P+N+PE Rated Voltage AC380 ~ 415V 50/60Hz Input Rated current Max 16A (6-16A adjustable) Max 32A (6-32A adjustable) Output Voltage AC380 ~ 415V 50/60Hz Maximum Current Max 16A (6-16A adjustable) -
Page 5: Product Description
USER INSTRUCTIONS PRODUCT DESCRIPTION 1. Front cover 2.LCD display 3.Working status indicator 4.Function button 5.RFID area 6.Charger holder 7.Charging lead and connector PRODUCT DIMENSIONS 200mm 121mm... -
Page 6: Lcd Display
USER INSTRUCTIONS LCD DISPLAY Product Status CONNECTING CHARGING **A MAX **A MAX FAULT 32A MAX STANDBY Rated Current **A MAX 220V 220V 220V 220V 220V 220V 220V 220V 220V 0.08A 0.08A 0.08A 0.08A 0.08A 0.08A 0.08A 0.08A 0.08A 00:00:00 00:00:00 P: 0.0 kW P: 0.0 kW P: 0.0 kW... -
Page 7: Installation Instructions
USER INSTRUCTIONS TELECOMMUNICATION This product complies with the OCPP1.6J service protocol. After you set the IP and ID by the APP and the network cable is connected to the Ethernet interface, the product will automatically connect to the server to realize backstage control. -
Page 8: Attachment
INSTALLATION INSTRUCTIONS ATTACHMENT Installation location There should be a certain space around the machine for installation and future maintenance Wall or other fixed objects that cannot be moved SUGGESTION: a (side gap): minimum250mm WARNING: 1.This unit must be grounded. 2.This unit should be installed by a licensed electrician in accordance with local buildingand electrical codes and standards, climate conditions, safety standards, and all applic-able codes and ordinances. -
Page 9: Warning
INSTALLATION INSTRUCTIONS WARNING ▲ Make sure that the power source is turned off before installing the unit. ▲ Manufacturers and distributors are not responsible for any loss or related responsibilities caused by any incorrect installation. ▲ The installer shall be responsible for the loss and damage of the product, system or property caused by improper installation. -
Page 10: Installation
INSTALLATION INSTRUCTIONS INSTALLATION 1. Take the unit and remove the 4 screws on its fixing bracket (The unit is integrated with the fixing bracket and needs to be disassembled first). Keep the screws and fixing bracket for subsequent use; 2. Remove the 6 fixing screws on the front shell and the rear shell, save the screws for subsequent use; Note: Reference Fig.1 for steps 1 and 2. - Page 11 INSTALLATION INSTRUCTIONS Wiring cap 50mm Punch hole position Inlet wire mode 1 Drill position Punch hole position Inlet wire mode 2 Cable Drilling direction Fig. 4 Drilling direction * NOTE: Product installation details with OCPP1.6J service agreement. Refer to “Network Connection guide”. ** NOTE: Product installation details with power management.
- Page 12 INSTALLATION INSTRUCTIONS Power management function installation guide 1. Drill holes according to fig. 5. 2. Use the accessory sealing rubber to fix the CT wire. 3. Insert the sealing part into the housing body, as fig. 8, thread the CT wire into the sealing part, one hole corresponds to one CT wire (if the product is single-phase, just need to use a sealed wire hole, and the other two do not need to be pierced broken), after the CT cable is inserted, reserve enough length to connect to the CT interface;...
- Page 13 INSTALLATION INSTRUCTIONS EV charger group management model guide IMPORTANT: 1.Before using the charger group management model, you need to know the Main charger and the subordinate charger. Main charger:The only charger in the charger group management connected with CT clamp and set as 1300 charger number in APP.
- Page 14 INSTALLATION INSTRUCTIONS Main charger and Middle subordinate charger： Tail subordinate charger Resistor Tie line fig.11 fig.12 terminal block 1.Install the terminal block to the track and insert the tie line into RS485 socket. 2.Main charger and Tail subordinate charger：Crimp both ends of the resistor(120Ω)and the tie line wire to the terminal block(with First/Last tags-fig.7),refer to fig.11.
- Page 15 INSTALLATION INSTRUCTIONS MODE 1 a1. Check the cable gland parts as shown in Fig. 14. a2. Pass the gasket and the main body through the opening hole of the shell and lock it with a nut, as shown in Fig. 15 a3.
-
Page 16: Installation Of The Cable Holder
INSTALLATION INSTRUCTIONS IMPORTANT NOTE: It is the responsibility of the installing engineer to satisfy themselves, that all cable terminations throughout this product are secure and tight and have not become loose, strained, or disconnected during transit and/or installation. After the front and rear shells are installed, check whether there is a loose gap between the front and rear shells. -
Page 17: Set The Charger Power
13AWG (copper) Circuit breaker (Amps) DIP switch position Earth check SWJ6E-22/32 DIP switch position Earth check SWJ6E-11/16 INSPECTION 1. Check that this unit must be grounded (Earthed). 2.Make sure you are satisfied that the installation is complete and is in a safe condition. -
Page 18: App Instruction
APP INSTRUCTION REGISTER Step 1. Application platform download Tuya app Register **-********** Step 2-4: Input the account login Step 2-1: Click Register Step 2-3: Input verification code. Step 2-2: Check the app password and click done to agreement, enter the registered complete the registration. - Page 19 APP INSTRUCTION 2. The charger needs to be connected to WiFi. If the WiFi signal is weak or absent, the charger will not receive the signal or delay the connection. Therefore it is recommended to add an enhancement device for WiFi receiving signal near the charger.
-
Page 20: Operate Introduction
APP INSTRUCTION OPERATE INTRODUCTION INTERFACE INTRODUCTION Edit Charging current Single charging Charging power energy consumption On/off Charging state HOME Charging mode Charging mode CP state Record Cumulative charging Setting Energy consumption record energy consumption Charging voltage The house currently total current... - Page 21 APP INSTRUCTION Edit (1). You can set the charger name by clicking " " (2). Offline Notification: When the charger is powered off, it will prompt the device to be offline on the home screen. (3). Share Device: You can share the APP with others by share device. Shared users only have the using right and cannot share the APP again.
- Page 22 APP INSTRUCTION Charging mode 1.manual mode: If Manual mode set “On”, you can not control by APP. If Manual mode set “Off”, you must Enable charging by the APP or RFID card. 2. ECO(For solar): Optional (only applicable to products with solar loads), the model products in this manual are invalid.
- Page 23 APP INSTRUCTION Setting 1. Input instruction: RFID No.: You can input RFID card number for RFID product.Enter RFID number to bind the card; GNDON: Monitoring the ground wire； NOTE: This function is effective when "3” DIP switch is in the "On" position GNDOFF:Cancel monitoring the ground wire;...
-
Page 24: Fault Interface
APP INSTRUCTION FAULT INTERFACE If device has fault, you can view the cause of the failure in the center of the main interface of the APP. CARD REGISTRATION Setup the RFID card for the customer Go in to settings, Input orders. Using the number on the front of the card enter the letters and numbers followed by RFID. -
Page 25: Maintenance
MAINTENANCE The charger enclosure does NOT need to be opened for routine maintenance tasks. 1. Regularly clean the external surfaces of the equipment with a damp cloth In order to avoid damaging the surface smoothness, do not clean the internal parts with soluble substances and alcohol. - Page 26 Product Disposal In accordance with European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in national law, used electrical devices must be collected separately and recycled in an environmentally responsible manner. Ensure you return your used device to your dealer or obtain information regarding a local, authorised collection and disposal system.
