RV Option
The RV (raw vibration) option includes a 100mV/g ±20% additional output. The accelerometer frequency range is
1 Hz-1 kHz, maximum amplitude of 15 g-pk. Data collectors or analyzers can use this vibration signal for further
analysis. This output is extended to the RVVO (Raw Vibration Velocity Output) option, which integrates the signal
to a value of 100 mV/IPS (±20%).

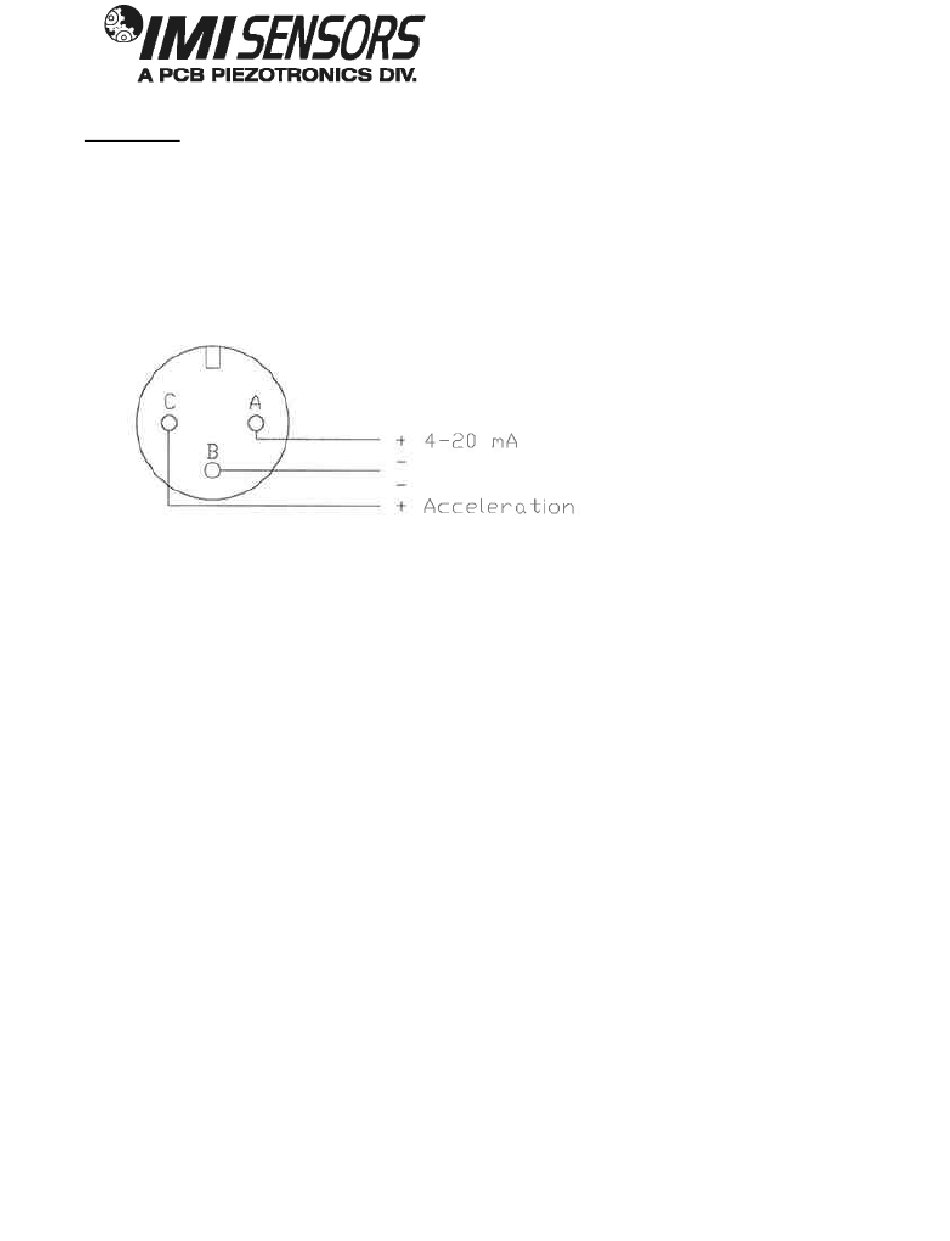

Figure 3 – RV and RVVO wiring
For integral cable sensors:
RED
BLACK
GREEN
WHITE
Note:
-The RV and RVVO Signal Negative has to be isolated from any grounding. If this terminal is grounded, the 4-
20mA loop will short, causing no output.
-The RV and RVVO output signal is ideally suited for use with portable battery powered data collectors or
analyzers.
4-20mA Positive
4-20mA Negative (same as green)
–RV and RVVO negative (same as black)
+RV and RVVO positive
