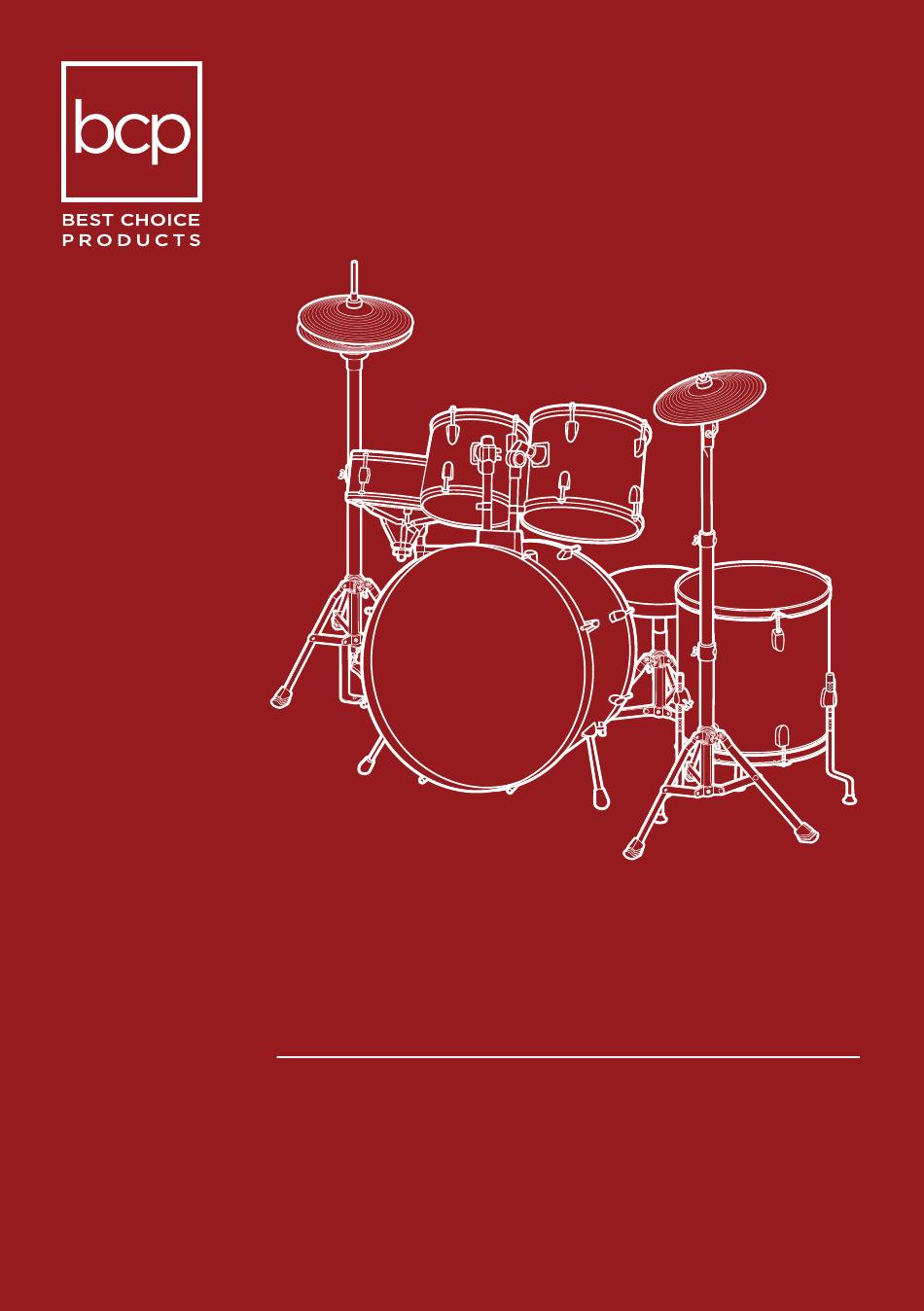

- Page 1 INSTRUCTION MANUAL 5-Piece Beginner Drum Set SKY1263 + SKY9192 + SKY9193 + SKY9194 + SKY9195 SKY9196 + SKY9197 Ver. 2...
-
Page 2: Tools Required
NOTICE Please retain these instructions for future reference. • Do not stand on or use any part of this item as a step ladder. • Firmly secure all bolts, screws and knobs before use. • Reconfirm that all bolts, screws, and knobs are secure every 90 days. •... - Page 3 PARTS BASS LEG SMALL TOM SHELL SMALL TOM RIM 2 PCS 1 PC 2 PCS SMALL TOM SKIN LARGE TOM SHELL LARGE TOM RIM 2 PCS 1 PC 2 PCS LARGE TOM SKIN TOMS ARM FLOOR TOM SHELL 2 PCS 2 PCS 1 PC FLOOR TOM RIM...
- Page 4 PARTS CYMBAL CYMBAL STAND HI-HAT CYMBALS 1 PC 1 SET 1 SET HI-HAT STAND SNARE SNARE STAND 1 SET 1 PC 1 PC BASS PEDAL STOOL STOOL LEGS 1 PC 1 PC 1 SET DRUMSTICKS 1 SET...
-
Page 5: Product Assembly
PRODUCT ASSEMBLY Place two part C bass skins and two part B bass rims on the part A bass shell. Attach the bass rims/skins with sixteen part 1 long tension rods, sixteen part 3 washers, and sixteen part 4 claw hooks. Do not overtighten the tension rods... - Page 6 PRODUCT ASSEMBLY Place two part G small tom skins and two part F small tom rims on the part E small tom shell. Attach the tom rims/skins with ten part 2 tension rods and ten part 3 washers. Place two part J large tom skins and two part I large tom rims on the part H large tom shell. Attach the tom rims/skins with ten part 2 tension rods and ten part 3 washers.
- Page 7 PRODUCT ASSEMBLY Insert two part K toms arms into the top of the bass drum and tighten the knobs to secure them. Slide the small tom and large tom onto the arms and tighten the knobs to secure them.
- Page 8 PRODUCT ASSEMBLY Place two part N floor tom skins and two part M floor tom rims on the part L floor tom shell. Attach the tom rims/skins with twelve part 2 tension rods and twelve part 3 washers. Insert three part O floor tom legs. Tighten the screws to secure the legs.
- Page 9 PRODUCT ASSEMBLY Build the part Q cymbal stand. Remove the wingnut, washer, and felt pad from the cymbal arm. Place the part P cymbal, then replace the felt pad, washer, and wingnut. Use the wingnuts to adjust the cymbal height.
- Page 10 PRODUCT ASSEMBLY Unfold the legs of the part S hi-hat stand. Position the pedal and hook the wires into the holes to lock it in place.
- Page 11 PRODUCT ASSEMBLY Extend the rod upwards and slide the upper tube over it. Tighten the wingnuts to secure the assembly.
- Page 12 PRODUCT ASSEMBLY Slide on the washer, felt pad, and part R hi-hat cymbal with the concave side up. Remove the bottom nut and felt pad on the hi-hat clutch. Insert the clutch into the other hi-hat cymbal concave side down, then replace the nut/felt pad. Slide the clutch onto the rod and tighten the wingnut to secure it.
- Page 13 PRODUCT ASSEMBLY Unfold the part U snare stand. Place the part T snare and tighten the knob to secure it in place.
- Page 14 PRODUCT ASSEMBLY Loosen the wingnut on the part V bass pedal and clamp it to the rim of the bass drum. Tighten the wingnut to secure it. Build the part X stool legs. Place the part W stool and tighten the wingnuts to secure it in place.
- Page 15 TUNING THE DRUMS The tension rods on a drum double as tuning keys. Use the drum key to tighten and loosen the tension rods until each one is tightened equally. NOTE: Tighten one tension rod at a time, then tighten the rod diagonally across from it. This will maintain even tension on the drum skin and produce a fuller sound.
-
