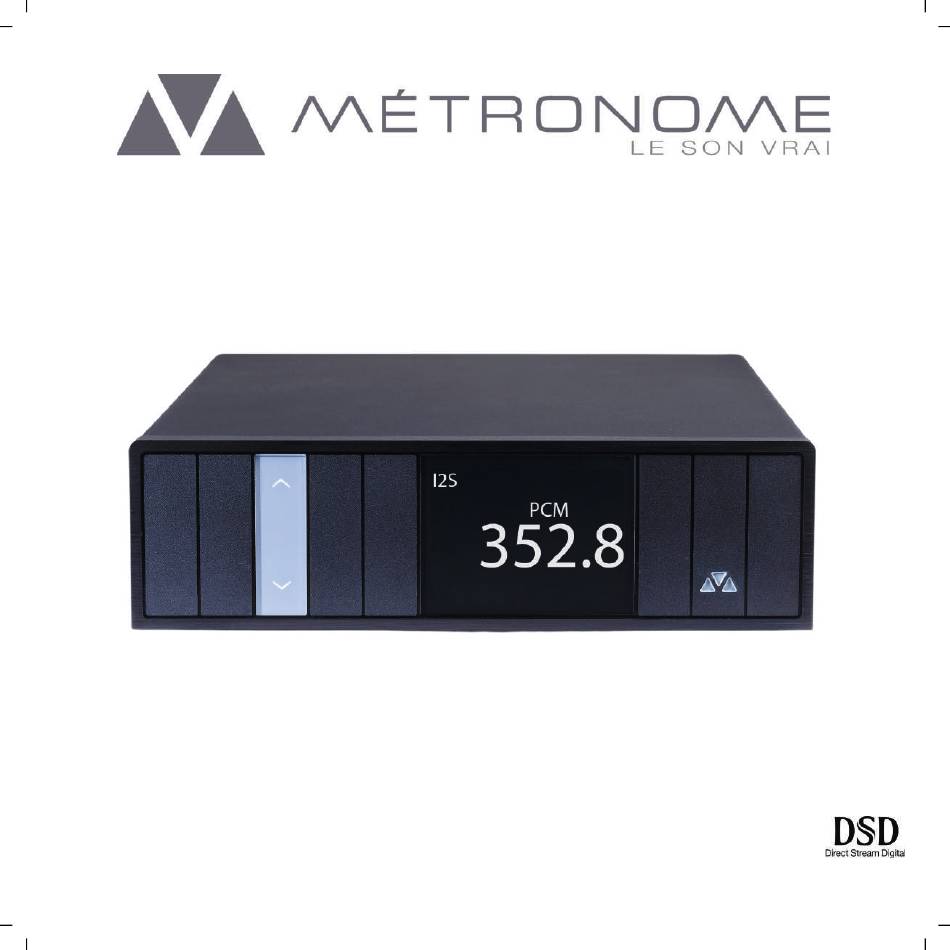

- Page 1 D/A CONVERTER DIGITAL SHARING CONVERTER MINI Owner's Manual...
- Page 3 Jean Marie CLAUZEL Owner and Designer...
-
Page 5: Table Of Contents
Contents Playing music Accessories Using the device Power on Important information Safety information Position the device Technical description Technical specifications Functions Glossary Front panel Information on the front panel Screen interface Trouble shooting Rear panel Tips for a quick diagnosis Information on the rear panel Some possible failures Connections... -
Page 7: Accessories
Important Playing Technical Trouble Contents Functions Connections Annexes information music description shooting Accessories Make sure you find the following accessories inside the box : Power cable Manual... -
Page 8: Important Information
Important Playing Technical Trouble Contents Functions Connections Annexes information music description shooting Safety information To avoid the risk of fire or electric shock, keep the unit in a dry place. Do not expose it to moisture. Before connecting and operating the product, please read this manual carefully. The power supply generates voltages that are dangerous to the human body : Do not insert any metal objects through the top cover or on the vents, or on the connectors. -
Page 9: Functions
Important Playing Technical Trouble Contents Functions Connections Annexes information music description shooting Front panel Information on the front panel Touch keys Display Touch : Change the input 3,5 inch screen visual interface Touch : A long press on the down key + a tap on the up key lowers the brightness. -
Page 10: Screen Interface
Important Playing Technical Trouble Contents Functions Connections Annexes information music description shooting Screen interface Input Sample Rate Info : Show the active input Info : Actual playback sample rate... -
Page 11: Rear Panel
Important Playing Technical Trouble Contents Functions Connections Annexes information music description shooting Rear panel Information on the rear panel Switch Mains socket Switches the device ON and OFF Device power supply Digital inputs Analog outputs RCA x2 & XLR x2 S/PDIF, AES/EBU, Toslink, USB &... -
Page 12: Cables To Purchase
This connection can be made using AES/EBU, S/PDIF, Toslink, I2S or USB cable. (See Rear panel, Page 5). Connecting a speaker or pre-amp You can connect DSC Mini analog outputs to any compatible pre-amp/amp or speakers. This connection can be made using RCA or XLR cable. (See Rear panel, Page 5). -
Page 13: Using The Device
Once the device is switched on, you can use the touch-sensitive buttons on the front panel to change the inputs to listen to your music. Turn off the DSC Mini after use (O). Make sure that all cables are connected before switching on your device. -
Page 14: Technical Specifications
Important Playing Technical Trouble Contents Functions Connections Annexes description information music shooting Technical specifications General Power consumption: 65 Watts Storage environment: -20°C to +65°C Operating temperature: +5°C to +35°C Dimensions (L x H x W): 250 x 70 x 250 mm 4,8 kg Operating humidity: 5 % to 90 % (fog-free) - Page 15 Important Playing Technical Trouble Contents Functions Connections Annexes description information music shooting Display Size: 3,5 inches Touch screen: Resolution: 320 x 240 Fuse Current range: Speed: Timed (T) Size: 5 mm x 20 mm Positionning: Under the mains socket Glossary PCM: Pulse Code Modulation.
- Page 16 Important Playing Technical Trouble Contents Functions Connections Annexes shooting information music description Tips for a quick diagnosis If you notice a fault with your device, check first : All connections are correct ? Is the device used as described in the user manual ? If this device is not working properly, please check the symptoms in this section.
-
Page 17: Warranty
Warranty Métronome Technologie guarantees the components of your Métronome® DSC Mini for 2 years from the date of purchase. In the event of product failure, Métronome Technologie will repair, readjust and, if necessary, replace the equipment provided that all the clauses of the warranty are respected. - Page 18 @metronometech metronometechnologie metronometechnologie...
