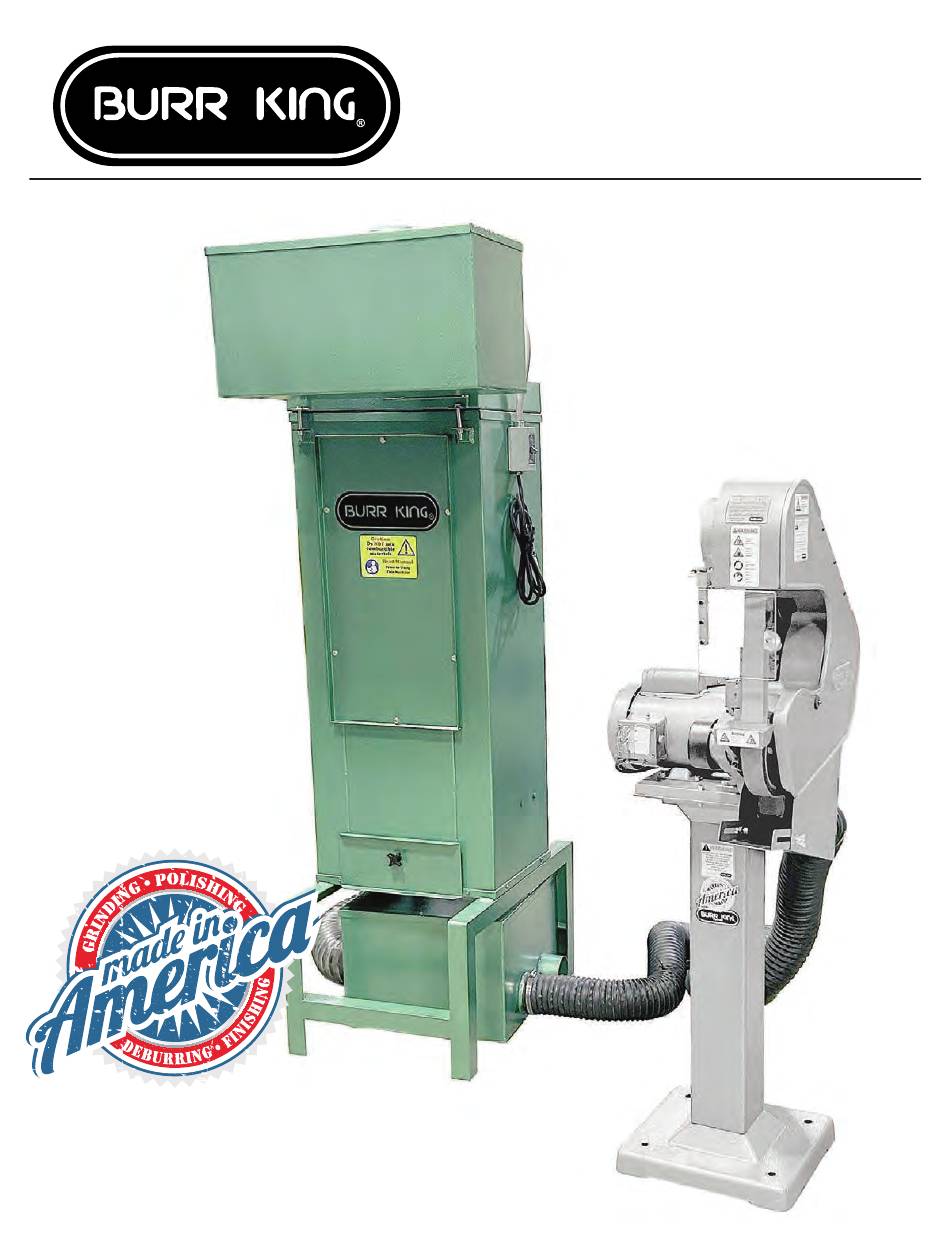

BK-100
Dust Collector
Burr King Mfg. Co., Inc
1220 Tamara Lane
Warsaw, MO 65355
www.burrking.com
(660)438-8998 • 800-621-2748
Fax (660)438-8991
BK-100
Instruction
Manual
April 2025

Advertisement

loading
Need help?

Need help?

Do you have a question about the BK-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for BURR KING BK-100

  • Page 1 Burr King Mfg. Co., Inc 1220 Tamara Lane Warsaw, MO 65355 www.burrking.com (660)438-8998 • 800-621-2748 Fax (660)438-8991 BK-100 Instruction Manual BK-100 Dust Collector April 2025...
  • Page 2 April 2001 The BK-100 dust collection system is designed to accept up to two dust inlets. Dust is drawn into the BK- 100 by its onboard air suction system. The air stream and dust is passed through a filter bank where a significant amount of the dust is removed from the air stream.
  • Page 3 TABLE OF CONTENTS Dry Air Dust Bags Contaminated Dust Bags Changing/Installing Dust Bags Blower Replacement Parts list Dust Bag Assembly Dust Bag Installation...
  • Page 4 DRY AIR Air entering a bag house type dust collector must be dry and oil free. DUST BAGS Dust bags are made from a dacron or shaker felt filter material. Dirty Dust Bags: As air containing particles is drawn through the dust bag, the particles are trapped on the outside of the bag.
  • Page 5 CONTAMINATED BAGS The word "contaminated" is being used to describe a dust bag that has become coated with a material outside the normal material the collector is collecting. The usual materials that contaminate a dust bag are water, oil, or grease. 3.1.1 A very small amount of either water, oil, or grease will contaminate all of the bags in the dust collector.
  • Page 6 CHANGING FILTER BAGS Remove plenum or plenum panels above dust bags. Release clamps holding dust bags, than remove bags. INSTALLING NEW DUST BAGS Replace foam seal around bag openings before putting in new bags. (See page 7 for dust bag installation.} Replace dust bags and reinstall clamps.
  • Page 7 BLOWER (Cont.) Standard rotation furnished is for clockwise rotation looking down at motor side. All motors must be overload protected when connected or warranty is void. The belt drive blowers are furnished with three (3) phase totally enclosed fan cooled motors at 1750 R.P.M.
  • Page 8 DUST COLLECTOR REPLACEMENT PARTS LIST PART NO. DESCRIPTION 3000F 11" X 39" DUST BAG - - - - BLOWER (Quoted Upon Request)
