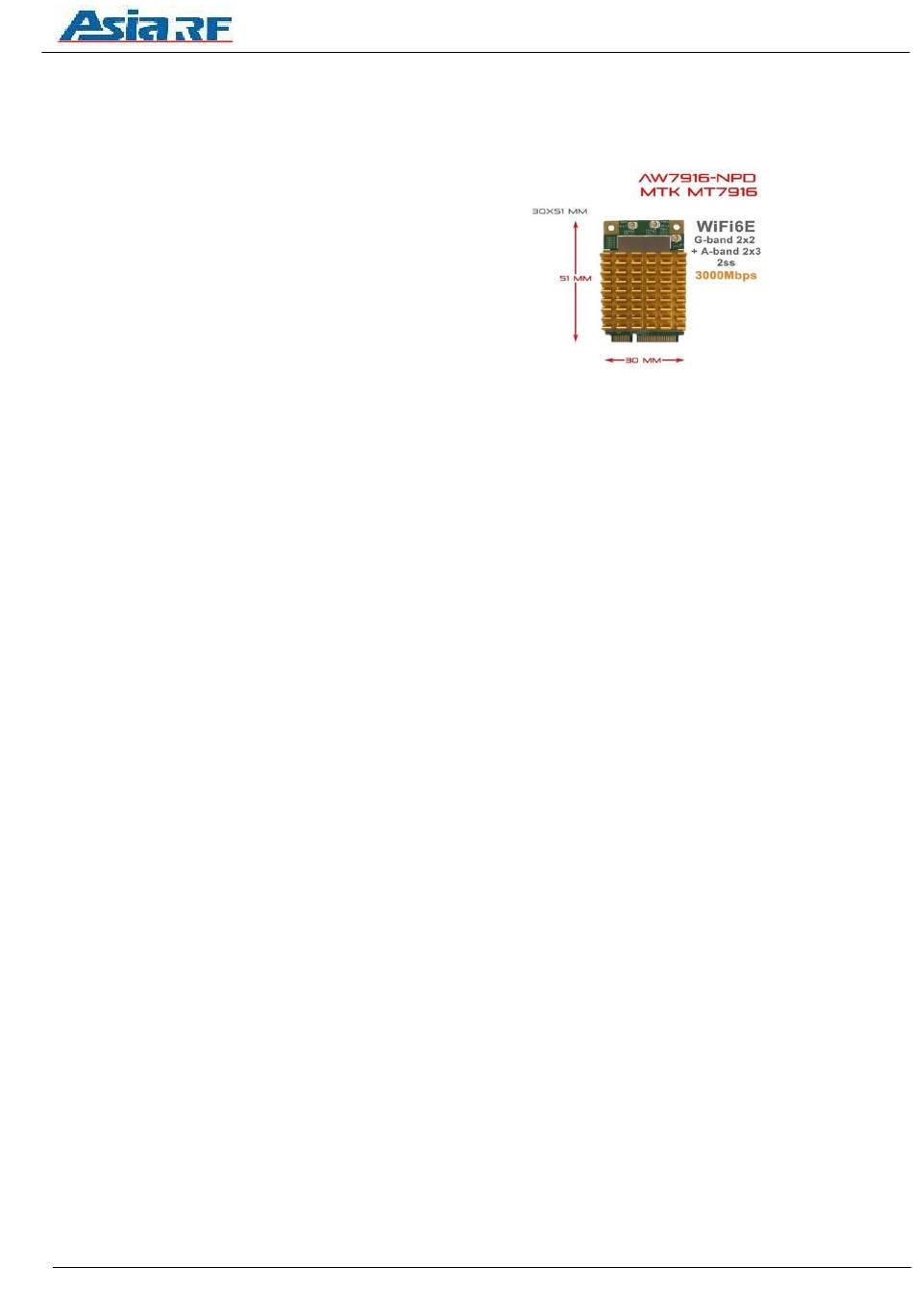

WiFi6E 3000 802.11ax G-band 2T2R and A-band 2T3R 2ss
Dual Bands Dual Concurrents mPCIe Card AW7916-NPD
DESCRIPTION
AW7916-NPD is a WiFi6E 3000 highly advanced Mini PCIe Module with G-band 2T2R + A-band
2T3R 2ss Dual Bands Dual Concurrents (DBDC) based on Mediatek MT7916AN.
The capabilities enabling up to 3Gbps performance, supports 3×3 with 2 Spatial Streams for either
5 or 6GHz at maximum 160MHz bandwidth and 2×2 with 2 spatial streams for 2.4GHz at maximum
40MHz bandwidth. The additional 3rd antenna can be used for zero-wait DFS and/or MRC (up to
1024-QAM) for extra downlink (Rx) performance. Integrating the FEM radio into the Mediatek
Filogic 630 platform yields integration advantages of smaller size and lower BOM costs for device
makers.
Advanced access point features include up to 24 users (OFDMA), support of MU-MIMO clients,
512 MAC entries, 16 MBSSID and support for all Wi-Fi Alliance Wi-Fi 6 Release 2 features.
In addition, the chipset includes hardware-based Wi-Fi offload engine to alleviate the router AP
from Wi-Fi connection-related processing, improving whole platform energy efficiency and
performance. Filogic 630 can also be combined with Filogic 830 SoC platform for Tri-band Wi-Fi
6/6E solutions for Routers and Repeaters.
