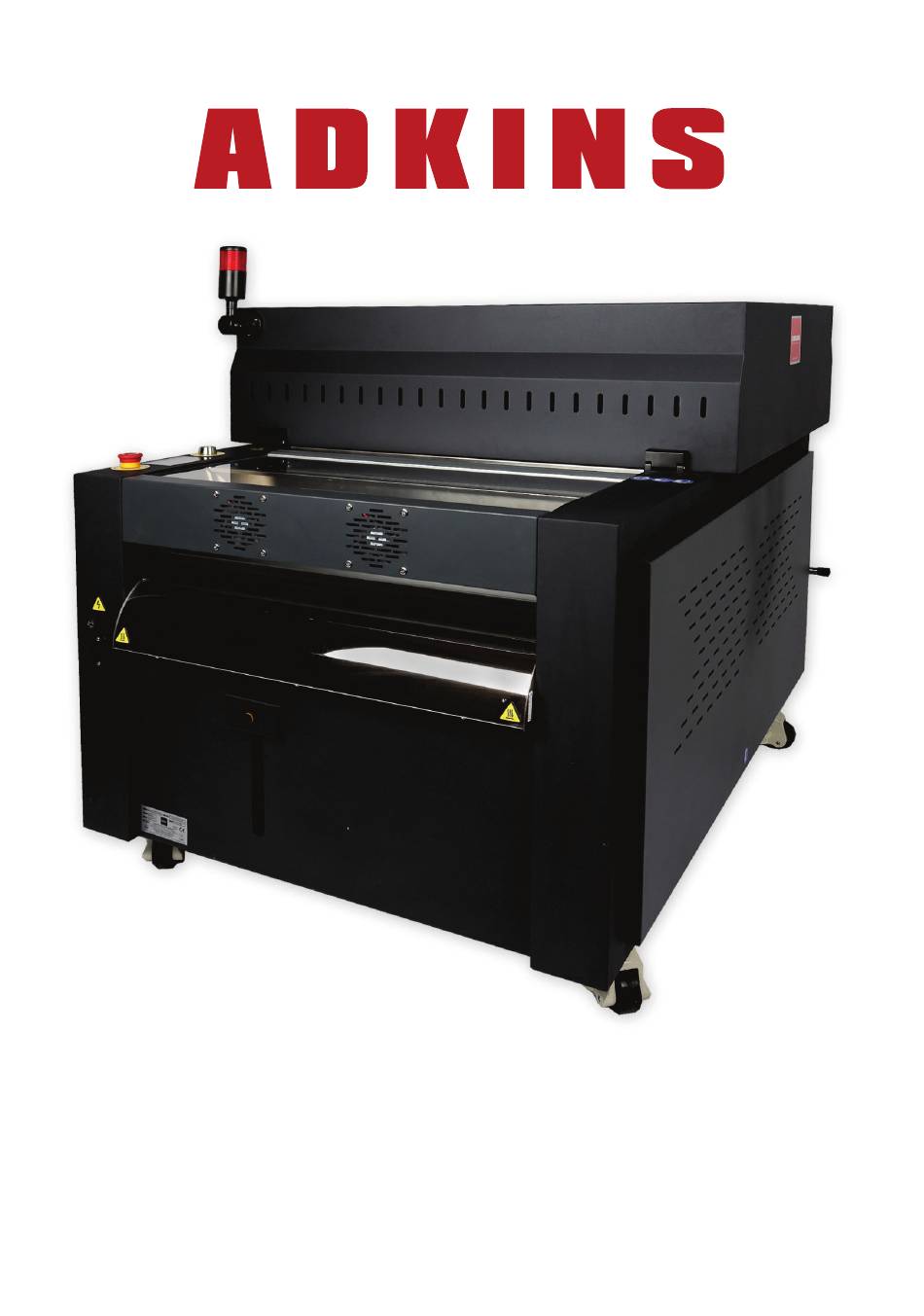

- Page 1 Adkins DTF Inline Compact 600 Shaker Cure Unit User Manual Revision 1.0...
-
Page 2: Table Of Contents
Contents Introduction Caution Requests Product Appearance Safety Precautions IV Symbols IV-V VII-VIII Unboxing and installation Working Environment VIII VIII Place of installation VIII Temperature of working environment Chapter 1 - Before use Part Names and Functions Fronts Rear side Operating panel 1-4,5 Front & Rear Sensor Powder box Powder shaking blade Lamp Tension sensor Chapter 2 - Basic Operations Workflow Turning the Power On/OFF Turning the power on Turning the power off Loading Media Adjusting Sensor height Loading roll media Pouring power Pouring power Auto mode Switch to auto mode Conditions of AM Stick the media Link mode... - Page 3 Contents Chapter 3 - Maintenance Guidelines Routine Maintenance Before use After use Oven cleaning filter box Regularly replace the filter. How to replace filter box Replacement cycle Kind tips Chapter 4 - Warranty and Declaration Warranty and Declaration Design Change Warranty Declaration of Conformity Installation Risk Assessment Machine Risk Assessment Parts Diagram 4-7,8...
-
Page 4: Introduction
Introduction Introduction Product Appearance Thank you for purchasing the Adkins Inline Compact 600 Powder Shaker Cure Unit (hereafter called, Please note that the descriptions of the product “the machine”). appearance in the operating manual are primarily based on the product you actually receive. Unauthorized reproduction of any portion of this While ensuring the main functionality of the product document is strictly prohibited. remains unaffected, we continuously make subtle © Adkins adjustments to the product appearance to achieve All Rights Reserved. Copyright optimal design. These adjustments aim to enhance the overall look and feel of the product, providing you with an improved user experience. Caution In the case of significant changes, we will promptly notify you through the appropriate channels, ensur- Adkins is in no way liable for any ing that you stay informed about the latest product damages whatsoever (including but not limited to information. lost profit, indirect damage, special damage, or other monetary damage) arising from using or inability to use the machine, except as provided in Adkins Machines Intended Use warranty provisions. This applies even if Adkins has been informed of the possibility of such damages. Automatic powdering and fixation machine for For example, we cannot be held liable for any loss of direct-to-film transfer medias. Applying and media or other materials from using the machine, nor melting the fixing powder to the ink on the transfer are we liable for any indirect loss caused by printed film to produce a garment decoration transfer. -
Page 5: Safety Precautions
Safety Precautions Safety Precautions Warnings and precautions in use Symbols WARNING In this manual, symbols indicate and explain precautions. The indicated symbol varies depend- ing on the nature of the precaution. Make sure you ·The set of power cables provided with the machine is for use only with the machine and cannot be used understand the meaning of each symbol and use with other electrical devices. Do not use any power the machine safely and correctly. cables other than the ones provided with the machine. Failure to observe these instructions may result in fire or electric shock. Example of symbols • Do not attempt to modify the cable, and avoid damaging or breaking it. Placing heavy objects on, heating, or pulling the cable may damage it, which may result in fire or electric shock. Meaning • Avoid use in humid places. Additionally, do not pour water on the machine. Failure to observe these instructions may result in fire, electric shock, or failure. Failure to observe the instructions • Use of the machine under an abnormal condition, as given with this symbol may result in when it is emitting smoke or fumes, may result in fire or electric shock. Turn off the power switch immedi- death or serious injuries to person- ately, and then be sure to unplug the machine from nel. Be sure to read the precaution the outlet. Once you have confirmed that smoke is no longer being emitted, request repair from your dealer. carefully and use the machine Never attempt to repair the machine yourself. Doing so is hazardous. • Never disassemble or modify the machine. Failure to observe the instructions Failure to observe these instructions may ... -
Page 6: Precautions In Use
• Regularly (at least once a year) unplug the cable and remove any dust on or near the power plug. Failure to remove dust may result Precautions and notes in fire. • Do not use a voltage other than the indicated voltage. • Before plugging in the machine, check the WARNING outlet supply voltage and circuit breaker capacity. Plug each cable into a power source with an independent breaker. If you plug Consumable items more than one power cable into outlets that share the same circuit breaker, it may trip the • Machine consumables, including hot melt powder and transfer film. • The machine's safety level is based on the use of Adkins recommended transfer film. To ensure operational safety, please use the Notes on maintenance breaker. transfer film recommended by Adkins. • If hot melt powder is brought from a cold place to a warm place, please let it sit at room temperature for at least three hours before • Pay close attention to ventilation and be use (refer to product info for full details). sure to wear safety glasses, gloves, and a • Do not leave consumables exposed to the air mask when dealing with unused hot melt for an extended period; if left open for a long powder, airborne particles may enter the time, they may not transfer properly. If not in eyes or mouth. Please take precautions. use, seal and store them. • Store consumables in a cool, dark place. • Keep consumables out of reach of children. -
Page 7: Installation Precautions
• Store transfer film in a bag. Wiping off dust accumulated electrocution hazard, hazardous voltage). on the media will adversely affect the media due to static electricity. • When leaving the workshop after working hours, do not “Hot Surface” and it is used to warn people to leave any media on the roll hanger. Dust will adhere to the media. take care to avoid coming into contact with a hot surface. WARNING “Crushing Hazard” and it is used to warn people Handling of Media to take care to avoid coming into contact with moving parts during operation. • Use recommended media. Please use the media recom- mended by Adkins to ensure reliable, high-quality transfers. • Be aware of media expansion and contraction. Do not use Installation precautions media that has just been opened. The media may expand or contract depending on the room temperature and humidity. Open the package and allow it to adjust to the place of use places with uneven places exposed to for at least 30 minutes before loading it in the machine. surfaces direct sunlight • Do not use curled media. Not only does this cause media jamming, but it also affects transfer quality. Straighten any media that is significantly curled before use. When rolling up regular-sized coated media for storage, make sure the coated side is facing outward. • Set the heater temperature to suit media characteristics. • Do not leave media loaded over extended periods with the ... -
Page 8: Unboxing And Installation
Unboxing and installation Unboxing and installation Unboxing Installation Before installing the machine, ensure that the The heater side panels are fixed by screws required amount of space is available in the place for transportation and need to be under consideration. The place of installation must removed, and the filter door connection checked. have enough space for the machine as well as transfering tasks. See overleaf. Remove the screw marked (A) that is securing the side panel. Once the screw is removed, gently lift the side panel (C) upwards to remove the When moving the boxed item, only insert and panel lift where the markings are instructing. Proceed to remove the side panel from the opposite side, by removing the screw (B). Place the box in a position that is flat and level, and that you have sufficient space to unbox and remove the machine from the palette. Remove the securing transport screws. It is recommended that 4 people lift the sides and lid upwards and over the machine, taking care not Once both sides are removed, remove the to damaged/scratch the outer surfaces. two screws that are holding the hood cover in place. There is one screw either side located The protective wrapper can be removed from the as below. machine. Within the packaging are two ramps which can be used to allow the machine to be maneuvered off the pallet. It is recommended that 4 people maneuver the machine off the pallet and into position. -
Page 9: Working Environment
Unboxing and installation Unboxing and installation Working Environment Installation Places of installation Before installing the machine, ensure that the Position the machine in front of the printer to required amount of space is available in the place be used. The printer and machine has to be under consideration. The place of installation must perfectly aligned for the film to run true. have enough space for the machine as well as transfering tasks. If there is any mis-aligmnment the media can move or track off while in operation causing Total issues. Height Depth Width Weight Use a tape measure to check that the front of 1430mm 980mm 1140mm 192kg the machine is aligned to your printer. Using a spirit level, if possible (with adjustable feet) ensure the printer is level first. Then level the machine by lowering the rubber feet, via the red adjuster cog. Connect the plug to a suitable plug socket (do not use an extension lead) and switch on via the green on/off button. If the system does not turn on, make sure that the emergency stop is not engaged. Ensure the power lead is not going to come in to contact with any moving parts or any heat source and does not constitute a trip ... -
Page 11: Part Names And Functions
Before use Part Names and Functions Front... - Page 12 Before use Rear...
-
Page 13: Operating Panel
Before use Operating Panel Use the operating panel to specify print settings or operate the machine. Mode Main Heat Pre Heat Emergency Stop Auto Powder Temp Temp Press to quickly and immediately halt the operation of Manual the machine in case of an emergency or potential hazard Heat Roll Vacuum Feed Link Dusting Shaking Intelligent touch display Shows the following items: 1 Seven functions Auto/manual mode Heat temperature (flashes with target temp whilst heating) Pre temperature (flashes with target temp whilst heating) Main Power Information Powder- Powder weight The detailed introduction of Press to turn on / turn off the (IO) Input/Output setting each interface machine Setting Main menu 1. Function introduction Details... -
Page 14: Auto/Manual Mode
Before use 2. Temperature Icon Details Show the current temperature of oven . Heat Temp (flashes with target temp whilst heating) Pre Temp Show the current temperature of pre-heater (flashes with target temp whilst heating). Show the current capacity of powder in the weight sensor, Powder display showing a minimum value of 0 and a maximum value of 100 （ 0-100). 3. Settings The parameters may require adjusting depending on the film, powder and print settings you use. Suggested initial settings given below as a guideline: 1) Shaking Strength Feed Frequency of the powder blade intensity. Shaking Heat Speed Strength Temp 2) Heat Temperature Operating/target temperature of the oven. 3) Feed Speed Pre Heat The speed of media feeding when in manual mode and partial auto mode. Temp 4) Pre Temperature Operating temperature of the pre heating area. - Page 15 Before use Front & Rear Sensor Heat Lamps The front sensor is used to detect whether the machine has fed in media. The machine is equipped with one front sensor, located beneath the media pre-heat. Front sensor The upper and lower double rows of high-efficiency The upper and lower double rows of high-efficiency The front sensor has adjustable height levels, heating lamps (lower row is under the feeding belt) heating l s (low is der the feeding belt) lt) allowing users to adjust it to the appropriate position based on their needs. Combined with our unique intelligent heating solution, which offers efficient power consumption. Tension Sensor R R ear r sensor The tension sensor is uesd to maintain and adjust the tension of the printing material, besides It helps maintain print quality, facilitate powder transfer, and ensure accurate printing positioning by adjusting the tension of the printing material. After the transfer film is finished baking, it will exit the oven. The rear sensor is used to detect whether the transfer film has completed baking and emerged from the back. Powder Box Tension sensor Located beneath the take-up roller. The powder boxʼs main functions include Powder Storage， powder supply and convenient powder replacement, ensuring a continuous supply of powder and high-quality printing results.
- Page 16 Before use Dual Vacuum Rollers Through dual suction from the front and back, the paper feeding accuracy is ensured during the film transportation process, allowing it to better adhere to the conveyor belt. This ensures even baking of the transfer film. Once the film is detected by the rear sensor, the front vacuum roller will stop suction but continue to transport the film, while the rear vacuum roller will maintain both suction and transport functions. Powder Shield The powder shield's function is to prevent powder from splashing. If it is opened while the machine is running, the powder shaking function will stop. Once it is closed, the powder shaking function will resume.
- Page 17 Chapter 2 Basic operation About this chapter This chapter describes information about basic operation, such as how to load printing media, how to use auto mode and link mode correctly. Auto mode Workflow Switch to auto mode Turning the Power On/OFF Turning the power on 2-5,6 Conditions of auto mode Stick the media Turning the power off Link mode Emergency stop Loading Media Adjusting Sensor height Loading roll media Pouring power Pouring power...
-
Page 18: Basic Operation
Basic Operation Workflow See [ turning the power on/ o ff] Turning the power on/off Page 2-3. See [ Loading power ] Page 2-4. Loading media See [ Loading powder ] Page 2-5. Pouring powder See [Auto mode ] Page 2-5,2-6. Auto mode See [Auto mode ] Page 2-7. Link mode Please notice The machine used to demonstrate the workflow in this section differs from the actual model, but the overall workflow sequence remains the same. -
Page 19: Turning The Power On/Off
Basic operation Turning the power on/off Emergency stop Turning the power on Mode Main Heat Pre Heat Auto Powder Temp Temp Manual Heat Roll Vacuum Feed Link Dusting Shaking Mode Main Heat Pre Heat Auto Powder Temp Temp Manual 1) Press to activate Heat Roll Vacuum Feed 2) Rotate the button to the right to exit Link Dusting Shaking the emergency stop state WARNING Press to turn on the machine... -
Page 20: Loading Media
Basic Operation Loading Media Loading the film/media Feed the media through to the vacuum Adjusting the sensor height roller Ensure that the media is placed over the vacuum roller, keeping it fed straight, and hold in place. Adjusting the sensor height Infinite adjustable height levels Turn on the ʻVacuumʼ function Activate the vacuum roller to hold the film in place. Loading the film/media Wait until the media is long enough The media length should generally reach close to the ground， see below. Media Mode Main Heat Pre Heat Auto Powder Temp Temp Manual Vacuum Vacuum Heat Roll Vacuum Feed Link Dusting Shaking Shaking Feed the media into the shaker Adjust the position of the powder holders The entrance is as shown in the diagram, above ... -
Page 21: Auto Mode
Basic operaton Auto mode Pouring powder Pouring powder Switch to Auto Mode Turn the “Heat” function on. (15 minutes Adding powder in to the powder box . of preheating is recommended before moving to step 2). Mode Main Heat Pre Heat Auto Powder Temp Temp Manual Heat Vacuum Feed Roll Link Dusting Shaking Powder tray Opened adhesive powder can be stored in the powder tray to facilitate easy extraction for the next powder addition. Switch the auto function on Mode Auto Manual Conditions of Auto Mode For Auto Mode to function the following conditions are required. The machine needs to sense film is present (at the front film sensor) Film Film If the icon is red, it indicates that ... - Page 22 Basic operation Conditions of Auto Mode Loading film/media to take up The powder weight sensor has Wait for the film to pass through the oven. reached approx 80% or more Mode Main Heat Pre Heat Auto Powder Temp Temp Manual If the value is up to 80 or more, it Heat Vacuum Feed Roll Feed indicates that the powder capacity meets the Auto mode condition. Link Dusting Shaking Allow enough slack on the film The temperature has reached the target/set temperature Mode Main Heat Pre Heat Auto Powder Temp...
-
Page 23: Link Mode
Basic operation Link mode Link mode When the machine is in full Automatic Mode Link mode can only be activated upon completion of the transfer operation in auto mode. Turn on Link Mode Mode After the full automatic mode is activated, the feeding belt Main Heat Pre Heat starts moving backward, the vacuum roller stops operating, Auto Powder Temp Temp and the tension take-up system gradually pulls and tightens the media through the oven. Manual The vacuum roller operates intermittently allowing for the film to self align and ensure straight feeding. Heat Vacuum Feed Roll Link Dusting Shaking After the print has finished roll off 500mm then cut the film. Top View Allow the film to feed through and cure After initiating the link mode, the machine will automati- cally complete the final heating work, ensuring the last media in the oven is fully baked until there is no media left inside. The system continues to pull the media through as the front sensor is deactivated in link mode. ... -
Page 24: Chapter 3 Maintenance Guidelines
Chapter 3 Maintenance Guidelines About this chapter This chapter is about some daily maintenance guidelines of the machine, properly maintaining the machine can extend its lifespan. Routine Maintenance Before use After use Oven cleaning Replace the filter regularly How to replace the filter box Replacement cycle Tips ... -
Page 25: After Use
Maintenance Guidelines Oven cleaning Due to the large amount of glycerin in the composition of DTF white ink, it is normal for oil and water condensation to appear on the metal surface after the machine is used. In order to prevent condensation from accumulating on the machine during long-term use, please follow the maintenance instructions below. Before use Mode Main n Heat Pre e Heat Auto Powder Temp Temp Manual Heat Vacuum Feed Roll Link Dusting Shaking It is recommended to turn on the Heat functionfor 15 min before starting each work session to enhance the curing effectiveness. Open the machine oven and wipe off the oil Open the machine oven and wipe o insidethe oil guide groove. -
Page 26: How To Replace Filter Box
Maintenance Guidelines Replace the filter regularly Replace the flter cartridge regularly according to the working condition, refer to the filter cartridge replacement guideline (as below): 1. How to replace the filter box Loosen the screws securing Pull the old filters out and nstall Open the Smoke purifer. to reveal the filters the new filters (Carbon at the bottom). 2. Replacement cycle Suggested replacement cycle Use status High frequency use 1.5 months Low frequency use 3 months If there is smoke Replace the filter immediately 3. Tips The filter element is a consumable item and needs to be replaced regularly. The filter element replacement cycle is not the quality shelf life of the product. Due to different use scenarios and frequency of use, the filter element replace- mentcycle varies. The specific use is based on the actual use. Replace the filter element in a timely manner to ensure that the smoke filter reaches the best working state. -
Page 27: Chapter 4 - Warranty And Declaration
Chapter 4 Warranty and Declaration About this chapter This chapter is about the warranty and declaration of the machine ts lifespan. Warranty and Declaration Design Change Warranty Declaration of Conformity Installation Risk Assessment Machine Risk Assessment 4-7,8 Parts Diagram... - Page 28 Warranty and Declaration 1. Design Change With the policy of constant improvement and/or modification to meet changing conditions, the right is reserved to change the design and/or specifications at any time without prior notification, and therefore specifications may vary and not be in accordance with this manual.
-
Page 29: Guarantee (Limited Warranty)
Warranty and Declaration 1. Guarantee (Limited Warranty) Adkins warrants that the machine is free from defects in material and workmanship for a period of 12 months from the date of supply. The machine comes with a one-year warranty on parts. This warranty covers all parts to repair the defects, except when damage results from misuse or abuse, accident, alteration or negligence or when a machine has been improperly installed. If a machine is covered by warranty should need to be returned to the factory for examination and repair, if on-site component replacement is not possible Adkins will make every effort to repair the customers machine. The warranty will only be effective when Adkins authorises the original purchaser to return the machine to the factory and only when the product upon examination has proven to be defective. Should in our opinion any part of this machine be defective in materials or workmanship, it will be replaced or repaired free of charge, provided that the press has been installed and operated in the correct manner and not subjected to misuse. In exceptional circumstances If Adkins authorise a replacement machine, the warranty of the replacement machine shall expire on the anniversary date of the original machines invoice to the customer. In order for this warranty to be effective, no return of machine or parts may be made without prior factory authorisation. (This will exclude any travelling and/or carriage costs which will be charged at our discretion). This is the sole warranty given by the company; there are no warranties, which extend beyond the description on the face hereof. The seller disclaims any implied warranty of merchantability and/or any implied warranty of fitness for a particular purpose; the buyer agrees that the goods are sold “as is”. The sole purpose of the machine is to be used for DTF, outside of this use Adkins does not warrant the machine. The entire risk as to use, quality and performance of the machine lies with the customer. (No claim of any kind shall be greater than the sale price of the product or part to which the claim is made). In no event will Adkins be liable for any injury, loss or damage, including loss of profits, destruction of goods or any special, incidental, consequential or indirect damages arising from the use of the machine or accompanying materials. This limitation will apply even if Adkins or its authorised agent had been advised of the possibility of such damage. ... - Page 30 Micha Ja...
-
Page 35: Parts Diagram
Parts Diagram... - Page 36 Parts Diagram Diagram Number Adkins Basic/Manual Description Part code Ammount Per Machine Diagram Number Adkins Basic/Manual Description Part Code Ammount Per Machine Vacuum Roller Motor COM600-SUCT Fuse (15amp) EE-51-016-C Temperature Detection Line 1201-05-08-012 Shaking Safety Switch EE-40-001-A Stepper Switching Board EE-15-056-A...
