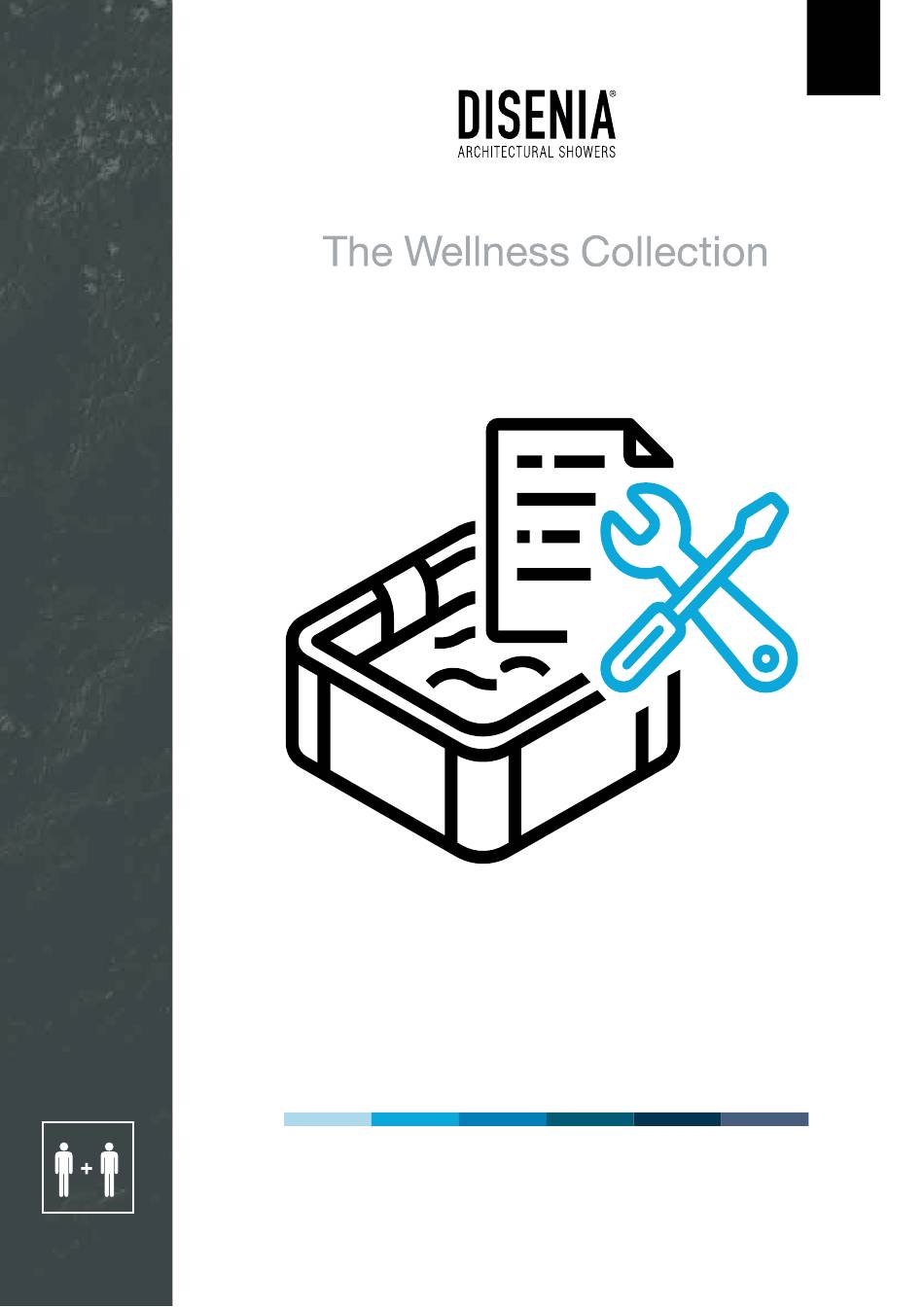

Page 1 M I N I S P A INSTALLATION MANUAL Warranty valid only if the manual is followed.
Page 2 M I N I S P A...
Page 3 INDEX SAFETY WARNINGS PAG. 1 UNPACKING AND POSITIONING THE MINI POOL PAG. 4 ELECTRICAL AND HYDRAULIC CONNECTIONS PAG. 8 FIRST START-UP PAG. 10 KEYBOARD MANUAL PAG. 12 INSTALLATION OF SIDE PANELS AND COVER PAG. 24...
Page 4: Handling Warnings
This manual is intended for the installer and NOT for the end user of the mini pool. The information provided is essential for safe installation. DISENIA Srl declines any responsibility if: HANDLING WARNINGS The mini pool is delivered carefully packaged in a wooden crate to ensure better protection during transport.
Page 5: Installation Warnings
INSTALLATION WARNINGS CONNECTION WARNINGS Before connecting the equipment, ensure that the electrical and hydraulic systems comply with the regulations in force in the country of use. For a proper and safe electrical connection, the equipment must be connected: RISK OF ELECTROCUTION...
Page 6 EXTRAORDINARY MAINTENANCE WARNINGS IMPORTANT: ATTENTION:...
Page 7 The mini pool is delivered carefully packaged in a wooden crate to ensure better protection during transport. be careful not to scratch the equipment. ATTENTION After unpacking the mini pool, carefully check its integrity before proceeding with installation: IF ANY ANOMALIES ARE FOUND, DO NOT PROCEED WITH INSTALLATION. IMMEDIATELY CONTACT DISENIA SRL.
Page 8: Disposal Of Packaging Materials
Stretch Film Low-density polyethylene Adhesive Tape Polyvinyl chloride Straps Polypropylene CHOOSING THE INSTALLATION LOCATION For proper preparation of the installation environment, consult the technical sheets provided at the time of purchase or download them from our website www.disenia.it. Necessary Preparations...
Page 9: Outdoor Installation
Optimal water values: OUTDOOR INSTALLATION Safety INDOOR INSTALLATION...
Page 10 BUILT-IN INSTALLATION Consult the technical sheets provided at the time of purchase or download them from our website www.disenia.it. INSTALLATION WITH SIDE PANELS Freestanding Version Consult the technical sheets provided at the time of purchase or download them from our website www.disenia.it.
Page 11 ELECTRICAL CONNECTIONS General Specifications WARNING: HYDRAULIC CONNECTIONS WATER INLET 3/4" WATER OUTLET 1"...
Page 12: Water Supply Characteristics
WATER SUPPLY CHARACTERISTICS The company assumes no responsibility for problems related to the use of non-potable water or the absence of a water softener. Water Hardness Water Alkalinity Water pH – What does pH indicate? PH SCALE ACIDIC NEUTRAL ALKALINE...
Page 13: First Start-Up
Balance the water. Three parameters influence this: total hardness, alkalinity, and pH value. Rule no. 2 Effectively disinfect the water. Disenia recommends bromine tablets because they are as effective as chlorine but odorless. The tablets dissolve slowly, ensuring continuous disinfection. Bromine tablet dosage is carried out in the filter compartment.
Page 14 The basic rules are Rules 1 and 2: maintaining the correct pH value and proper disinfection of the water. Do not use trichlor tablets as they could damage the spa components and cause burns and irritation to the skin and mucous membranes. The use of these substances voids the manufacturer’s warranty. Always cover the spa (but not during the mixing of chemical additives) with the insulating cover to reduce heating time and minimize operating costs.
Page 15: Control Panel
KEYPAD MANUAL CONTROL PANEL Hydromassage WHIRLPOOL Temperature Adjustment Water level in the tub: insufﬁcient or absent Menu Scrolling WHIRLPOOL WHIRLPOOL Technical Menu Display Hydromassage AIRPOOL Water level in the tub: insufﬁcient or absent CHROMOTHERAPY WHIRLPOOL Chromotherapy off WHIRLPOOL Chromotherapy on Display: Clock Date...
Page 16 MEANING OF NOTIFICATION ICONS The notification icons show the activity of functions that are not directly activated from the keypad’s main screen. ICON DESCRIPTION Filtration in operation. The system is programmed with two ﬁltration cycles. The schedule and duration of ﬁltration are programmable. First ﬁltration phase active.
Page 17 If all functions (WHIRLPOOL and AIRPOOL) are off, after 30 seconds of inactivity the keypad enters Standby mode. Standby is not activated from the Technical Menu. In this mode, the display shows the DISENIA logo and the keypad LEDs remain off.
Page 18: Technical Menu
Temperature Adjustment To access the water temperature setting screen, press the appropriate button. Water temperature in the tub Set temperature adjustment Set temperature If the adjustment buttons are not pressed for 3 seconds, the keypad returns to the main screen. If the adjustment buttons are not pressed for 3 seconds, the keypad returns to the main screen.
Page 19 TECHNICAL MENU – Limited Access CLOCK SETTING P. 8 DATE SETTING P. 8 FILTRATION SETTING (TIME SLOT F1) P. 8 FILTRATION SETTING (TIME SLOT F2) P. 8 P. 9 NIGHT SLOT (FN) P. 10 PERIMETER LIGHT TIME SLOT (LP) (in case of a minipiscina with perimeter ﬂoor lighting) WATER FILL ACTIVATION P.
Page 20: Setting Parameters
Per uscire dalla modalità Standby SETTING PARAMETERS Press the arrow keys (flashing in blue) to select parameters. To confirm the chosen parameter, press the green button. To confirm or exit the parameter settings, press the yellow button. CLOCK SETTING Select the screen and press the designated button to change the time.
Page 21 Start Start Stop Stop To exit the filtration time slot settings and return to the menu, press the yellow button. Operation: At the START time, filtration begins with a startup phase during which all WHIRLPOOL and AIRPOOL functions are alternated. Additional Filtration Additional filtration occurs upon shutdown (automatic or manual) of the WHIRLPOOL and/or AIRPOOL functions.
Page 22 Operation: The Night Slot (or Night Silence) is a time slot during which the following functions are disabled: Heater Filtration (F1 and F2) Additional Filtration User functions (WHIRLPOOL/AIRPOOL) can still be activated even if the Night Slot is enabled. PERIMETER LIGHT TIME SLOT (LP) Select the PERIMETER LIGHT TIME SLOT screen and press the designated button to set or modify the time slot for activating the perimeter LED light, which consists of 2 times:...
Page 23 Icon Description WHITE FILLING OFF BLUE FILLING ON ALARM Water level status: Icon Description The electronics also manage automatic reﬁlling in case of water loss LEVEL ABSENT (e.g., during daily use, evaporation, etc.). LEVEL PRESENT The Fill Alarm is indicated on the WATER FILL ACTIVATION screen by an alarm symbol at the top right and by the button LED in red.
Page 24: Eco Mode
ECO MODE Select the ECO MODE screen and press the designated button to enable or disable the mode. With ECO mode active, there is a limitation on load activation to reduce instantaneous electrical power consumption. PIN ACCESS SETTING Select the ACCESS PIN SETTING screen and press the designated button to change the 4-digit PIN: To change an individual digit, press the arrow keys (flashing in blue).
Page 25: Software Version
SOFTWARE VERSION Select the SOFTWARE VERSION screen to view the keypad’s software versions. FACTORY RESET Selec the appropriate screen and press the designated button to perform a factory reset. RESET To avoid accidental resets, conﬁrmation is requested. = YES = NO EXIT USER/TECHNICAL MENU Select the appropriate screen to exit the menu.
Page 26 MIN. MAX. Temperature Clock (Hours) Hours Clock (Minutes) Minutes Nighttime Mode (Hours) Hours Nighttime Mode (Minutes) Minutes Load Duration Minutes SUPER MENU with PIN – For use exclusively by Disenia and/or an authorized technician SET WATER LOADING DURATION EXIT MENU...
Page 27 INSTALLATION OF SIDE PANELS The installation of the side panels is simple:...
Page 28 INSTALLING THE COVER It is always recommended to use the thermal cover.
Page 32 Disenia srl CUSTOMER SERVICE ITALY via A. Carpenè, 21 Tel. + 39 0434 1822603 33070 Fax. + 39 0434 020013 Brugnera (PN) e-mail:info@disenia.it Italy www.disenia.it...
