EMC aevit Calibration Manual

Routine service calibration
Hide thumbs Also See for aevit:

Advertisement

Quick Links

Download this manual
Service Calibration Procedure
Routine Service Calibration
Procedure
Publish Date 4-2-25
For EMC Certified Dealers Only
Not For Distribution
26 Gabriel Drive • Augusta, ME • Phone: (207) 512-8009 • Fax: (207) 512-8049 •
www.aevit.com
Distributed By: Electronic Mobility Controls, LLC
Service Calibration Procedure

Advertisement

loading
Need help?

Need help?

Do you have a question about the aevit and is the answer not in the manual?

Questions and answers

Related Manuals for EMC aevit

Summary of Contents for EMC aevit

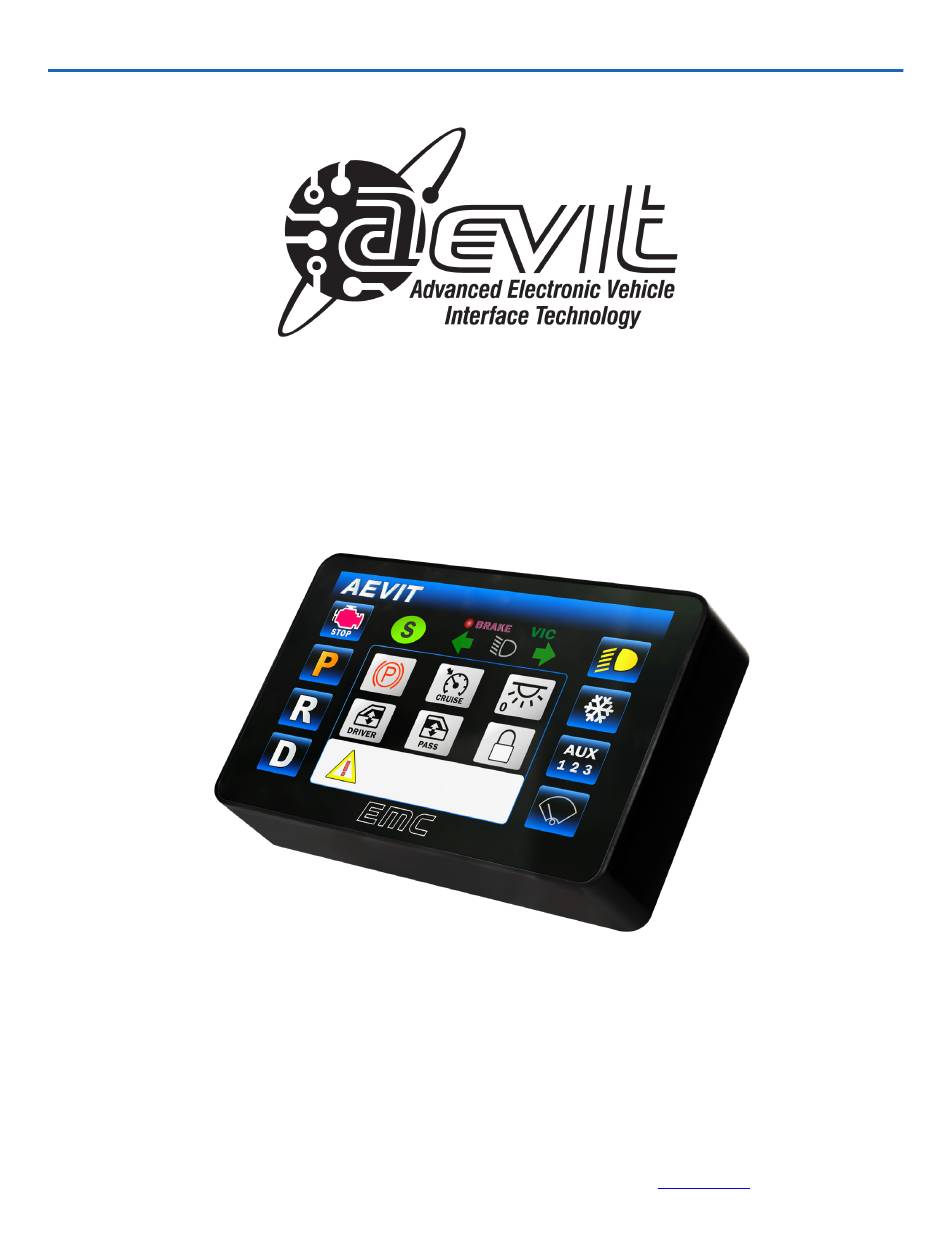

  • Page 1 Service Calibration Procedure Routine Service Calibration Procedure Publish Date 4-2-25 For EMC Certified Dealers Only Not For Distribution 26 Gabriel Drive • Augusta, ME • Phone: (207) 512-8009 • Fax: (207) 512-8049 • www.aevit.com Distributed By: Electronic Mobility Controls, LLC...

  • Page 2: General Information

    General Information WARNINGS WARNINGS, CAUTIONS CAUTIONS, AND NOTES NOTES Throughout this manual there will be three different colored boxes (Red, Yellow, and Gray) that will indicate different warning levels. These warnings are critical and should always be adhered to. WARNING: INDICATES A STRONG POSSIBILITY OF SEVERE PERSONAL INJURY OR LOSS OF LIFE IF INSTRUCTIONS ARE NOT FOLLOWED.
  • Page 3 Procedure When performing routine service maintenance, it is important to do the following: Gas/Brake Calibration Steering Calibration OBD Setup • Zero All • Zero All Offsets • Learn Motor Windings • Set Input Center • Set Input Center • Set Motor Center •...
  • Page 4 2. In the Gas/Brake Setup screen, use the Down arrow to scroll to the line labeled “Zero All”. Gas/Brake Setup Input Direction Standard Down Arrow Eval Direction Standard Set Input Center (Enter) Set Motor Center (Enter) Zero All Offsets Zero All (Enter) (Enter) Gas Curve...
  • Page 5 4. Scroll down to the line labeled “Set Motor Center” and press the Enter button. In the IMC, you should see the message “Command Processed”. Gas/Brake Setup Input Direction Standard Eval Direction Standard Set Input Center (Enter) Set Motor Center (Enter) Set Motor Center (Enter)
  • Page 6 For Wheel Input Only, skip to Step 10 for Joystick Input 6. In the Steering Setup screen, use the Down arrow to scroll to the line labeled “Zero All Offsets”. Steering Setup Set Turn Ratio Set Input Center (Enter) Set Motor Center (Enter) Zero All Offsets (Enter)
  • Page 7 7. Using the Up arrow, scroll up to the line labeled “Set Input Center”. If a wheel input device is connected, this will be detected by the system, and the black IMC will instruct you on the direction to rotate the AEVIT wheel until the center position is reached.
  • Page 8 P r e s s E N T E R t o C e n t e r CAUTION: CHECK THAT THE VEHICLE’S OEM WHEEL IS STRAIGHT. CALL THE EMC SERVICE DEPARTMENT IF THE WHEEL IS OFF BY MORE THAN 5 DEGREES FROM BEING STRAIGHT.
  • Page 9 P r e s s E N T E R t o C e n t e r CAUTION: CHECK THAT THE VEHICLE’S OEM WHEEL IS STRAIGHT. CALL THE EMC SERVICE DEPARTMENT IF THE WHEEL IS NOT STRAIGHT. Distributed By: Electronic Mobility Controls, LLC...
  • Page 10 12. Tap on the OBD Hot Key to access the OBD Setup screen. Steering Setup Set Turn Ratio Set Input Center (Enter) Set Motor Center (Enter) Zero All Offsets (Enter) Audible Feedback Joystick Band Joystick Band Hybrid 2 Hybrid 2 Full Steering Hot Key Zoom Steering...
  • Page 11 15. At the Home screen, reboot the AEVIT System by putting AEVIT to sleep, and waking it back up with the primaries enabled and engaged to confirm that there are no error messages. It is important that the primaries are enabled and engaged.
