CAEL 122009P Assembly Manual

Peak shape single truss carport
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
SHELTER
ASSEMBLY MANUAL
Normal Model # Carport 122009P

Advertisement

loading
Need help?

Need help?

Do you have a question about the 122009P and is the answer not in the manual?

Questions and answers

Summary of Contents for CAEL 122009P

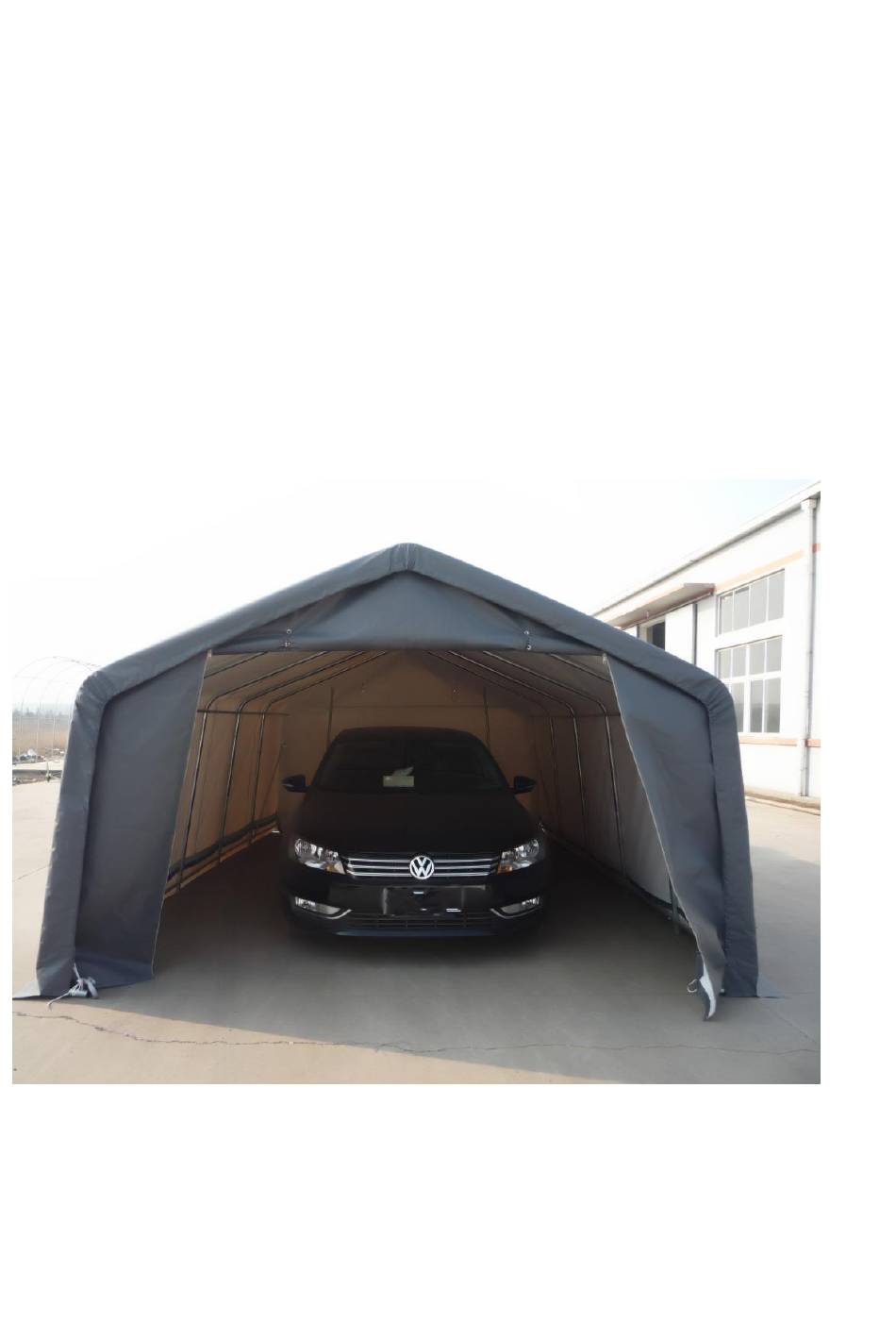

  • Page 1 SHELTER ASSEMBLY MANUAL Normal Model # Carport 122009P...
  • Page 2 1220089 Part List Part Code Description Roof Bent Tube Shoulder Bent Tube Stake Peg for back door frame Stake Peg for front door frame Stake Peg for middle arch frame Male Horizontal Connecting Tube Female Horizontal Connecting Tube Diagonal Bracing Tube Duckbill Nail ￠12x1000mm Steel Rod U bolt...

  • Page 3: Specification

    SPECIFICATION Width: 12’ Length: 20’ Height: 09’ IMPORTANT-----READ MANUAL FIRST Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and costly mistake. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list.
  • Page 4 EQUIPEMNT AND TOOLS FOR INSTALIATION 1. Measuring tape 2. String for alignment 3. Step ladder 4. Welder 5. Sledge hammer 6. Wrench 7. Scissors INSTALLATIONP PROCESS A． Arch Frame Installation 1. (Part No. 1* 1unit + part No. 2 * 2 unit + part No. 3A* 2 unit) Please find the 1 piece of Roof Bent Tubes (part No.
  • Page 5 one group arch frame. 2. (Part No. 1* 1 unit + part No. 2 * 2 unit + part No. 4* 2 unit) Please find the 1 piece of Roof Bent Tubes (part No. 1), two pieces of Shoulder Bent Tube (part No.

  • Page 6: Cover Installation

    NOTE: Please check and reference the Frame Figure. Cover Installation 1. Put on the Front Door cover (part No.14) from the inside of the door frame to the outside and...
  • Page 7 find the suitable holes to pass throw all the tubes. Fix them using the rope inside of the door cover and tie it on the bottom of the door frame. Then put on the back door cover like it. 2. Put on the Roof Cover (part No.13). 3.
  • Page 8 4. Finally adjust the frame and rope, make sure the cover is binding and smooth. Duckbill Nail Installation Insert the ￠12mm Steel Rod (part No.10) into one Duckbill Nail (part No.9) and use electric hammer to make the nail into the earth deeply. Then fix it to the lower of frame tube using U bolts (part No.11).
