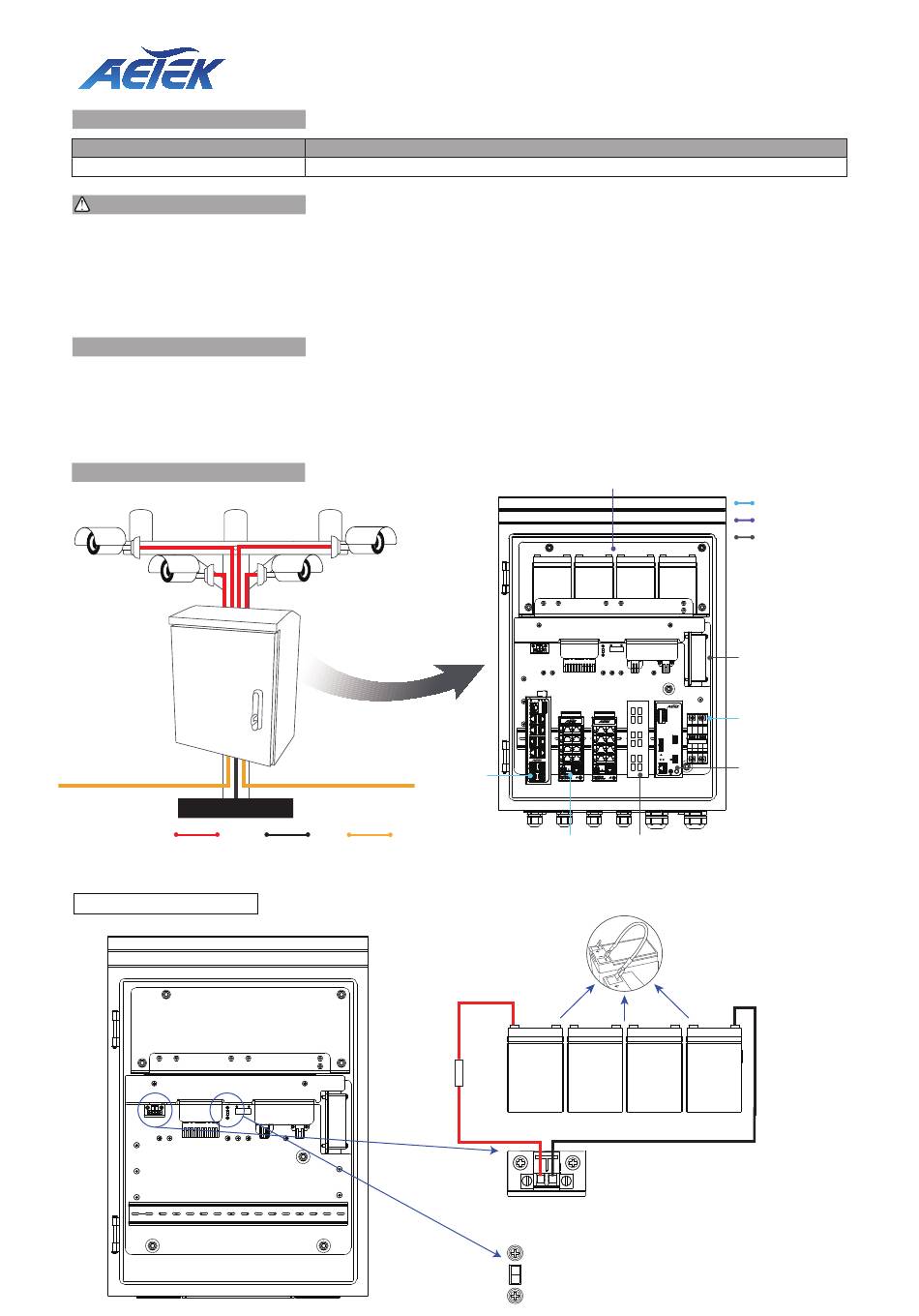

AETEK OS-210-360 Quick Installation Manual

INTRODUCTION
Model
OS-210-360
IMPORTANT NOTES:
1. This chassis is designed for a PoE (PSE) system. The installed equipment must not connect DC (-) to GND!!! There is
a risk of damaging the PD and PSE device.
2. Ensure AC input matches the appropriate voltage: 115V/AC or 230V/AC.
3. Properly wire the battery inside the cabinet before connecting power.
4. Ensure all connections are secure before switching on the power.
5. Use CAT5 or CAT5e UTP/STP cables.
INSTALLATION STEPS:
1. Inside the cabinet, locate the battery section towire the battery:
Connect the battery cable to one terminal.
Connect the power cable to the opposite terminal.
2. Connect the AC input power cable to both the cabinet and the power source.
3. Switch on the power.
CONNECTION
PoE Camera
OS-210-360
Outdoor Surveillance System
IP Back-up PoE Cabinet
Fiber
110VAC or 220VAC
PoE (Data + Power) Power
48VDC Battery Installation
OS-210-360 Outdoor IP Back-up PoE Cabinet
Quick Installation Guide
Description
Outdoor IP Back-up PoE Cabinet, 360W power supply
Fiber
Fiber
20A Fuse
12V/7A x 4PCS
Battery
Industrial
PoE Switch
PoE Surge
Protector
V+ V-
48VDC Battery
Battery Type Dip Switch
UP : Li-ion batteries
DOWN : Lead-scid(pb) batteries
Optional
Customer's Own
Included
Blower
AC Power
Input breaker
OS-210
Controller
Fiber Tray
48VDC Battery
