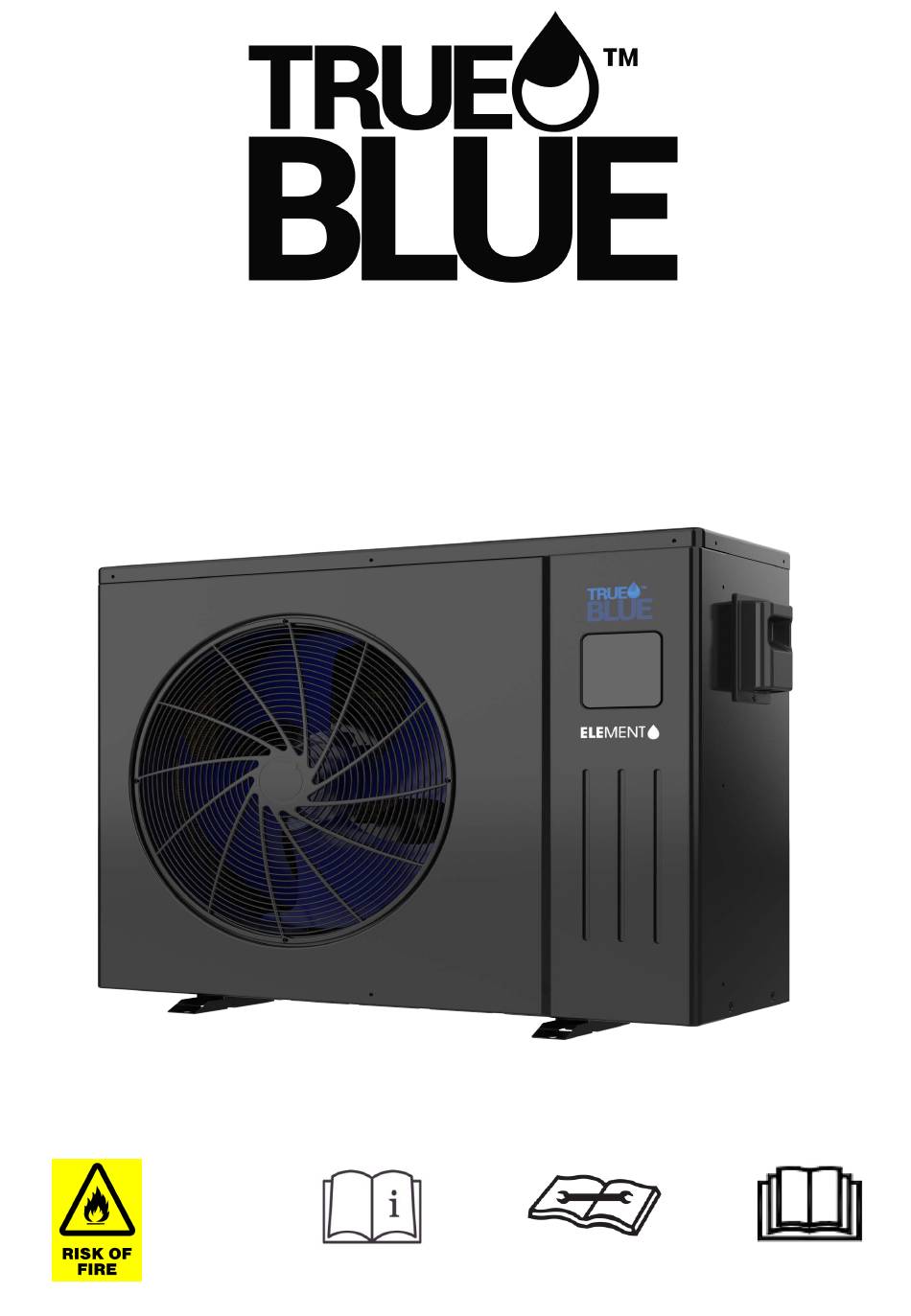

- Page 1 ELEMENT SWIMMING POOL HEAT PUMP UNIT Installation & Instruction Manual trueblueleisure.com.au R E A D C A U T I O N M A N U A L...
-
Page 2: After Sales Service
After Sales Service... -
Page 3: Table Of Contents
CONTENTS 1. Preface 2. Specifications 2.1 Performance Data - Swimming Pool Heat Pump Unit 2.2 Dimensions - Swimming Pool Heat Pump Unit Installation and Connection Swimming Pool Heat Pump Location 3.2 How Close to Your Pool? 3.3 Swimming Pool Heat Pump Plumbing 3.4 Swimming Pool Heat Pump Electrical Wiring 3.5 Initial Start-up Use and Operation Instructions... -
Page 4: Preface
Failure to comply with these recommendations will void the warranty. Swimming Pool Heat Pump Unit heats the swimming pool water and keeps the temperature constant. Element heat pumps have the following characteristics: 1 Durable The heat exchanger is made of PVC & Titanium tube which can withstand prolonged exposure to swimming pool water. - Page 5 1. PREFACE T h e a p p l i a n c e m u s t b e i n s t a l l e d b y l i c e n s e d a n d q u a l i f i e d p e r s o n n e l The appliance shall be installed in accordance with national wiring regulations 1.
-
Page 6: Specifications
2.SPECIFICATION 2.1 Performance data for Element Swimming Pool Heat Pump Unit *** REFRIGERANT : R32 Flammability class is A2L according to ISO817 UNIT Element 11.5kw Element 15.3kW Heating capacity 2.3-11.5 6.281-15.3 (27/26 Btu/h 7820-39100 21355-52020 Heating Power Input 0.732-2.689 0.21-1.95 10.9-5.9... -
Page 7: Dimensions - Swimming Pool Heat Pump Unit
2.SPECIFICATION 2.2 The dimensions for Swimming Pool Heat Pump Unit UNIT: Element 11.5kw unit mm Water outlet φ50 Water intlet φ50 Element 15.3kW UNIT: 1015 Water outlet φ50 Water intlet φ50... -
Page 8: Installation And Connection
3.INSTALLATION AND CONNECTION The heat pump must be installed by a licensed and qualified personnel 3.1 Element Swimming Pool Heat Pump Location The unit will perform well in any outdoor location provided that the following three factors are presented: 1. Fresh Air - 2. Electricity - 3. Pool filter piping The unit may be installed virtually anywhere outdoors. -
Page 9: Swimming Pool Heat Pump Plumbing
3.INSTALLATION AND CONNECTION 3.3 Element Swimming Pool Heat Pump Plumbing The Swimming Pool Heat Pump's exclusive rated flow titanium heat exchanger requires no special plumbing arrangements except bypass (please set the flow rate according to the nameplate). The water pressure drop is less than 10kPa at maximum flow rate. Since there is no residual heat or flame Temperatures, The unit does not need copper heat sink piping. -
Page 10: Swimming Pool Heat Pump Electrical Wiring
3.INSTALLATION AND CONNECTION 3.4 Element Swimming Pool Heat Pump Electrical Wiring by Electrician NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it simply prevents the flow of electricity to or from the pool water. Grounding the unit is still required to protect you against short circuits inside the unit. -
Page 11: Use And Operation Instructions
4.Use and Operation Instructions 1. Main Interface display 2.Key and icon function instructions 2.1 Key function instructions Function Key symbols Designation Mode key Press to switch the unit mode and timing setting. Press to carry out startup, shutdown, cancel current On-off key operation and return to the last level of operation. - Page 12 4.Use and Operation Instructions 2.2 Icon function instruction Icon symbols Designation Function Displays during cooling (there is no limit to startup and shutdown, and it is Cooling symbol optional when the unit is cooling-only unit or heating-and-cooling unit). Displays during heating (there is no limit to startup and shutdown, and it is Heating symbol optional when the unit is a heating-only unit or heating-and-cooling unit ).
-
Page 13: Startup & Shutdown
4.Use and Operation Instructions 3.Startup and shutdown Press " " for 0.5 s to enter ON/OFF interface. If there is no operation for 1 minute, Running mode Standby mode the display screen will turn off. Notes: Startup and shutdown operation can only be conducted in the main interface. When it displays full screen off, click any key for returning to ON/OFF main interface. -
Page 14: Temperature Setting
4.Use and Operation Instructions After completing defrosting, the unit will be automatically switched to the heating / automatic mode (Keeping consistent with the mode before defrosting). Notes: During defrosting, mode switch is available. And when switching the mode, the unit will not work under a new mode until defrosting is completed. -
Page 15: Setting Timing On / Off
4.Use and Operation Instructions 6.Timer Setting - ON/OFF Keep long press Short press " " or " " to circularly " " for 5 s. display among parameter V03-V08. Short press " " to Short press " " to Short press " "... -
Page 16: Scenario Mode
4.Use and Operation Instructions 7.Scenario mode Under the main interface, press " " to enter the scenario mode selection. The current mode flashes and the indicator light flashes. Press " " to enter the scenario mode. After entering the scenario mode selection, short press "... -
Page 17: Clock Setting
4.Use and Operation Instructions 8.Clock setting Press " " to enter password Press " " or " " to choose Press " " or " " to select setting interface. password "025", press " " to parameter groups " v ". enter user setting interface. -
Page 18: Checking The Unit Status
4.Use and Operation Instructions 9.Check the unit status In the main interface, press " " for 2s to enter the temperature display interface. Then press " " or " " to view the inlet temperature T02, outlet temperature T03, coil temperature T04, ambient temperature T05 and exhaust temperature T06 in sequence. -
Page 19: Fault Interface
4.Use and Operation Instructions 11.Fault interface When the unit fails, the fault code will be displayed on the secondary display interface, and the wire controller can display the corresponding code according to the fault reason. Refer to the fault table for the specific definition of the fault codes. For example: Short press "... -
Page 20: Fault Summary Tables
4.Fault Summary 12. Parameter list and breakdown table 12.1 Electronic control fault table Can be referenced according to the remote controller failure code and troubleshooting REPAIRS MUST BE DONE BY QUALIFIED PERSON. ELECTRICAL REPAIRS MUST BE DONE BY AN ELECTRICIAN Faul t Protect/Fault Reason... - Page 21 4.Fault Summary 1. Motor is in locked-rotor state 1.Change a new fan motor 2.The wire connection between Fan Motor2 Fault 2.Check the wire connection and make sure they DC-fan motor module and fan are in good contact motor is in poor contact Frequency conversion board fault table: Fault Protection/fault...
-
Page 22: Parameter List
4.Electrical Diagrams 12.2 Parameter list Meaning Default Remarks Adjustable Refrigeration target temperature set point 27℃ Adjustable Heating the target temperature set point 27℃ Automatic target temperature set point 27℃ Adjustable 13. Interface drawing 1 3.1 Wire control interface diagram and definition Sign Meaning 12V（power +）... - Page 23 4.Electrical Diagrams CN66 CN18 CN13 CN11 IT SUT CT +12V 1 2 1 CN30 RS485-2 RS485 MODE CN97 CN99(PS) CN15(EEV) REMOTE P1(ACL) CN42 1 2 3 1 2 3 4 5 6 P10-1(U) 5V IN GND A B C D P10-2(V) 2AC32I27WO1 P10-3(W)
- Page 24 4.Electrical Diagrams Wiring Diagram 15.3kw-18.5kw Parameters...
- Page 25 4.Codes Main board of the input and output interface instructions below Number Sign Meaning P10-1/2/3(U/V/W) Compressor CN66 High fan CN97 DC motor 4-way valve CN11 Water pump CN18 CN13 Low fan Live wire Neutral wire P1 P2 Program download interface CN10 RS485 Color line controller communication/WiFi...
-
Page 26: Maintenance And Inspection - Refrigerant
5. MAINTENANCE AND INSPECTION - REFRIGERANT REFRIGERANT MAINTENANCE CAN ONLY BE CARRIED OUT BY A QUALIFIED TECHNICIAN Check the water supply to and from device often. You should avoid the condition of no water entering into system, as this will influence unit's performance and reliability. You should clear the pool/spa filter regularly to avoid damage to the unit as a result of the dirty or clogged filter. - Page 27 5. MAINTENANCE AND INSPECTION No ignition sources No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
- Page 28 5. MAINTENANCE AND INSPECTION 5. MAINTENANCE AND INSPECTION Repairs to sealed components 1) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. A form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
- Page 29 5. MAINTENANCE AND INSPECTION 5. MAINTENANCE AND INSPECTION Removal and evacuation When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to: .
- Page 30 5. MAINTENANCE AND INSPECTION 5. MAINTENANCE AND INSPECTION Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant.
-
Page 31: Appendix
6.APPENDIX 6.1 Cable specification Single phase unit Nameplate Creepage protector Signal line maximum Phase line Earth line current No more 2 1.5mm 1.5mm 30mA less than 0.1 sec than 10A 2 2.5mm 2.5mm 30mA less than 0.1 sec 10~16A 2 4mm 30mA less than 0.1 sec 16 ~25A 2 6mm... -
Page 32: General Exclusions
67.5 72.5 77.4 (R32)( ) Warranty The Element Inverter heat pumps come with the following warranty from date of purchase • 3-year parts warranty on all components in Australia • 5 year Heat exchanger warranty • 5 year Compressor warranty •... - Page 33 Notes...
- Page 34 Notes...
- Page 35 Pool Systems Pty Ltd 27 Strathwyn Street, Brendale, Qld Australia 4500 trueblueleisure.com.au Made In China Code 20210401-0002...
