Summary of Contents for Prima PRRF211

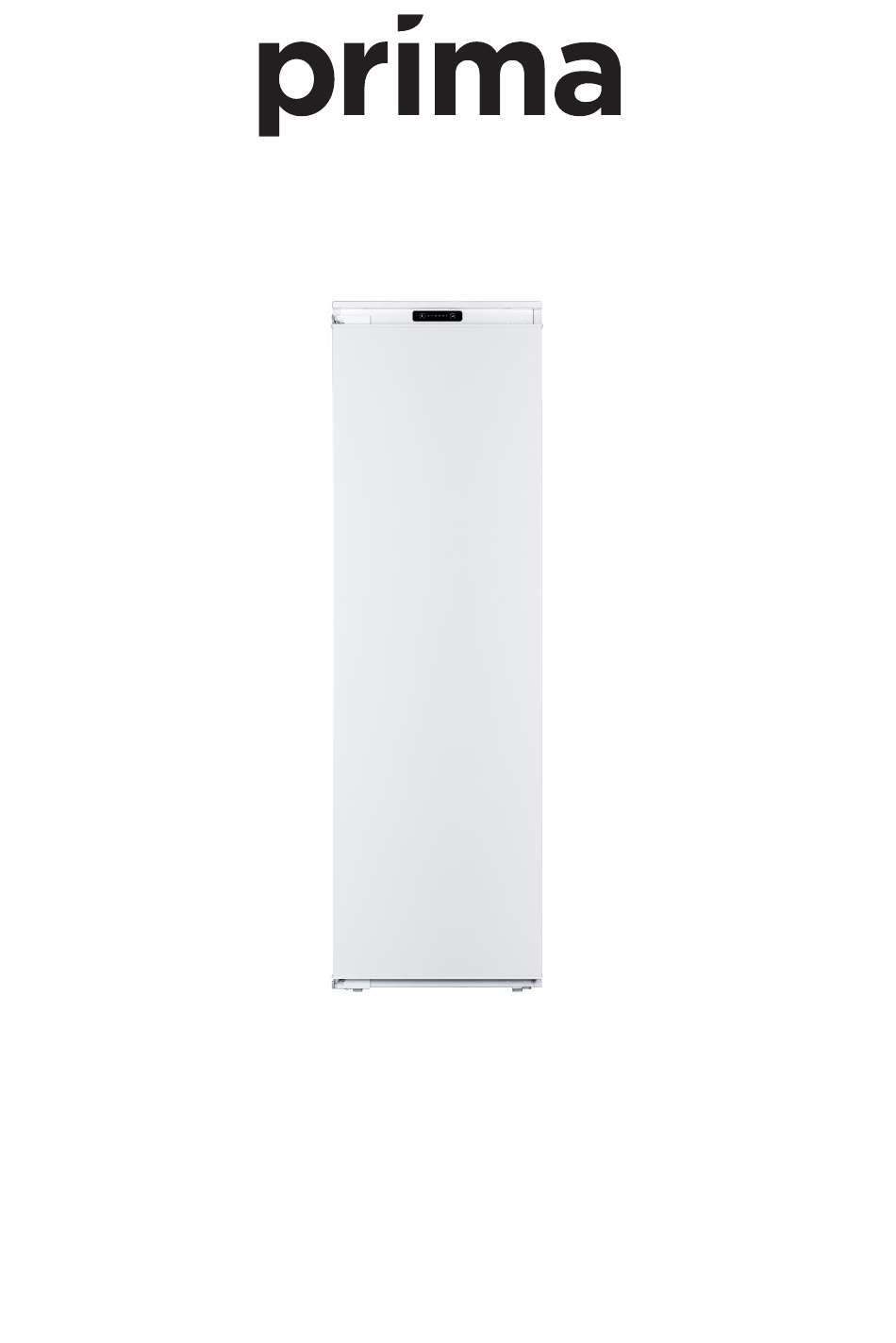

- Page 1 MODEL PRRF211 Integrated freezer Installation, use and maintenance...
- Page 2 Important The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that we reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity, or who lack experience or knowledge about it, unless they have had...
- Page 3 This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical safety (LVD) and Electromagnetic interference compatibility (EMC). Parts intended to come into contact with food conform to 1934/2004/EC. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
-
Page 4: Before First Use
Before First Use You must allow the freezer to settle for at least twenty four hours prior to switching the power on. It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. -
Page 5: Controls And Use
Controls and Use fig. 1 A. Freezer temperature adjustment sensor This button is used to adjust the temperature within the freezer. Press this sensor once to activate adjustment, and then as many times as necessary until the desired level is selected. The settings range from -16 to -24 with being -16 warmest and -24 being the coldest. - Page 6 • The freezer compartments are designer to store only frozen food. • Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer. • Follow the instructions on the packaging for storage of frozen food. If no information is provided, foods should not be stored for more than three months after the purchase date.
-
Page 7: Defrosting The Freezer
Defrosting the freezer Do not use heaters or defrosting sprays in this appliance. • Never use any metallic or sharp objects to remove the ice as this could damage the lining. • The freezer compartment should be defrosted regularly to ensure the most efficient running of the freezer. -
Page 8: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling Customer Care to prevent unnecessary service calls and potential cost. If the appliance is not working • Check there is power to the appliance. •... -
Page 9: Climate Range
If there is water in the lower part of the refrigerator compartment • Check the drain hole in the channel at the back of the compartment is clear. Climate range The information about the climate range of the appliance is provided on the rating plate. -
Page 10: Installation Andventilation
Installation AndVentilation This appliance must never be installed close to heat sources i.e. heating elements, cookers or in damp places This refrigeration appliance is intended for use as a built-in appliance. The diagram shows the ventilation requirements for your product. Failure to provide adequate ventilation can lead to increased running costs and premature failure and may invalidate the warranty provided with the product. - Page 11 Ventilation The main consideration when installing any refrigeration unit into a fitted kitchen is ventilation. The heat removed from the cooling compartment needs to be dissipated into the atmosphere. Incorrect ventilation can lead to premature compressor failure, excessive power consumption and total system failure. For products intended to be installed into a tall housing unit, the following requirements need to be met: - Important...
- Page 12 The open channel at the rear is clearly shown. For the correct operation of the appliance it is important that the top of the housing unit is not blocked off. A channel depth of 40-50mm is normal with most units. A hole is shown in the base shelf of the unit;...
-
Page 13: Reversing The Door
Reversing the door It is possible to reverse the door on this appliance, if required. To do so, follow the steps below: Loosen the top hinge fixing screws and remove the top hinge, taking fig. 4 care to support the weight of the door. - Page 14 Mounting theFascia Door • Using a screwdriver, fix the mounting brackets to the appliance door, as shown in figure 5. • Position the appliance within the unit. Ensure that there is a gap of 3 fig. 5 to 4 mm between the non-hinged side and the cabinet wall.
-
Page 15: Electrical Information
Electrical information Warning! This appliance must be earthed. Green and Yellow to Earth Brown to Live 13 Amp fuse Cord Clamp Blue to Neutral fig. 8 The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. - Page 16 As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:- • The wire which is coloured GREEN and YELLOW must be connected to the terminal which is marked with letter (E) or by the Earth symbol or coloured GREEN and YELLOW.
-
Page 17: Warranty And Service
Warranty and service The manufacturer shall not be held liable for any damage caused by improper use of the product. • Repairs carried out by unqualified persons may seriously endanger the appliance user • Pursuant to Commission Regulation (EU) 2019/2019, The minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part...
