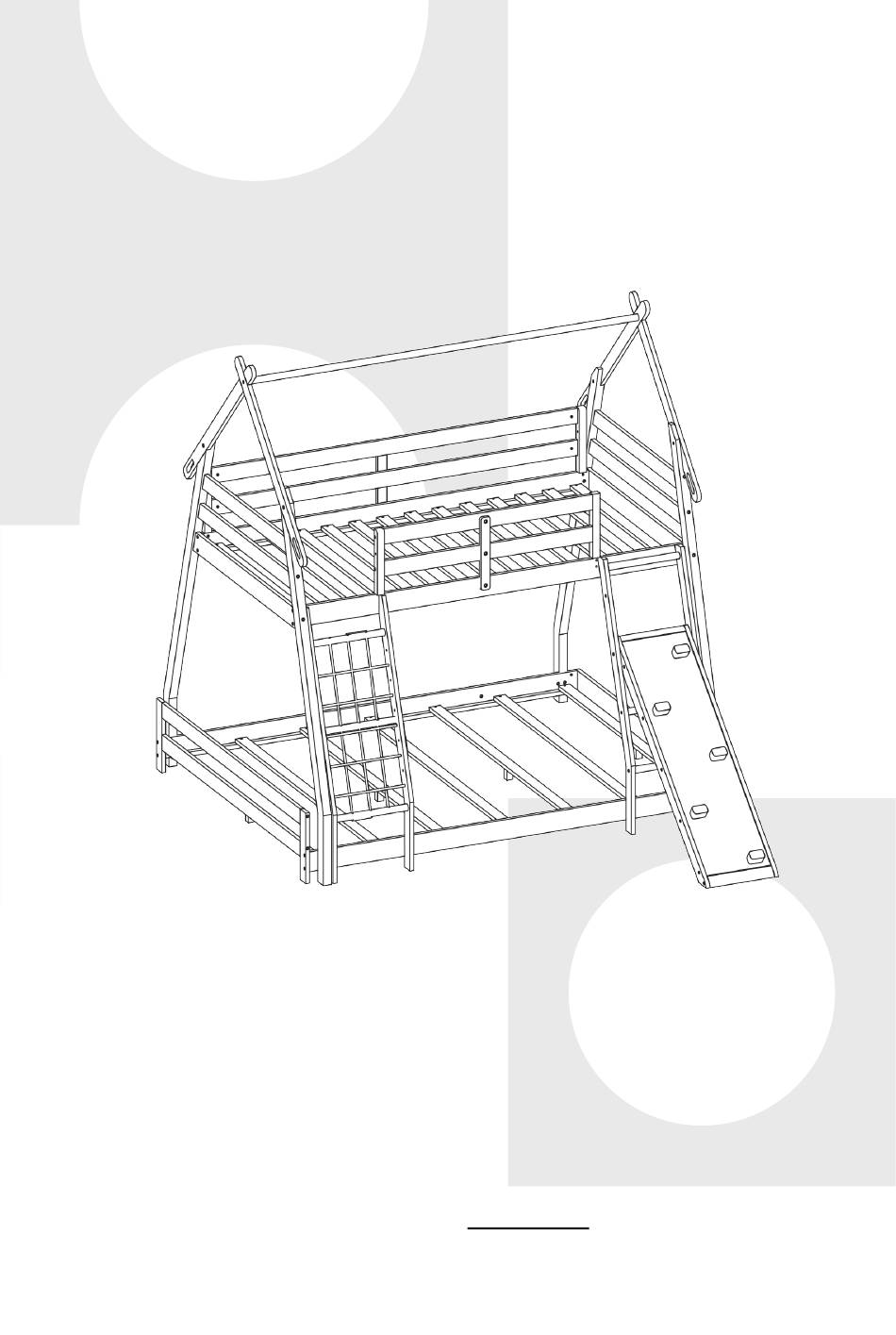

- Page 1 Bunk Bed Lit Superposé HY10345 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. -
Page 4: Safety Warnings
SAFETY WARNINGS 1. This bed is designed for use only mattress(es) meeting the following specifications on the upper bunk: Upper bunk (bunk bed and tribed included) Upper bed Bed Type Length Width Thickness Twin Standard 74"-75" 38 1/2" 6" max Lower bed Bed Type Length... - Page 5 9. Always use the ladder for entering and leaving the upper bunk. 10. Do not use substitute parts. Contact the manufacturer or dealer for replacement parts. 11. Use of a night light may provided added safety precaution for a child using the upper bunk. 12.
-
Page 6: Avertissements De Sécurité
AVERTISSEMENTS DE SÉCURITÉ 1. Ce lit est conçu pour utiliser uniquement des matelas répondant aux spécifications suivantes sur la couchette supérieure : Couchette supérieure (lit superposé et lit triple inclus) Lit supérieur Type de Lit Longueur Largeur Épaisseur Twin Standard 74"-75"... - Page 7 8. Ne pas permettre les jeux sur ou sous le lit et interdire de sauter sur le lit. 9. Utilisez toujours l'échelle pour entrer et sortir de la couchette supérieure. 10. N'utilisez pas de pièces de rechange. Contactez le fabricant ou le revendeur pour obtenir des pièces de rechange.
- Page 8 Detail/Détail:...
- Page 9 Part List ( Box 1 ) /Liste des Pièces (Boîte 1) 3 x1 4 x1 Front Left Leg Back Left Leg /Pied Avant Gauche /Pied Arrière Gauche 11 x2 12 x5 Center Guardrails Bars /Garde-Corps Centraux /Barres 14 x1 13 x1 Back (Left) Guardrail Reinforced Bar Back (Right) Guardrail Reinforced Bar /Barre Renforcée de Garde-Corps...
- Page 10 Part List ( Box 1 ) /Liste des Pièces (Boîte 1) 23 x2 24 x2 Side Guardrails Side Guardrails /Garde-Corps Latéraux /Garde-Corps Latéraux 25 x1 26 x1 Roof Rail Roof Rail /Rail de Toit /Rail de Toit 27 x1 28 x1 Roof Rail Roof Rail /Rail de Toit...
- Page 11 Part List ( Box 2 ) /Liste des Pièces (Boîte 2) 1 x1 2 x2 Footboard Headboards /Pied de Lit /Têtes de Lit 6 x1 5 x1 Side Rail Side Rail /Rail Latéral /Rail Latéral 8 x1 7 x1 Side Rail Side Rail /Rail Latéral /Rail Latéral...
- Page 12 Part List ( Box 2 ) /Liste des Pièces (Boîte 2) 31 x1 32 x1 Front Left Leg Back Left Leg /Pied Avant Gauche /Pied Arrière Gauche 39 x3 40 x4 Slats Slats /Lattes /Lattes 33 x1 34 x1 Side Rail (Left) Bar Side Rail (Right) Bar /Barre Latérale (Gauche) /Barre Latérale (Droite)
- Page 13 Hardware List ( Box1)/Liste des Accessoires (Boîte 1) OUTLOOK DESC /N° /IMAGE /DESC /QTÉ Dowels/Chevilles Ø8*30mm Screws/Vis M6*30mm Screws/Vis M6*50mm Screws/Vis M6*90mm Bolts/Boulons M6*100mm Bolts/Boulons M6*70mm Bolts/Boulons M6*50mm Bolts/Boulons M6*35mm Bolts/Boulons M6*30mm Bolts/Boulons M6*25mm Bolts/Boulons M6*20mm Cross Dowels/Chevilles en Croix M6*13mm Flat Head Screws/Vis à...
- Page 22 Ends/Extrémités Starting point /Point de départ...
- Page 24 37 38...
- Page 27 5.5”...
- Page 28 10.375”...
- Page 30 FINAL/FINAL:...
- Page 31 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 32 AUS office: Truganina FRA office: Saint Vigor d'Ymonville GBR office: FDS Corporation Limited,Unit 4, Blackacre Road, Great Blakenham,Ipswich, Ip6 0FL,United Kingdom USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com GBR:cs.uk@costway.com customer team is always here to help. FRA:cs.f r @costway.com...
