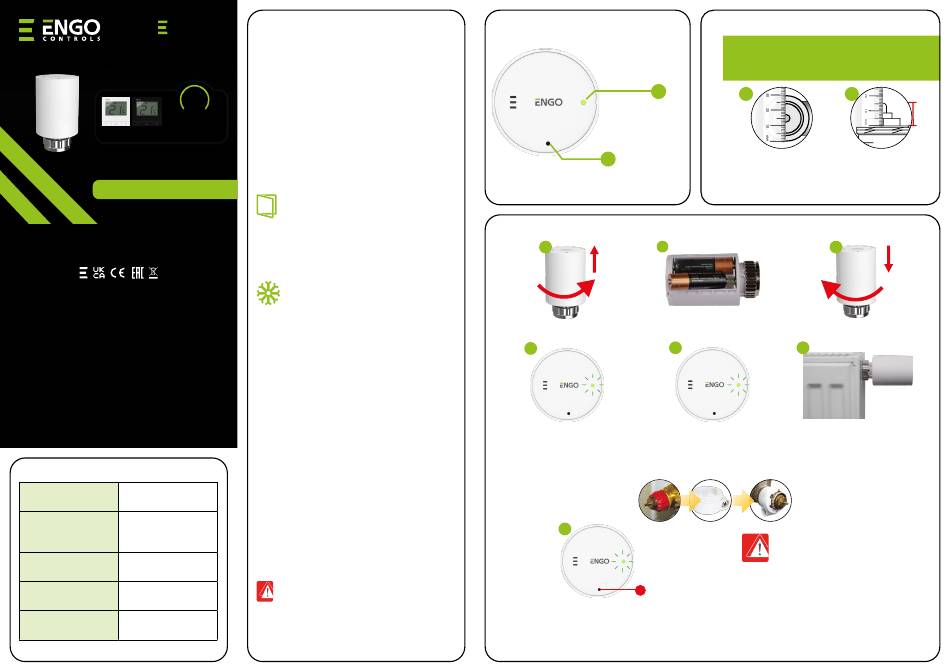

ENGO CONTROLS ETRV-M28 Quick Manual

TRV
Thermostatic Radiator Valve
!
REQUIRED
TO OPERATE THE RADIATOR
ETRV-M28 / ETRV-M30
Quick Guide
Ver. 1.2
Release date: X 2024
Soft: v4.2
Producer:
Engo Controls sp z o.o. sp. k.
Rolna 4 St.
43-262 Kobielice
Poland
www.engocontrols.com
Technical specifications
Power supply 2xAA battery
Wireless with ZigBee
Communication compatibile controllers
(868 MHz + ZigBee)
Thread size M30 x 1.5 / M28 x 1.5
IP Protection class IP30
Dimension [mm] Φ50 x 81
Introduction
The wireless valve head is used for controlling radiator
heating. An excellent replacement for the traditional
manual thermostatic valve head. For it to function properly,
pairing with a master controller is necessary. Up to 6 heads
can be paired with one controller within the same room.
Based on the data collected, the controller modulates
the opening of the head. The temperature measured by
the controller ensures even heating of the entire interior.
The head has an automatic calibration function. Using an
internet gateway, it is possible to control the set (head +
controller) using the ENGO Smart application.
Additional functions:
Open window function
(ventilating the room)
The head unit automatically closes the flow to the radiator
when a sudden drop in temperature is detected, indicating
that a window has been opened. After 15 minutes, the
system independently restores normal heating control.
Frost protection
When the ETRV head is closed, frost protection is
automatically activated. If the temperature sensor in the
head detects a temperature drop below 5C, the head
opens to supply heat to the radiator and prevent freezing.
Product Compliance
This product complies with the following EU Directives:
2014/53/EU i 2011/65/EU.
Safety Information:
Use in accordance with national and EU regulations. Use
the device only as intended, keeping it in a dry condition.
The product is for indoor use only. Installation must be
carried out by a qualified person in accordance with
national and EU regulations.
Installation:
Installation must be performed by a qualified person with
appropriate electrical qualifications, in accordance with
the standards and regulations in force in a given country
and in the EU. The manufacturer is not responsible for
non-compliance with the instructions.
WARNING:
For the entire installation, there may be additional
protection requirements, which the installer is responsible
for (e.g., installation of an additional differential pressure
overflow valve).
User interface
1
LED diode (indicates
device status)
2
Function button
Instalation of radiator head
1 2
2
1
Remove the cover as shown in the Insert the batteries according to the
illustration.
4 5
The LED will indicate the software version
Wait until the LED light is
(e.g., v3.5 flashes 3 times green and 5
times red).
The installation on a Danfoss RA valve
When installing the valve head on
a Danfoss RA valve (see diagram
nearby), you must use an M30
thread adapter.
7
1x
To start the adaptation process press the button once
once or wait 3 minutes, then the adaptation will start
automatically. When the adaptation is correct - the LED will turn off.
Compatibility with Radiator Valves
PEASE NOTE: If there are discrepancies in dimensions, please
contact us or the installer to consider replacing the valves to
ensure compatibility with the valve head.
1 2
Measure the thread diameter. Measure the pin height.
Choose the valve head according to The pin height should be
the valve size: For a thread diameter between 10-15mm in the
of 30mm (M30) or 28mm (M28).
3
Reattach the cover as shown in the
illustration.
correct polarity.
6
Screw the valve head onto the radiator valve.
continuously green.
INFORMATION:
If installing the valve head on a
Danfoss RA valve, please contact
customer support.
ATTENTION:
If an adaptation error occurs with the valve insert,
the LED will flash alternately green/red every
3 seconds. Check if the valve head is properly
installed. You can immediately retry the adaptation
by pressing the button once.
open position.
1
2
