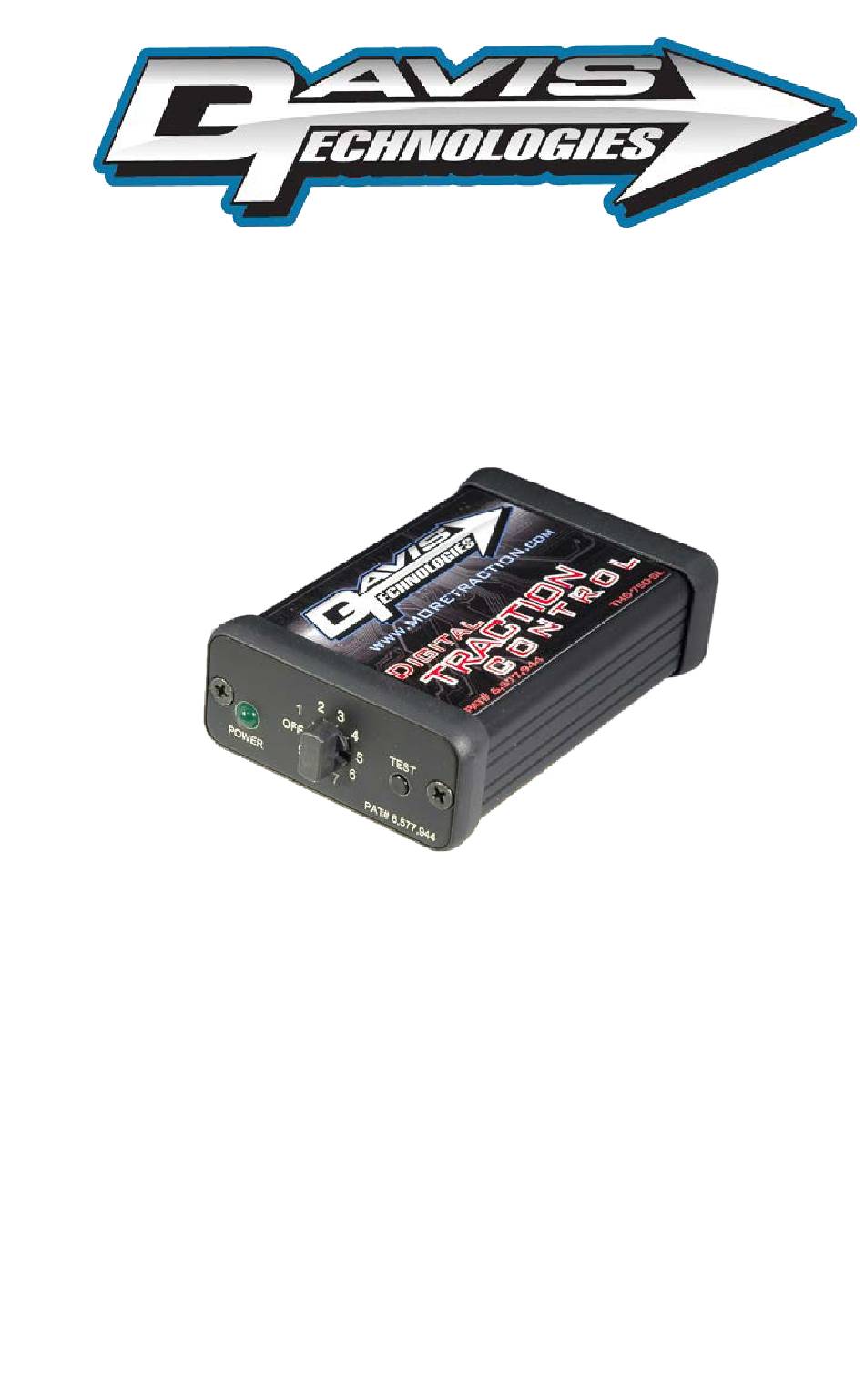

- Page 1 WWW.MORETRACTION.COM TMS-750 ELECTRONIC TRACTION CONTROL US PATENT 6,577,944 Other Patents Pending...
- Page 2 COPYRIGHT NOTICE Copyright © 1999-2013 Davis Technologies, LLC. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders. Any components shown are for illustration or instructional purposes only.
-
Page 3: Table Of Contents
Table of Contents Table of Contents ............0 Introduction ..............2 How Does It Work? ............3 Installation ..............5 Testing ................6 Forced Activation Test: ..........6 RPM Window Test: ............7 Traction Control Adjustments ........8 Traction Control Setup ..........9 Trigger Count: ............. -
Page 4: Introduction
Testing is very important since it will help you utilize this product to its full potential. Please read all of the instructions and information thoroughly before attempting to install or use this product. Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 5: How Does It Work
20-25% to fix it. But if the tire slip is detected within one cylinder worth of crank rotation, as the Davis Technologies systems do, then a small reduction in power can reduce or stop the tire slip. - Page 6 In fact, Davis Technologies’ systems are at least 20 times faster than other systems which are integrated into the fuel injection or ignition system.
-
Page 7: Installation
(green), this should be the white wire, on a “stock” style module (black) this is the green wire. (The wire color out of the TC unit is the same as the wire on the module to connect to.) Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 8: Testing
The first timing retard stage will activate for 4 seconds, then the second stage for the next 4 seconds. Note: After the test is complete, the LED will blink to show the firmware version. Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 9: Rpm Window Test
DO NOT USE WINDOW MODE ON TRACK!! Note: After the test is complete, the LED will blink to show the firmware version. If unit does not pass all test, recheck all connections and test again. Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 10: Traction Control Adjustments
Traction Control Adjustments Davis Technologies’ Non-Self Learning systems incorporate a patented method to control wheel spin where the users sets a Threshold of acceleration that if exceeded will cause the timing to retard. The sensitivity of the system is adjusted using the Threshold “T”... -
Page 11: Traction Control Setup
Sample Rate, which makes the unit less sensitive, but faster to react. The higher the number the slower the Sample Rate, which makes the unit more sensitive, but slower to react. Valid settings are 1-5. (Default=5) Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 12: Configuring
(example- 8 triggers/2=4) Release the “Test” button. The LED will flash to show the number of triggers the unit is now set to. (The Trigger Count must be set correctly for the accurate RPM calculations) Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 13: Starting Rpm
The led will flash to show the value has been accepted. Now move the dial to the second digit of the desired Starting RPM, then press and release the “Test” button. (example- 5000rpm - sec. digit=0 / 3500rpm - sec. digit =5) Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 14: Buffer
The led will flash to show the value that the buffer is now set to. Valid settings are 0-3. (Buffer 1= 1 blink) (zeros are indicated by shorter blinks) ( Do not set above 3 !) Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 15: Sample Rate
Sample Rate value. Release the “Test” button, The LED will flash to show the value that the Sample Rate is now set to. Valid settings are 1-5. (Most users never need to adjust the Sample Rate) Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 16: Confirming Settings
LED). After a short pause, the Led will flash for the value of Sample Rate, followed by a pause. Lastly, the LED will Flash the current Self Learning status value. (for tech support purposes only). Davis Technologies TMS-750-HEI www.moretraction.com... - Page 17 (97% of max RPM = 9,7 Blinks) (zeros are indicated by shorter blinks). After a short pause, the LED will flash for the value of Trigger Count. (4 Triggers=4 Blinks). Davis Technologies TMS-750-HEI www.moretraction.com...
-
Page 18: Factory Reset
Hold down the “Test” button Turn the power On While holding the “Test” button down, move the dial to the “Off“ position. Release the “Test” button, The LED will flash rapidly to indicate the Factory Settings have been restored. Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 19: Firmware Updating
Traction Control System. The traction control unit will need to be returned to Davis Technologies to have the updates installed and configured. Users should log onto www.moretraction.com, or call Davis Technologies, LLC tech department occasionally to check for updates. - Page 20 A system that uses a preset percentage of slip, between the rear wheel speed to front wheel (or ground) speed, cannot compensate for these changing conditions that are inherent in all types of racing. Traction Control Is What We Do! Davis Technologies TMS-750-HEI www.moretraction.com...
-
Page 21: Traction Control Panel Software
TMS-9500-SL, and easily downloaded from the web site and installed on your computer. The Traction Control is connected to the computer via a serial cable or through a secure wireless Bluetooth connection. Tuning is achieved through a few simple mouse clicks. Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 22: Main Tab Settings
“Set Dials Here” box. When checked, the TC unit only uses the TCP settings, and the setting cannot be changed using the button on the unit. To use the button method, YOU MUST UN-CHECK THIS BOX! Davis Technologies TMS-750-HEI www.moretraction.com... - Page 23 Main Tab- Basic Screen Davis Technologies TMS-750-HEI www.moretraction.com...
-
Page 24: Advanced Main Tab Settings
Advanced Main Tab Settings: These settings should only be adjusted if advised to do so by Davis Technologies! The Buffer setting is another feature that can be used to fine tune the system. The buffer sets the number of consecutive slip conditions required to cause a correction. - Page 25 Main Tab- Advanced Screen Davis Technologies TMS-750-HEI www.moretraction.com...
-
Page 26: More Tab Settings
2. For a V8, set the Triggers to 4. (This setting only accessible using the “Traction Control Panel Software”) Davis Technologies TMS-750-HEI www.moretraction.com... - Page 27 More Tab- Basic Screen Davis Technologies TMS-750-HEI www.moretraction.com...
-
Page 28: More Tab Advanced Settings
RPM actually reached on the track. Min Corrections: sets the minimum number of cylinders, in full revolutions, that will be retarded if a correction is made by the traction control unit. Davis Technologies TMS-750-HEI www.moretraction.com... - Page 29 More Tab- Advanced Screen Davis Technologies TMS-750-HEI www.moretraction.com...
-
Page 30: Admin Tab
Admin Tab: The Admin screen is used to provide information about the unit for tech support by Davis Technologies. Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 31: Usb To Serial Adapter
Davis Technologies offers a model that has been tested on may brands of computers as well as across many operating systems. These are available for $29.95 from Davis Technologies directly. Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 32: Handheld Programmer
TCP software does, but is a simple, self contained system that does not require a computer. Most users prefer the handheld. The handheld programmer is available as a hard wired unit, or a wireless Bluetooth connected unit. Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 33: Notes
Notes Davis Technologies TMS-750-HEI www.moretraction.com... -
Page 34: Disclaimer
The Davis Technologies, LLC’s products and parts warranties are voided if the vehicle or part is used for competition or if they fail as a result of modification. -
Page 35: Contact Information
Contact Information Technical support and sales may be reached at: Davis Technologies, llc. PO Box 8250 Asheville, NC. 28787 (828) 645-1505 (828) 645-1525 fax email: support@moretraction.com web: www.MORETRACTION.com Davis Technologies TMS-750-HEI www.moretraction.com...
