Kirk Key Adapters for ACBs
Optional for A Series Power Circuit Breakers and Non-automatic Switches.
Note:
Noark Electric provides only the adapter kit which is compatible with Kirk Key Type C (#KCAM00010) lock. The kirk key must be purchased separately by the customer.
What You Need:

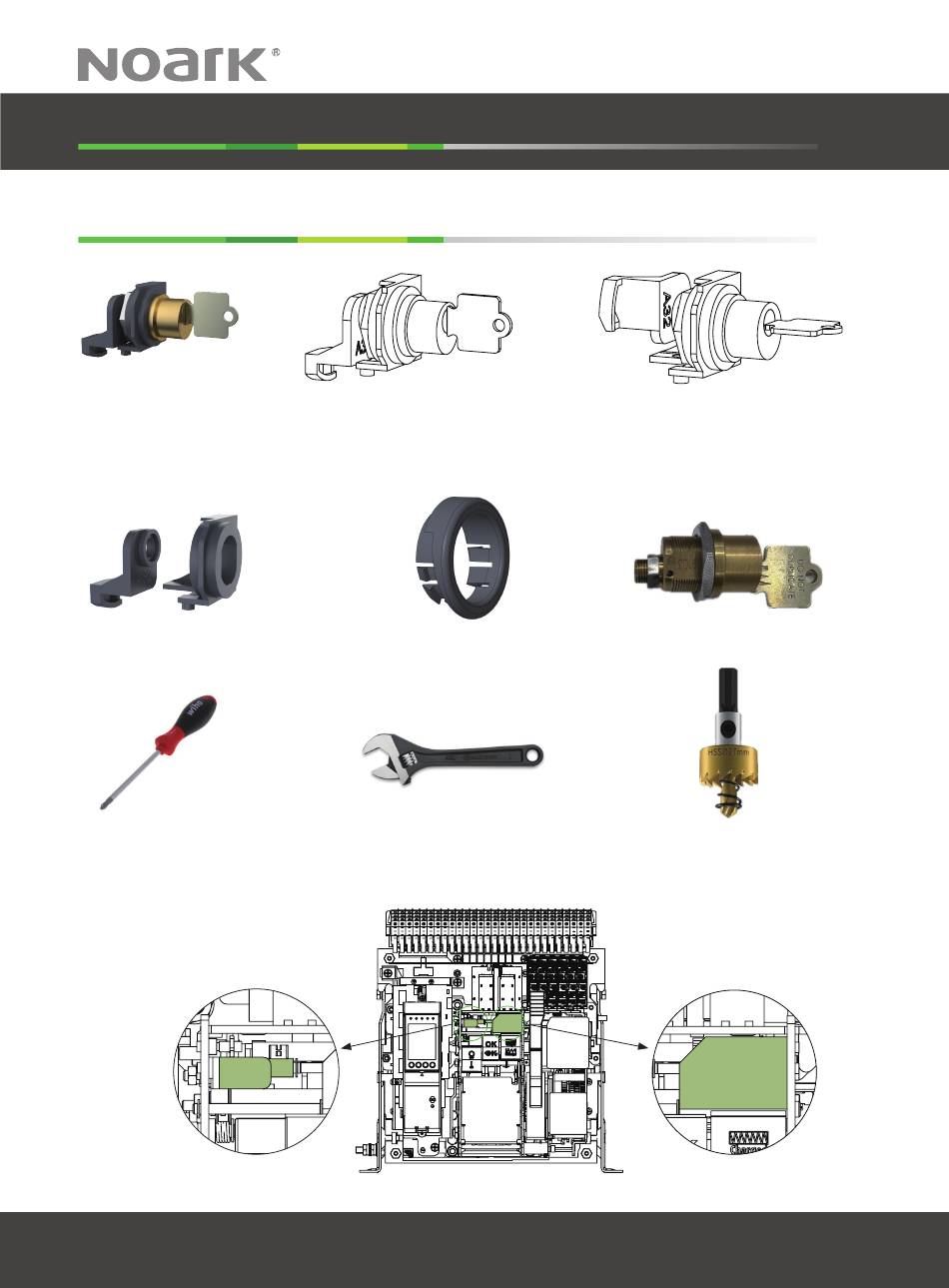

Kirk Key Interlock Kit
Phillips Screwdriver
Operation
Open push-button
na.noark-electric.com•nasales@noark-electric.com,(626) 330-7007
2025 NOARK Electric • All Rights Reserved
Locked
The breaker can not be closed
Ring cover
Wrench
Unlocked
The breaker can be closed
Kirk Keylock Type C
(purchased from Kirk, #KCAM00010 )
Hole saw (1 inch)
Closing push-button
