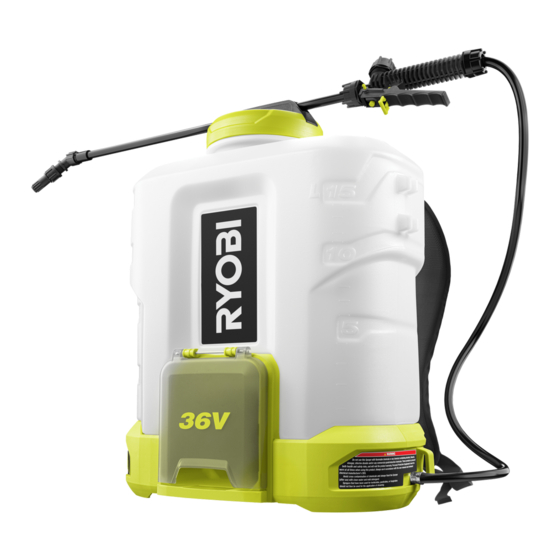

Summary of Contents for Ryobi R36BPS10

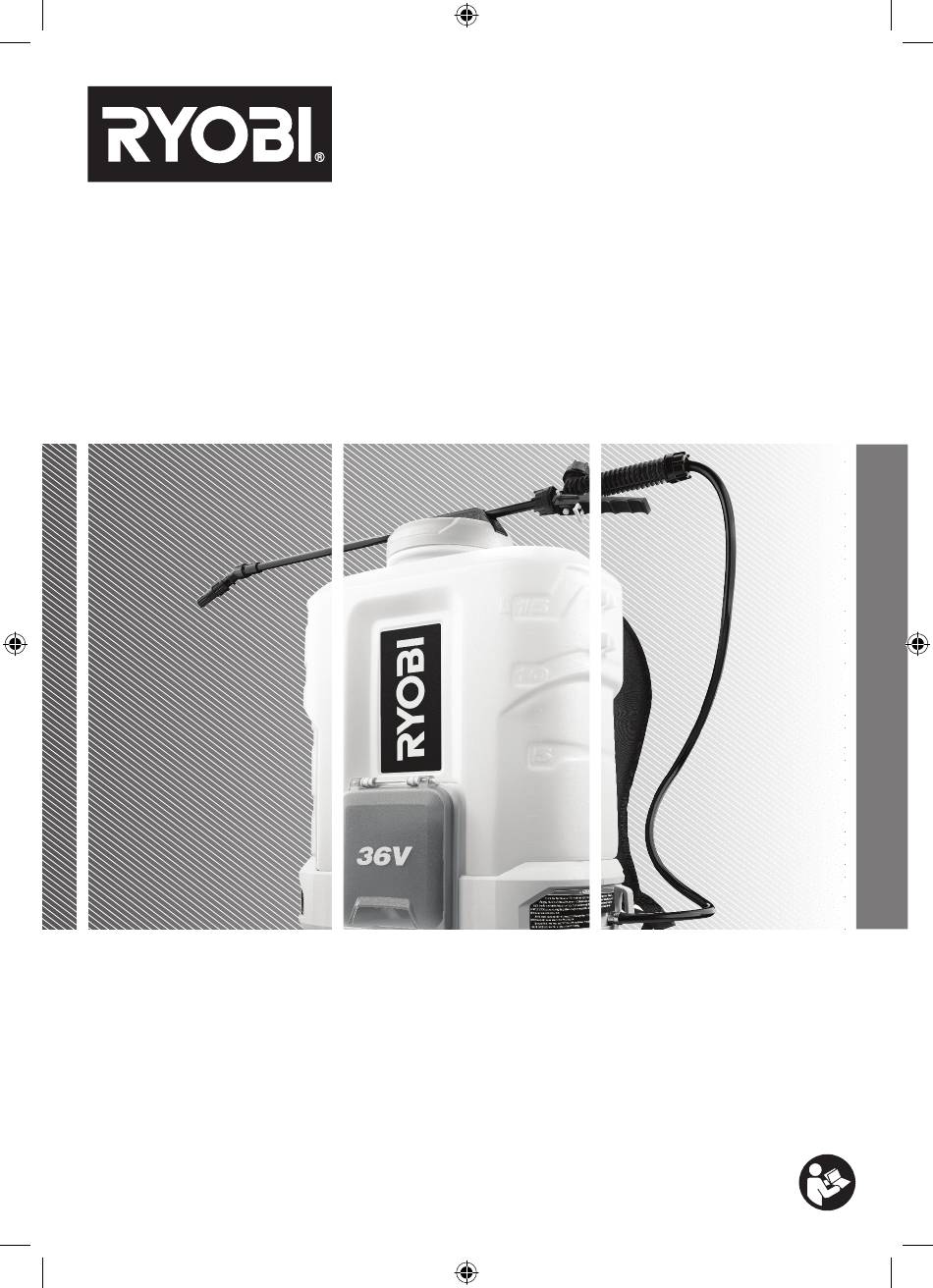

  • Page 1 FRONT PAGE R36BPS10...

  • Page 2: Intended Use

    ■ Do not abuse the cord. Never use the cord for IMPORTANT! carrying, pulling or unplugging the power tool. Keep It is essential that you read the instructions in this manual cord away from heat, oil, sharp edges or moving before assembling, operating, and maintaining the parts.
  • Page 3 preventive safety measures reduce the risk of starting ■ Never service damaged battery packs. Service the power tool accidentally. of battery packs should only be performed by the manufacturer or authorized service providers. ■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power CORDLESS BACKPACK SPRAYER SAFETY tool or these instructions to operate the power tool.

  • Page 4: Maintenance

    ■ Thoroughly inspect both the inside and outside of the ■ Make sure that the tank cap is properly closed after product, and examine the components before each filling. use. Check for cracked and deteriorated hoses, leaks, ■ Hang a tag on the product to note the chemical solution clogged nozzles, and missing or damaged parts.
  • Page 5 CLEANING THE REFILLABLE CONTAINER ADJUSTMENT SWITCH Drain all chemical solutions from the refillable container The adjustment switch is easily accessible while wearing into a container approved for chemicals. Do not store the the product to turn the product on or off and also adjust the chemicals in the refillable container.

  • Page 6: Symbols In This Manual

    Do not dispose of waste batteries, waste electrical and electronic equipment as unsorted municipal waste. Waste batteries and waste electrical and electronic equipment must be collected separately. Waste batteries, waste accumulators, and light sources have to be removed from the equipment. Check with your local authority or retailer for recycling advice and collection point.
  • Page 7 R36BPS10 Handle cap Basket filter Hose Trigger Lock-on latch Spray wand Tank Shoulder strap Battery door Adjustment switch Operator’s manual Fan nozzle Shower nozzle Dual nozzle Elbow Cone nozzle Battery pack Charger Know your product...
  • Page 8 Always wear eye and ear protection Insert the spray wand into the spray wand handle. Turn the nut clockwise to when operating the product. Wear tighten. non-slip, heavy-duty protective gloves. Wear non-slip safety footwear that will protect your feet and improve your footing on slipper surfaces.
  • Page 9 Install the elbow into the spray wand Install either the cone nozzle, fan NOTE: Make sure to install the nozzles and turn clockwise to tighten. nozzle, dual nozzle, or shower nozzle securely into the elbow. into the elbow. Open the battery door. Install the battery pack.
  • Page 10 Operating the Installing the p.11 p.14 product nozzles Cleaning the Storing the product p.17 p.20 product 40°C...

  • Page 11: Operating The Product

    OPERATING THE PRODUCT 1. Open the battery door. 2. Install the battery pack. Make sure that the latch on the battery pack clicks into place. Close the battery door. 3. Turn the handle cap counterclockwise to loosen. Remove the handle cap and basket filter.
  • Page 12 NOTE: The lock-on feature can be used when spraying for an extended period of time or when covering a large area. ■ To use the lock-on feature, squeeze the trigger and slide the lock-on latch backward. ■ To release the lock-on feature, squeeze the trigger and slide the lock-on latch forward.
  • Page 13 WARNING: Do not smoke, eat, or drink while using the product. Do not spray in the direction of people or animals. WARNING: Always spray downwind. 9. Turn the adjustment switch counterclockwise to turn off the product. Operation...

  • Page 14: Installing The Nozzles

    INSTALLING THE NOZZLES 1. Turn the adjustment switch counterclockwise to turn off the product. 2. Install the elbow into the spray wand and turn clockwise to tighten. NOTE: The spray wand does not come with any attachments pre-installed. 3. a. Assemble the cone nozzle. Turn the cone nozzle cap clockwise to tighten b.
  • Page 15 d. Turn the cone nozzle clockwise. NOTE: The cone nozzle produces a scatter spray. NOTE: If the spray material does not smoothly go out of the nozzle, the nozzle may be blocked. Remove blockages and residue buildup from the nozzle. Turn the cone nozzle cap counterclockwise to loosen.
  • Page 16 b. Turn the top nozzle cap clockwise to tighten. Turn the bottom nozzle cap clockwise to tighten. c. Install the dual nozzle into the elbow. Turn the dual nozzle clockwise to tighten, NOTE: The dual nozzle produces two streams of scatter sprays. 6.

  • Page 17: Cleaning The Product

    CLEANING THE PRODUCT 1. Turn the adjustment switch counterclockwise to turn off the product. 2. Open the battery door. 3. Press the latch of the battery pack and remove it from the product. 4. Close the battery door. 5. Turn the handle cap counterclockwise to loosen.
  • Page 18 6. Drain the contents of the tank to a suitable container. 7. Fill the tank about one-third full with clean water. A small amount of mild household detergent may be added. 8. Place the handle cap onto the tank. Turn the handle cap clockwise to tighten.
  • Page 19 11. Turn the adjustment switch clockwise to turn on the product. Squeeze the trigger to start spraying. 12. Spray until the tank is completely emptied. 13. Clean the product with a clean, dry cloth and a stiff brush. Maintenance...

  • Page 20: Storing The Product

    40°C p.17 STORING THE PRODUCT 1. Clean the product with a clean, dry cloth and a stiff brush. 2. Attach the spray wand into the holder until it clicks into place. 3. Do not store chemicals in the tank. 4. Store the product in a cool, dry, and well-ventilated area that is inaccessible to children.

  • Page 21: Product Specifications

    Inlet filter 541716001 Pump type: Diaphragm pump Wand and nozzle assembly 313969004 NOTE: Visit your local special orders desk or contact RYOBI Filter type: Mesh type customer service for replacement parts. Nozzle type: WARNING! The declared vibration total values and the...
  • Page 24 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961087462-01...
