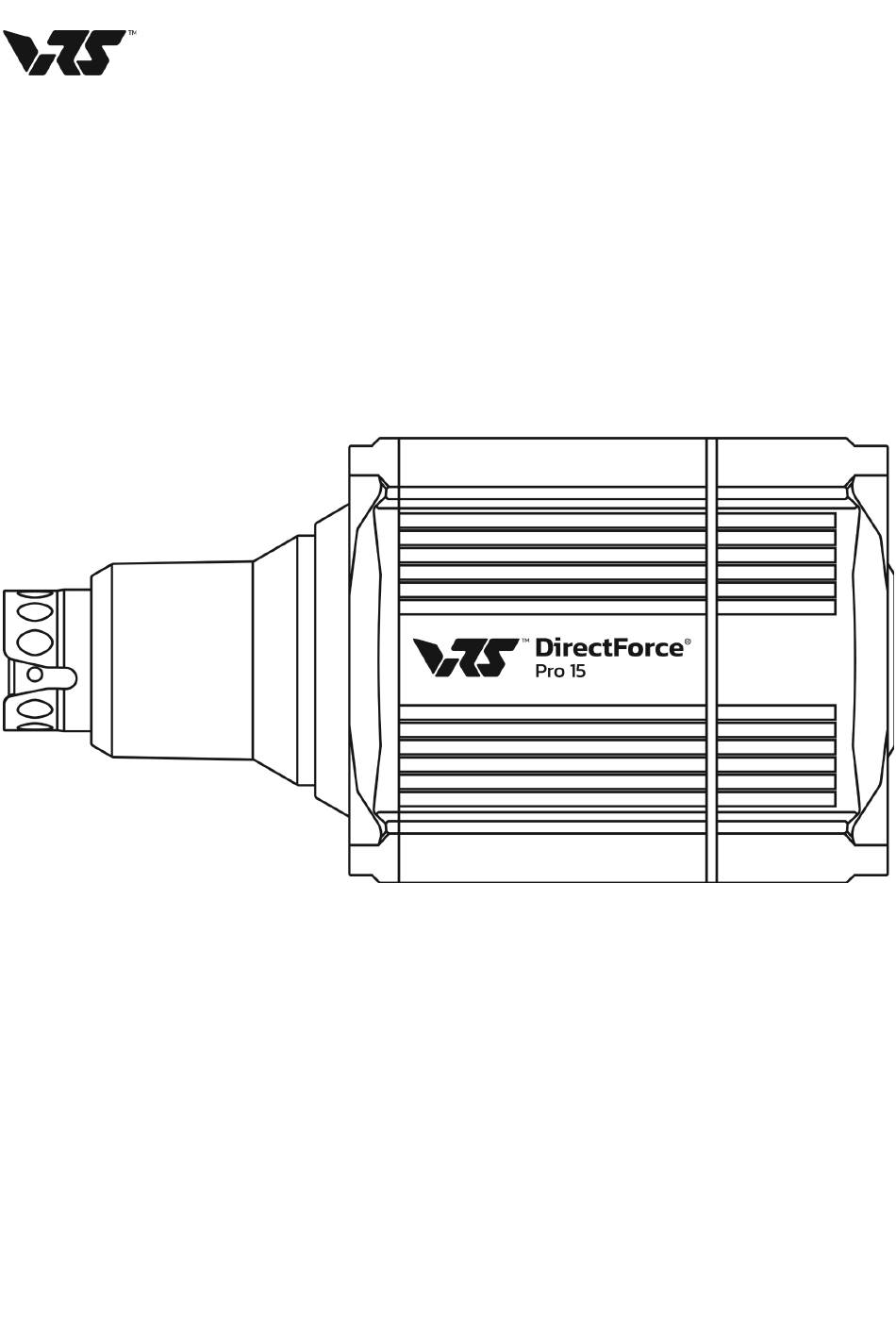

- Page 1 DFP15 Wheel Base User Manual...
- Page 2 Foreword This manual contains essential safety and usage instructions. If you can't locate the information you need or notice any discrepancies, please visit our website or contact us for assistance. Website https://vrs.racing Downloads https://vrs.racing/downloads Contact us https://vrs.racing/contact Discord server https://discord.gg/4BQJDPJUDc...
- Page 3 Certifications FCC Compliance Statement Product: VRS® DirectForce® Pro 15 Wheel Base Model: DFP-WB2 Made in Germany This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 Parents or guardians of minors should read this manual and make sure the minor follows all safety precautions. ⚠ Before using the VRS® DirectForce® Pro 15 Wheel Base read the instruction manual for important safety and health information.
-
Page 5: Table Of Contents
Table of contents What is in the box Software Connections Mounting and usage info Features & Specifications Dimensions... -
Page 6: What Is In The Box
What’s in the box VRS DFP15 Direct Drive Wheel Base AC cable/power supply (200 W) USB cable (1.6 m, Type B to Type A) E-stop dongle Silicone gap covers for Quick Release Mounting hardware* : 4x M8x16 screws, 4x washer, 4x M8 profile nut *Generic mounting solutions have been included. -
Page 7: Software
Software VRS config tool allows you to easily control the DFP15 wheelbase For config tool download, please visit the official VRS webpage: https://vrs.racing/downloads Page 7... -
Page 8: Connections
Connections Power connector Power button E-stop connector USB connector to PC Page 8... -
Page 9: Mounting And Usage Info
1. Mount the wheelbase to your rig with your preferred mounting method: Front mounting: Front flange 4x M8 threaded holes with 102.5mm PCD. Compatible with VRS Mounting Bracket. *4x M8x16 screws included.and an be used for front or bottom mount. -
Page 10: Features & Specifications
Features & Specifications Platform Motor Type 5 pole Direct Drive Permanent magnet synchronous servo motor Peak Torque 15Nm Encoder Resolution 21 bits / 10 kHz Input voltage 100 ~ 240V AC External power brick 200 W Communication Method USB Refresh Rate 1000Hz Max wheel rotation +/- 1080°... -
Page 11: Dimensions
Dimensions 102.50 78.40 Page 11... - Page 12 Thank you for ® choosing VRS If you can't locate the information you need or notice any discrepancies, please visit our website or contact us for assistance. Website https://vrs.racing Downloads https://vrs.racing/downloads Contact us https://vrs.racing/contact Discord server https://discord.gg/4BQJDPJUDc...
