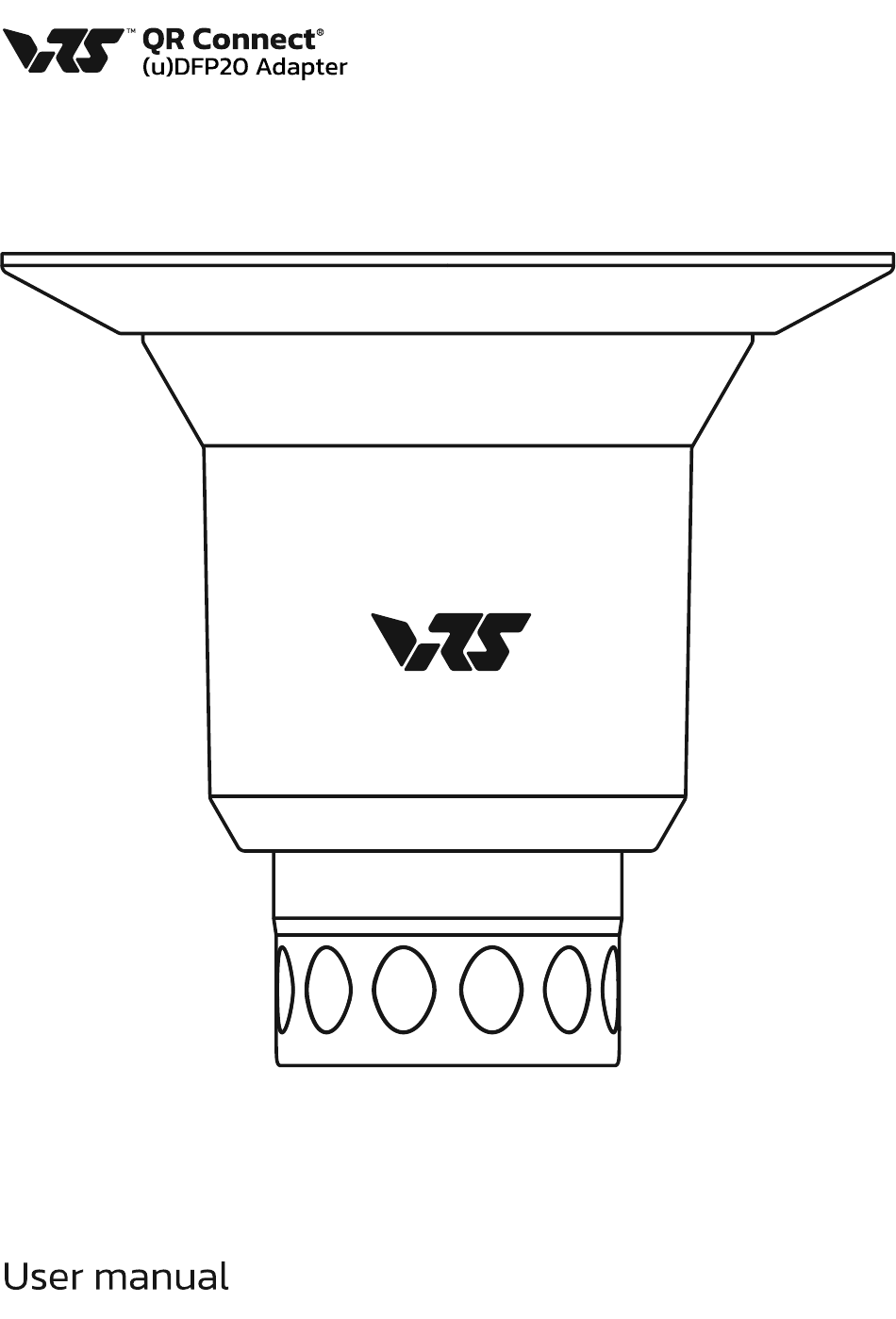

- Page 1 QR Connect (u)DFP20 Adapter User manua...
- Page 2 This manual contains essential safety and usage instructions. If you can't locate the information you need or notice any discrepancies, please visit our we site or contact us for assistance. Website https://vrs.racing Downloads https://vrs.racing/downloads Message us https://vrs.racing/contact Discord server https://discord.gg/4BQJDPJUDc...
- Page 5 What’s in the pac age...
- Page 7 Fore ord This document describes in detail how to assemble the QR Connect DPF20 Adapter. This adapter can be used to fit the latest generation VRS® steering wheels. Some other brands are also compatible with this style of Quick Release.
- Page 8 Prepare the VRS® Wheel Base V1 t fit the adapter Page 08...
- Page 10 Mount the VRS® QR Connect DPF20 Adapte Page 10...
- Page 12 Step 3 - Mount the parallel ke T Mount the parallel key as in the image below. It should be at the end of the keyway) T It is allowed to use a rubber hammer or other tools press the parallel key in) T Make sure you never damage the shaft) T Sometimes the parallel key gives too much resistance) T Then use sandpaper on a flat table, and gently sand a little material from both touching...
- Page 13 Step 4 – Mount the quick relea e haft g Slide the quick release shaft onto the motor shaft. Make sure that the cable exiting from the slip-ring is guided thought the quick release part (we advise to use tweezers)@ g Make sure the cable is NEVER clamped between mating surfaces.
- Page 14 Step 5 – Mount the PC P Click the slip-ring cable connector into the PCB( P Make sure the connection is inserted in the correct orientation, and that it fully clicks into the PCB connector( P Mount the 2 screws that are supplied in the kit( P Use the tool that is supplied in the kit, as can be seen in the image below.
- Page 15 Step 6 – (Optional) Mount the in ert W When using the other brands steering wheels than VRS®. It can be necessary to use the supplied inserts4 W For the VRS® Steering Wheel they should NOT be used4 W Click them in gentle and check that they are in the correct position.
- Page 16 Finalize the VRS® QR Connect (u)DPF20 Adapte installation S Now all parts have been mountedH S Install cables and the steering wheelH S Test if the quick release is functional, and all steering wheel light and functions work as expected.
