SoftBank H651-62M2 Manual

Wireless data terminal
Hide thumbs

Advertisement

Table of Contents

Wireless Data Terminal
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H651-62M2 and is the answer not in the manual?

Questions and answers

Summary of Contents for SoftBank H651-62M2

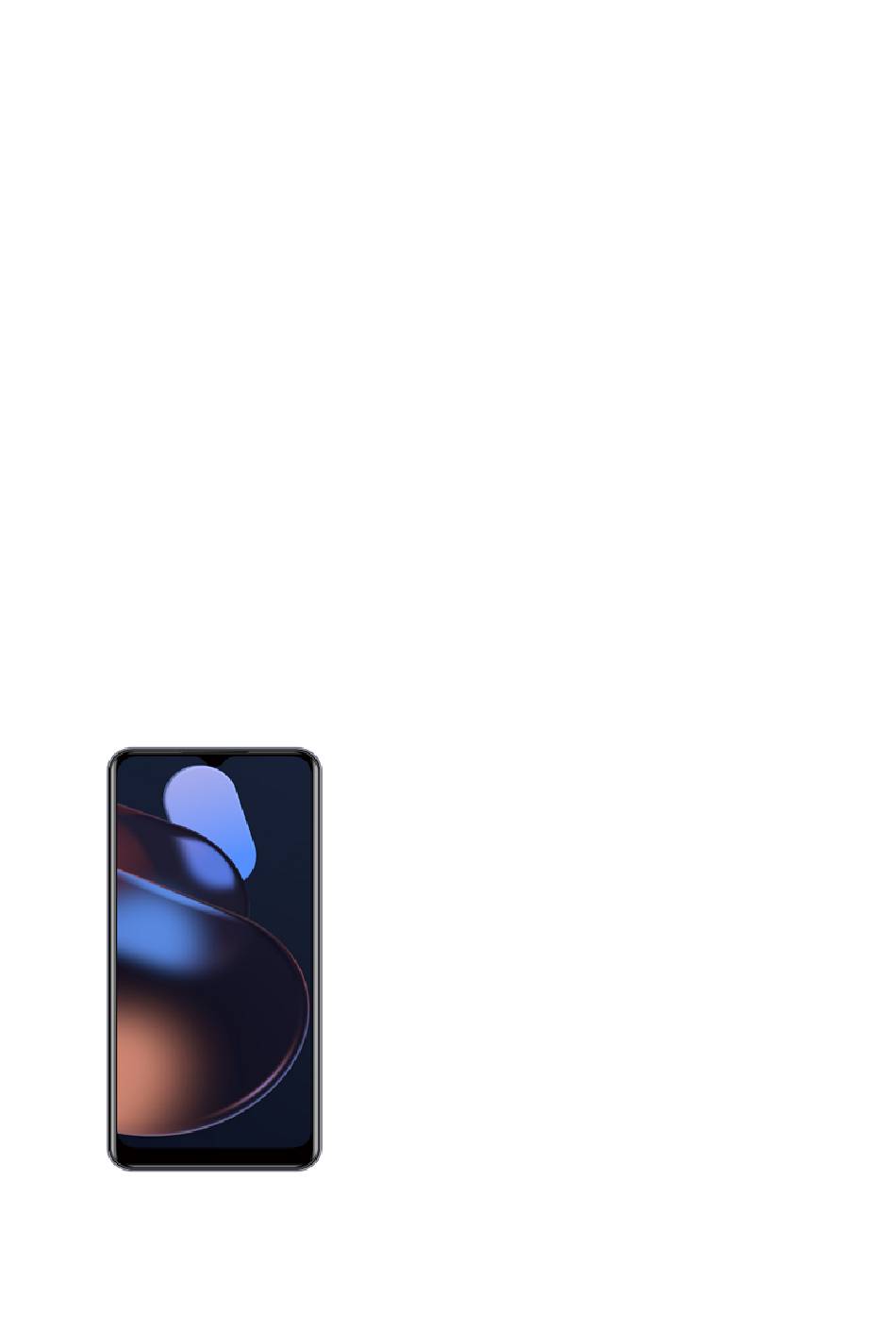

  • Page 1 Wireless Data Terminal Manual...
  • Page 2 Wireless Data Terminal Wireless Data Terminal Functions This wireless data terminal is an accessory for the Rigel commercial cleaning robot. It is installed on the robot's handle, enabling users to interact with the robot for cleaning through the terminal interface. ...
  • Page 3 Wireless Data Terminal Functions & Usage   Through this terminal display screen, operators can obtain real-time information about the cleaning robot's work, including its current location, cleaning progress, battery status, and other key details. This real-time monitoring feature enhances the operator's ability to control the robot's work, ensuring that cleaning tasks are efficiently completed.
  • Page 4  Alert display and its notification timing Appearing on display Description Appearing on display Description Standby (within the Autonomous cleaning communication range/paired) complete Machine battery level low No machine battery remaining Dustbag full Connected for wireless communication Connection for wireless Error alert ・When danger has been communication not possible...
  • Page 5 Wireless Data Terminal Power On/Off Turning the Wireless Data Terminal On  Long-press the top button of the robot to power it on Press and hold the power button on the top of the robot for 3 seconds. When the button indicator lights up and the robot's buzzer sounds, both the robot and the wireless data terminal power on.
  • Page 6 Turning the Wireless Data Terminal Off  Press the Shut Down touch button to power it off Pull down the status bar of the wireless data terminal, where you can find the 'Shut Down' option. Clicking on it will power off both the robot and the wireless data terminal.

  • Page 7: Auto Cleaning

    Auto Cleaning  Please check your wireless data terminal cellular connection in advance. Robot Operations Center (ROC) will not be connected to LTE in an area where there is no signal.  The connection status to the ROC will be shown on the top right corner of the display. After the robot powers on, click on the 'Auto Cleaning' icon on the terminal interface.
  • Page 8 Localization succeed, store the handle, the robot will start Auto Cleaning. Carry out auto cleaning and cleaning finished...

  • Page 9: Manual Cleaning

    Manual Cleaning Robot Operations Center (ROC) display, click on the 'Manual Cleaning' icon.
  • Page 10 Setting The Settings menu offers a range of functions for user customization. Users can adjust basic settings such as notification sound selection, volume levels, screen brightness, and more. Additionally, they can check the lifespan of consumable parts, access cleaning settings, perform robot self-checks, and utilize other professional features. Settings serve as the central hub for users to finely manage and personalize their robots.

  • Page 11: Safety Warnings

    Safety Warnings About safety Warnings IMPORTANT SAFETY INFORMATION: Please read and understand these Safety Warnings prior to unpacking and using the machine. Warnings presented here are intended to warn the user of potential harm to the use and other persons as well as damage to property.
  • Page 12 Description of Symbols The following symbol categories explain the level of harm or damage can occur if warnings are not observed and equipment is used incorrectly. Please be sure you understand these symbols and their correlating meanings before reading the remainder of this manual.
  • Page 13 Handling the wireless data terminal DANGER Do not drop or throw. Subjecting it to strong impact may cause the battery pack in the wireless data terminal to leak, overheat, rupture, or ignite, and otherwise result in injury, electric shock, damage, malfunction, overheating, leakage, chemical explosion, or other damage to the machine, battery charger, battery or wireless data terminal.
  • Page 14 Pictorial Symbols Refer to the labels on each piece of equipment (the machine, battery charger, battery) Do not short-circuit. Do not disassemble. Do not immerse in water or other liquid. Machine Disposal and Recycling The machine you have purchased is designed and manufactured with recyclable, high-quality materials and components. When disposing of the machine, check that it is being disposed of properly as industrial waste differentiated from general and business waste according to regional and municipal regulations by request to an industrial waste disposal operator.

  • Page 15: Fcc Compliance Statement

    Softbank Robotics corp. Product Name: Wireless Data Terminal Model: H651-62M2 FCC ID: 2ATI9-H65162M2 IC ID 25110- H65162M2 FCC Compliance Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 16 Softbank Robotics corp. 2. This device must accept any interference received, including interference that may cause undesired operation. Body-worn operation Conformité à la règlementation Canadienne Le présent appareil est conforme aux CNR Innovation, Sciences et Développementéconomique Canada applicables aux appareils radio exempts de licence.
