Kidde COMMERCIAL 2010-2-PAK-NET Registration Manual

2010-2-PAK-NET Panel Activation Key
Registration Guide
EN CS DA DE ES FI
EN: Registration Guide
Description
The 2010−2-PAK-NET Panel Activation Key (PAK) expands
the network capability on compatible addressable control
panels with firmware 3.1 or higher.
Two network expansion models are available, as shown in the
table below.
Model Description
2010−2-PAK-NET128 Increases the network capability to 32 nodes
and 128 loops [1]
Increases the network capability to 64 nodes
2010−2-PAK-NET256
and 256 loops
[1] The default network capability with no PAK installed is 32 nodes
and 32 loops.
Note: A new PAK is required for each control panel in the
network that you want to expand.
© 2024 Carrier. All rights reserved.
FR HU IT NL NO PL PT RO RU SK SV TR
Registration
Follow these steps to register or unregister the PAK. Installer
level access is required.
To register the PAK:
1. Insert the PAK into either of the USB type A slots on the

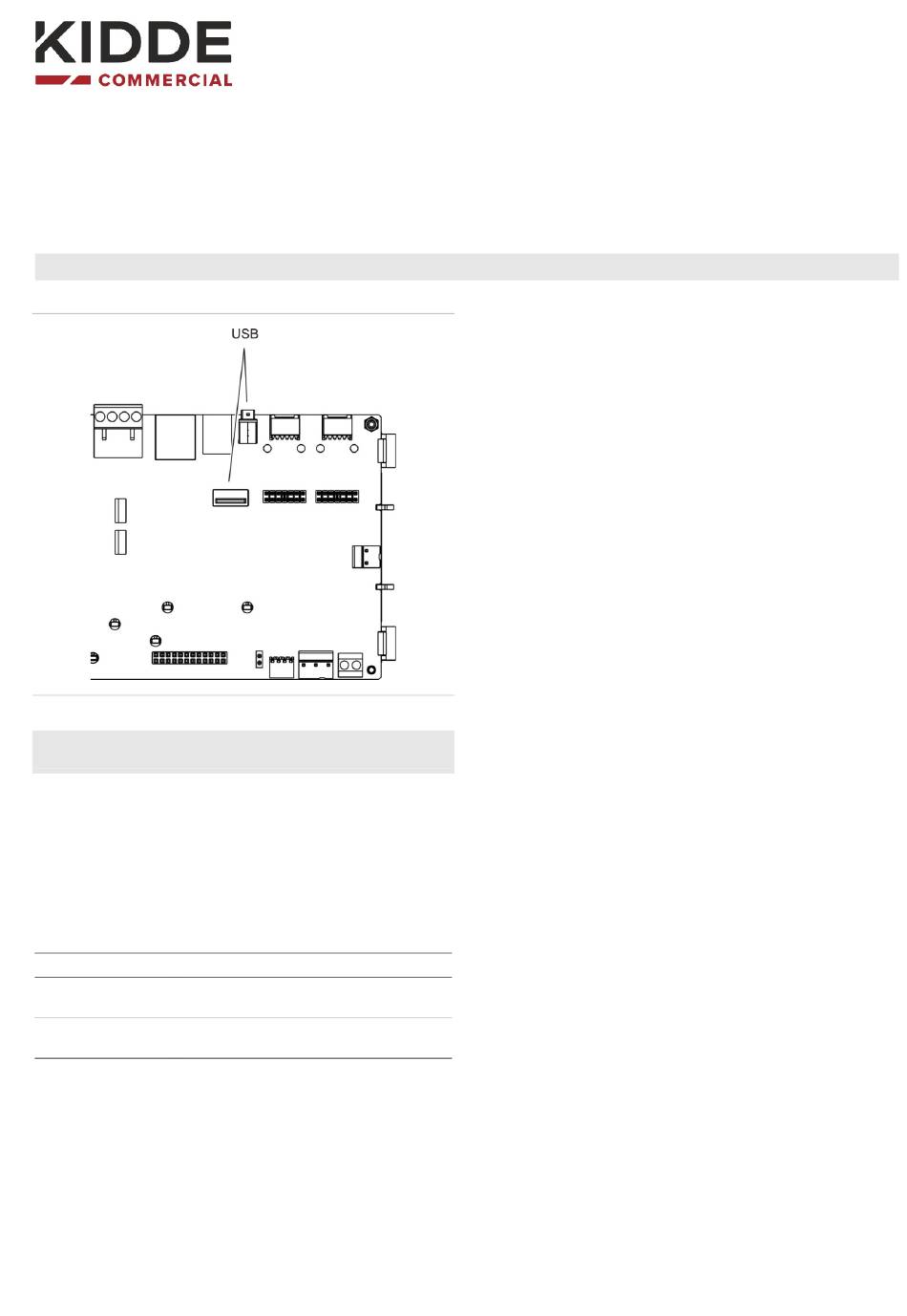

control panel main board (see figure).
2. On the control panel LCD, select Panel Setup, and then
select Panel Activ. Key.
The LCD displays two options: Register New PAK and
Unregister PAK.
3. Select Register New PAK. The PAK information is
displayed on the LCD. Confirm that the details are correct
and press Continue.
The PAK information includes: The PAK type, the PAK
serial number, and the host control panel serial number
(added when registration is complete).
4. Press Register, and then press Yes to confirm the
registration.
5. Press Apply to apply the registration details to the panel,
or Continue to register more PAKs for the same control
panel.
6. Remove the PAK from the USB slot.
The control panel is now configured for use in a network with
up to 32 nodes and 128 loops or 64 nodes and 256 loops
(depending on the PAK used).
To unregister the PAK:
1. Insert the PAK into either of the USB type A slots on the
control panel main board (see figure).
2. On the control panel LCD, select Panel Setup, and then
select Panel Activ. Key.
3. Select Unregister PAK and follow the on-screen
instructions.
4. Remove the PAK from the USB slot.
The control panel network capability is now restored to the
factory default setting.
1 / 20 P/N BCN-3100030-ML • REV 001 • ISS 18OCT24
