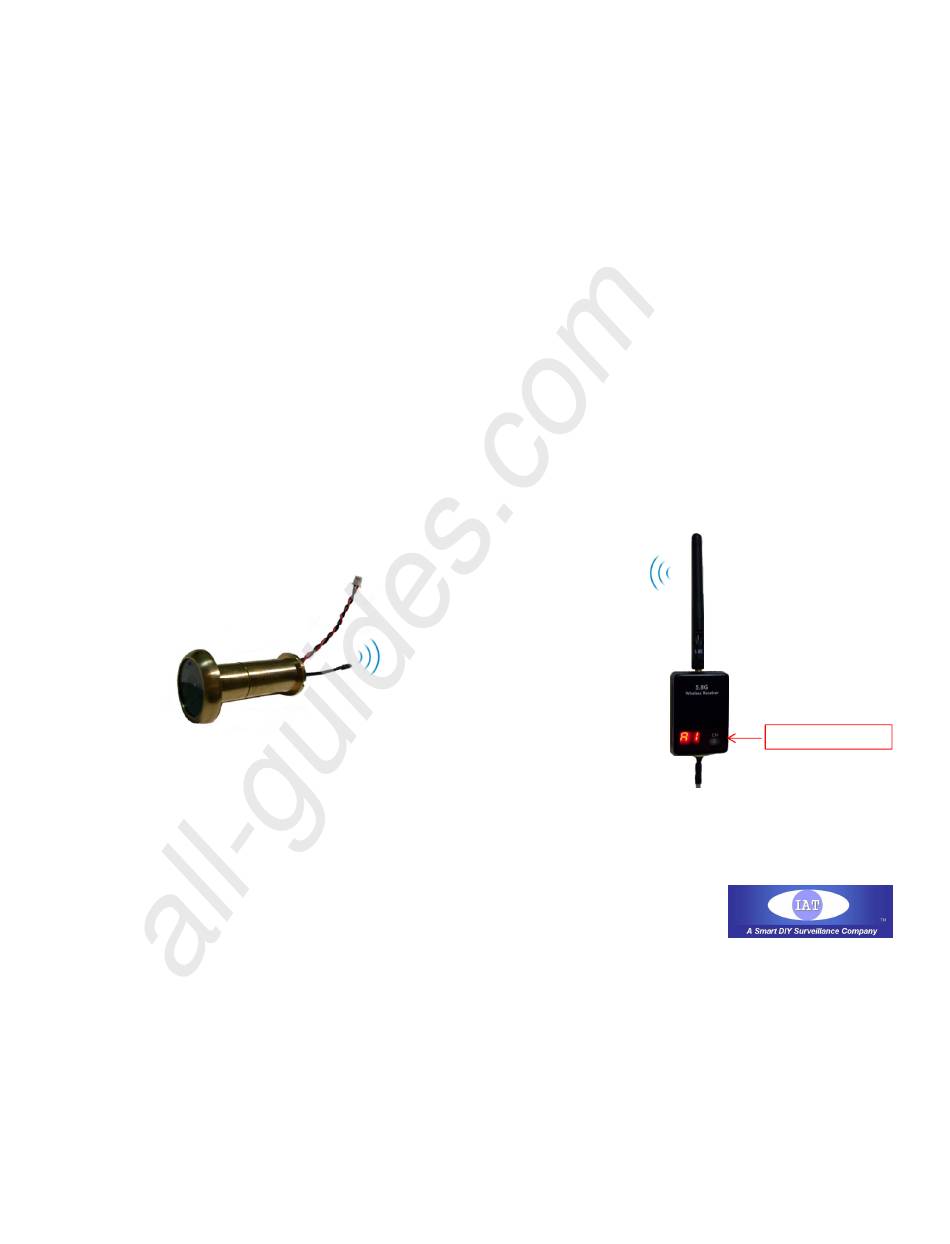

User Manual
5.8GHz Door Camera with 32 Channel Receiver
Model: W90-2-5.8GHz
Band control button
Low LUX 5.8GHz Door camera
(0.008LUX/F1.2)
32-Channel Receiver
Low power Consumption
Web site: www.peephole-store.com
www.iat101.com
Contact us email: ia-tecs@hotmail.com
shop@iat101.com
Advertisement
Summary of Contents for IAT W90-2-5.8GHZ
- Page 1 All manuals and user guides at all-guides.com User Manual 5.8GHz Door Camera with 32 Channel Receiver Model: W90-2-5.8GHz Band control button Low LUX 5.8GHz Door camera (0.008LUX/F1.2) 32-Channel Receiver Low power Consumption Web site: www.peephole-store.com www.iat101.com Contact us email: ia-tecs@hotmail.com...
- Page 2 All manuals and user guides at all-guides.com Simple Electrical Wire Diagram for 5.8GHz Door Peephole Camera (Model #: W90-2-5.8GHz) 5.8GHz receiver placing on wall 5.8GHz Line-on-sight Wireless Signal door 1.5 meter-long (4.5ft) ultra-thin wire to connector box Connector Box 5 V DC adapter...
-
Page 3: Package Includes
All manuals and user guides at all-guides.com Package Includes: 5.8GHz Door Camera 5. DC Connector for camera 5.8GHz 32-Channel Receiver (with Audio Video outputs) 6 .Connector Box for receiver 5 meters long ultra-thin cable 7. 10 meters long RCA cable 1.5 meters long ultra-thin cable 8. -
Page 4: Installation Steps
All manuals and user guides at all-guides.com Installation Steps: Before you install the door camera on door, we would recommend you test the whole system as described in followings For Receiver portion: a) Plug the 1.5 meters long ultra-thin cable (4) between the receiver (2) and Connector Box (6), and then plug the 10meters long RCA cable (7) to video output ( yellow plug) of the Connector Box (6). - Page 5 All manuals and user guides at all-guides.com Wireless Door Camera Product Specifications: Low LUX 5.8GHz Door camera (0.008LUX/F1.2) Door hole size: 14mm; Frequency 5.8GHz Band · Door Thickness: 38 -60 mm · RF output power 25mW Transmission Range 100 meters (Line-of-Sight) NTSC: 720 x 480;...
- Page 6 All manuals and user guides at all-guides.com Low-power consumption 32-channel 5.8GHz Receiver Product Specs Receiver Channel Operating guide: Short press button for change channel digital display 1,2,3,4,5,6,7,8 (circle) Long press the button for 2 sec. till the band digital display change ABEF (circle) Frequency Table for 32 Channels Band 5865M...
- Page 7 All manuals and user guides at all-guides.com Additional compatible Accessories in our store For buying item, please contact seller ia-tecs@hotmail.com 18dBi High-gain antenna 11dBi High-gain antenna www.peephole-store.com www.iat101.com email: ia-tecs@hotmail.com shop@iat101.com...
