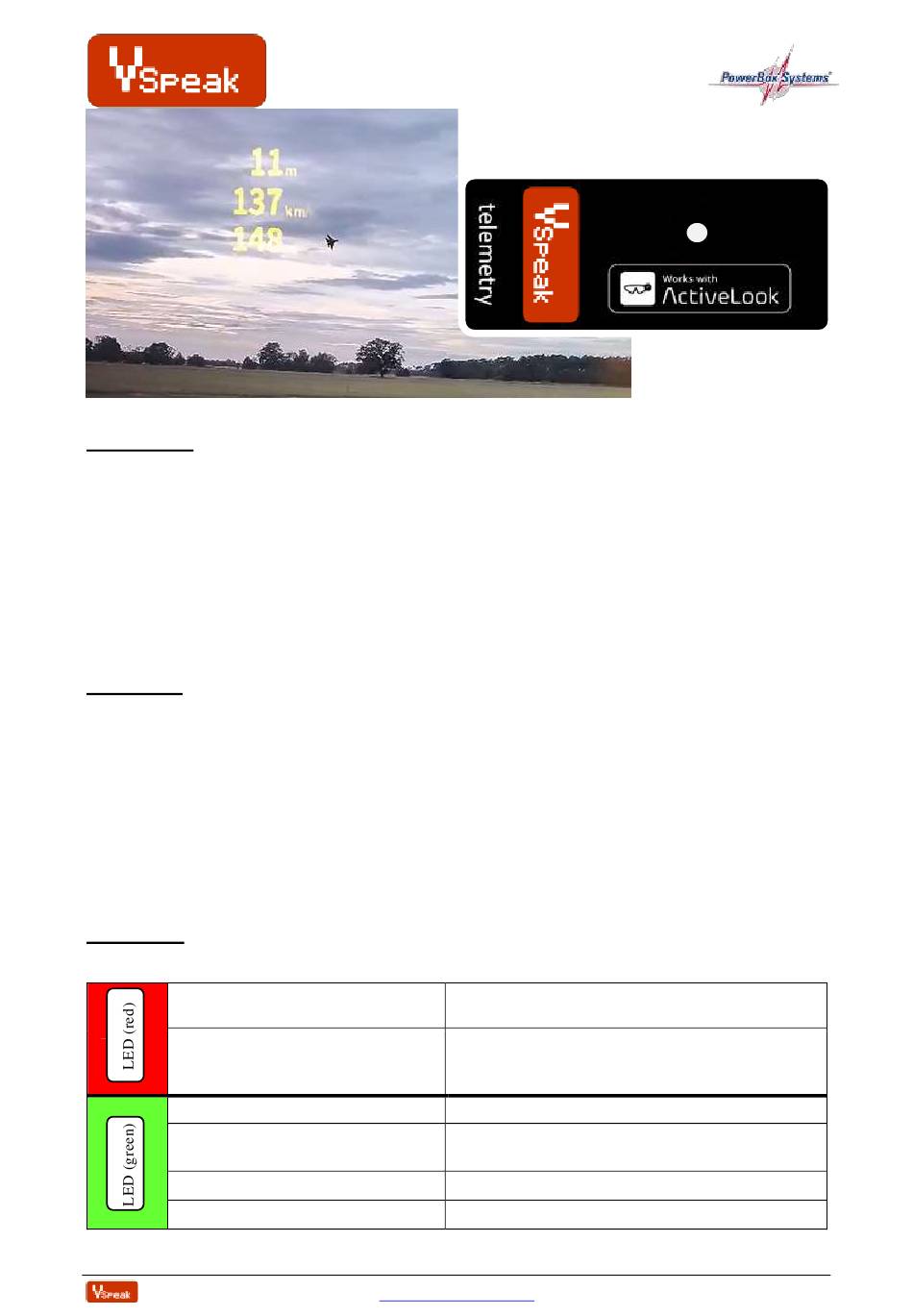

VSpeak -glasses Manual

Introduction
With the "VSpeak-glasses" module, all telemetry data from the Powerbox P²Bus can be displayed on AR glasses
based on "ActiveLook" - with the exception of GPS coordinates. A maximum of 3 values can be displayed.
Furthermore, 1 servo channel and 1 timer/stopwatch can be displayed.
The values to be displayed are freely configurable.
The data transfer from the "VSpeak-glasses" module to the glasses takes place via Bluetooth (BLE).
To set the "VSpeak-glasses" module, the module sets up a web access point so that the setting can be made equally
with any WLAN-enabled device (mobile phone, tablet, notebook, etc.).
The "VSpeak-glasses" module is controlled with a servo port that can also be freely configured (control: factory
setting Servo 18).
Connection
The "VSpeak-glasses" module is connected using the servo patch cable included in delivery either to the
transmitter at the "SERVO/RPM/P²Bus" port - or to an additional receiver that outputs the entire P²Bus. Please
refer to the operating instructions for your Powerbox device to find out how to set the respective port on the
transmitter or the additional receiver to P²Bus.
Program on servo channel 18, for example, a 3-way switch with the following values :
... Access point (WLAN)
-100%
The "VSpeak-glasses" module is now ready for operation.
Familiarize yourself with your glasses by downloading the ActiveLook app onto your mobile phone.
Put the glasses into operation and make the desired settings (e.g. brightness) using the ActiveLook app.
Status LED
The operating status of the "VSpeak-glasses" module is displayed with a two-color LED.
mostly ON
(shortly OFF every second)
flashing every 5 seconds
flashing every 5 seconds
double flash every second
quick flashing
solid ON
g
lasses : 1.0
glasses (P²Bus)
-
... Standby (OFF)
0%
Modul is switched on, no P²Bus signal has been received
yet
Standby, P²Bus was/is received
Module can be set to the desired mode using the control
servo channel
Bluetooth activated, glasses not yet connected
Bluetooth activated, glasses "connected"
Control of the glasses display
web access point switched on
Reset to factory settings has been done
