Summary of Contents for ICO iCO-SP-02

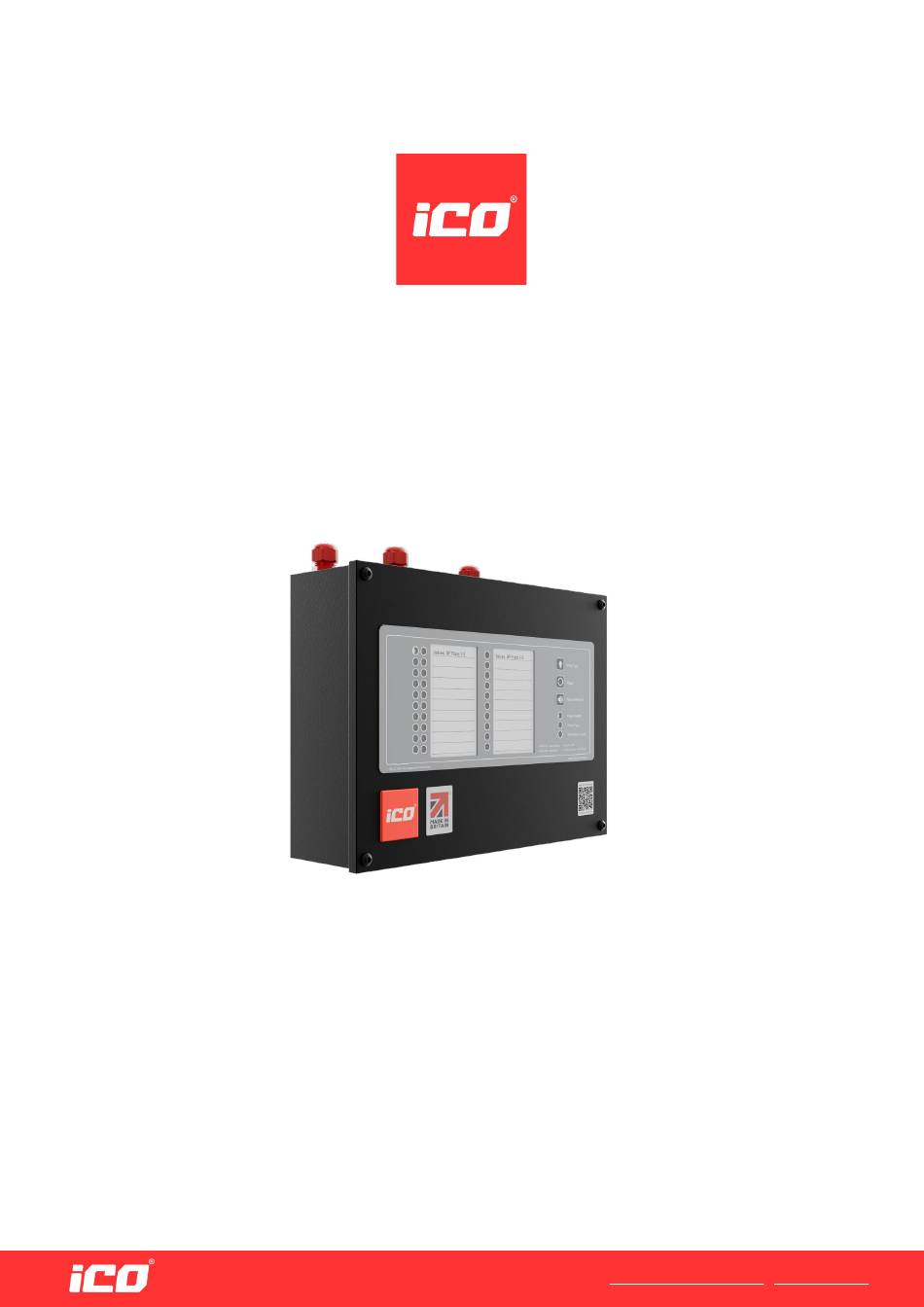

- Page 1 Next Gen Fire Suppression Products INSTALLATION AND OPERATING MANUAL Sprinkler Monitoring Panel ® 07.11.24 Rev02 enquiries@ico-products.com | ico-products.com...
- Page 2 This manual contains only our recommended guidelines for installing the iCO® Sprinkler Monitoring Panel The data contained within this manual is provided for informational purposes only. iCO® believes this data to be accurate; however, all dimensions and data are approximate, and this document is presented without any guarantee or warranty.
- Page 3 Panel Description The iCO Sprinkler Monitoring Panel is a purpose made sprinkler monitoring panel for valves, flow switches or other monitored equipment. Designed to comply with the requirements of the following standards. BS EN 12845 Fixed firefighting systems. Automatic sprinkler systems. Design, installation, and maintenance.
-
Page 4: Technical Data
Check every 8mins if battery is detached. Manual controls: Lamp test, reset, silence/resound alarm. Battery Back-up: 24hr standby and 30mins in alarm. Maximum Number of Devices per Zone: 5 monitored devices per zone on 100m of cable. 07.11.24 Rev02 enquiries@ico-products.com | ico-products.com... - Page 5 Standards Compliance The iCO Sprinkler Monitoring Panel is a purpose made sprinkler monitoring panel for valves, flow switches or other monitored equipment. Designed to comply with the requirements of the following standards. BS EN 12845 Fixed firefighting systems. Automatic sprinkler systems. Design, installation, and maintenance.
- Page 6 Up to 5 devices can be connected per zone. NOTE Alternatively, the zones can Unused zone be connected directly to a fire alarm output unit for connection to larger systems. enquiries@ico-products.com | ico-products.com 07.11.24 Rev02...
- Page 7 Each monitored circuit should have end of line resistors as detailed below. Up to 5 devices can be connected per zone. Terminals for the monitored device. Wired into Normally Open contacts. To clear faults on unused zones enquiries@ico-products.com | ico-products.com 07.11.24 Rev02...
- Page 8 Template for the zone labels Complete the zone label description in the boxes below. Print it out, cut it to size and insert it in the sleeve in the back of the panel cover. Zone description labels 07.11.24 Rev02 enquiries@ico-products.com | ico-products.com...
-
Page 9: Project Details
Sprinkler Monitoring Panel Commissioning Schedules Project Details Installing Company Name Project Number Project Address Client Name Client Company Date Extent of sprinkler protection General Checks Ensure all cabling is fire rated where possible. Ensure that there are no open or closed circuits creating faults. -
Page 10: Fire Condition
Sprinkler Monitoring Panel Commissioning Schedules Fire Condition Test each flow/pressure switch to confirm that the red LED changes from off to continuously illuminated. (flashing LED indicates a wiring fault on the circuit). Check than the fire relay operates on any continuous red LED. - Page 11 Sprinkler Monitoring Panel Commissioning Schedules Party Connections Details of 3 Party Connections Connected to Tested Fire Relay 1 Fire Relay 2 Fault Relay 1 12V Out Further comments Engineer Name Signature Date 07.11.24 Rev02 enquiries@ico-products.com | ico-products.com...
-
Page 12: Troubleshooting Guide
Press reset to clear the battery fault. After inserting the battery, it can take up to 1 minutes for the fault to Battery fault will not clear clear. The board will only check for the presence of the battery every 1 minute. enquiries@ico-products.com | ico-products.com 07.11.24 Rev02... - Page 13 Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques EN 62311: 2008 Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz - 300 GHz) 07.11.24 Rev02 enquiries@ico-products.com | ico-products.com...
- Page 14 7. Additional information: The technical documentation for the machinery is available from the address above. Signed for and on behalf of: iCO Products Place of issue: London UK, SL7 3ND Date of issue: 12th January 2021 Name: Steve Lloyd-Jones Function: Director Signature: enquiries@ico-products.com | ico-products.com 07.11.24 Rev02...
-
Page 15: Copyright Information
Copyright Information This document may not be reproduced, in whole or in part, by any means without the prior express written permission of the copyright owner. All iCO® documentation and hardware are copyrighted with all rights reserved. is a registered trademark. - Page 16 Failure to ensure that all conductive accessible parts of this equipment are adequately bonded to the protective earth will render the equipment unsafe. 07.11.24 Rev02 enquiries@ico-products.com | ico-products.com...
- Page 17 Disclaimers The information contained in this manual is as accurate as possible. iCO® does not guarantee that this manual is technically correct, complete, or free from writing problems or that this product is free from minor flaws. In accordance with our policy of continuing product and system improvement, iCO® reserves the right to change designs or specifications without obligation and without further notice.
- Page 18 BS1 5HX iCO Products is a member of the Fire Industry Association and an ISO 9001 certified company. We reserve the right to update or modify any information. All values, information, images and illustrations in this brochure, data sheets and all other...
