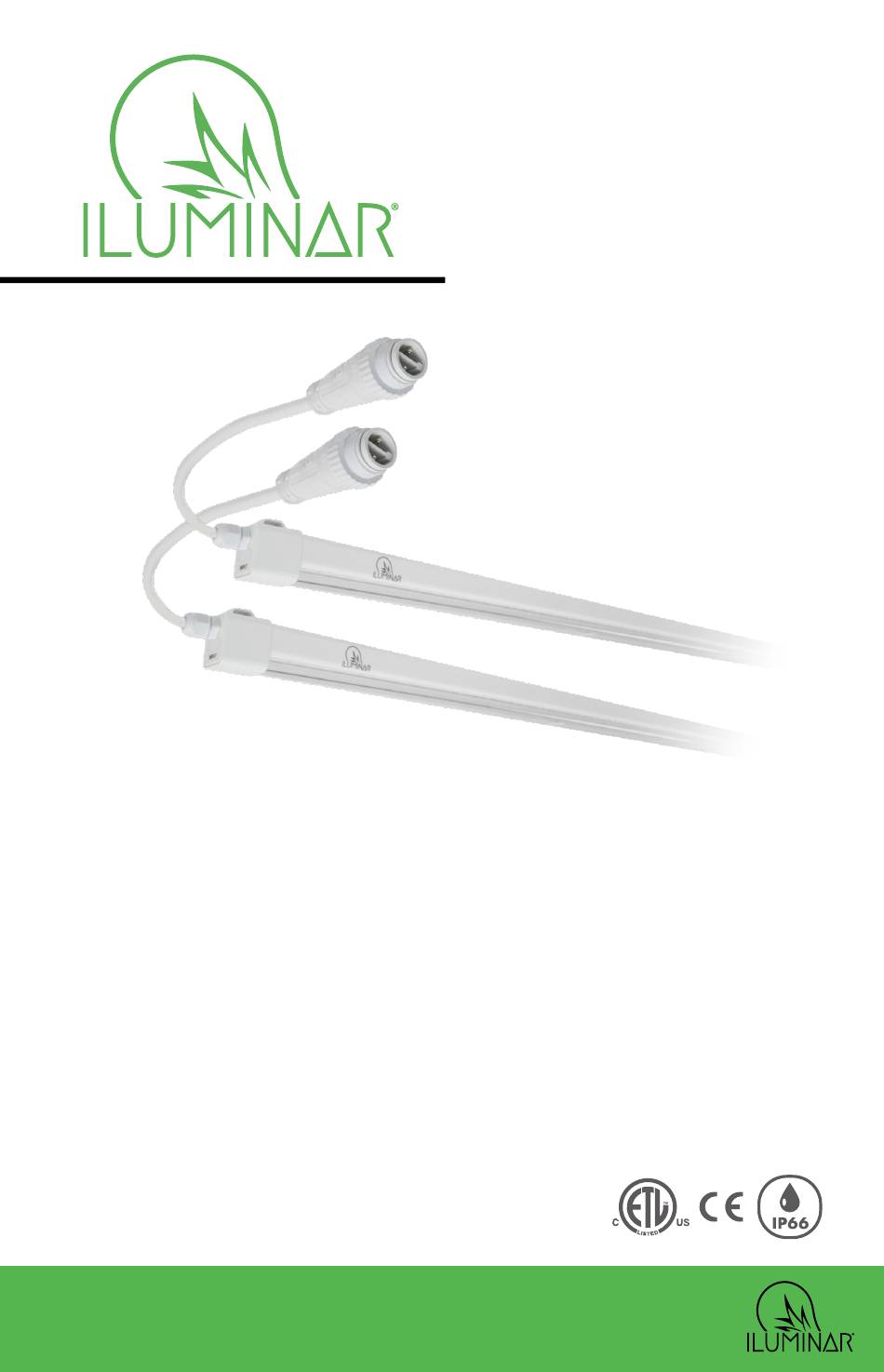

- Page 1 CLONE 18W USER MANUAL 110-277V 1-877-540-5588 IL-CLN18 iluminarlighting.com sales@iluminarlighting.com...
- Page 2 Daisy Chain Instructions ........Important Cautions & Warranty ......Please read this manual thoroughly prior to installing or operating the ILUMINAR Lighting LED CLONE 18W • Observe all safety precautions (see page 8), seek the services of a qualified electrician, installation professional, or call ILUMINAR Lighting technicians for assistance.
- Page 3 WATTS: VOLTAGE: 100-277V CLONE 18W SKU: IL-CLN18 LED Lighting Solution TECHNICAL SPECS 110-277V Input Voltage 0.15A - 0.065A Input Current 18W (36W total Wattage) Input Power Color Temperature 9,000K 40 μmol/s 0 - 35°C / 32-95°F Ambient Temperature Min Power Factor 54,000+ hours LED Lifespan (90% of Life) 18W LED SPECTRUM...
-
Page 4: Hardware And Accessories
HARDWARE AND ACCESSORIES The LED CLONE 18W can be hung from rope ratchets or can be mounted to a rack. Before you begin installation, check that you have all the necessary parts to begin. IN THE BOX 2 Led Clone Fixture... -
Page 5: Hanging Installation
HANGING INSTALLATION Install the Mounting Clips to the ceiling. Atach your fixture to the Mounting Clips. 1-877-540-5588 iluminarlighting.com sales@iluminarlighting.com... -
Page 6: Connection Instructions
Lock by twisting in opposite directions. CAUTION when handling your ILUMINAR Lighting Fixture. The LED array should NOT come in contact with sharp objects. DO NOT touch diodes or apply direct force to the diodes as this can/will cause permanent damage. -
Page 7: Daisy Chain
DAISY CHAIN Connect your LED Clone Fixtures as shown in diagram below to Daisy chain. Make sure cover the end of the circuit with caps. 1-877-540-5588 1-877-540-5588 iluminarlighting.com iluminarlighting.com sales@iluminarlighting.com sales@iluminarlighting.com... - Page 8 Do NOT use sulfur vaporizers. GUARANTEE At ILUMINAR Lighting, we stand behind our products and our technology as well as our customers. All ILUMINAR Lighting LED fixtures are backed by our 5-Year Guarantee. Please visit our website iluminarlighting.com/warranty for more information.
