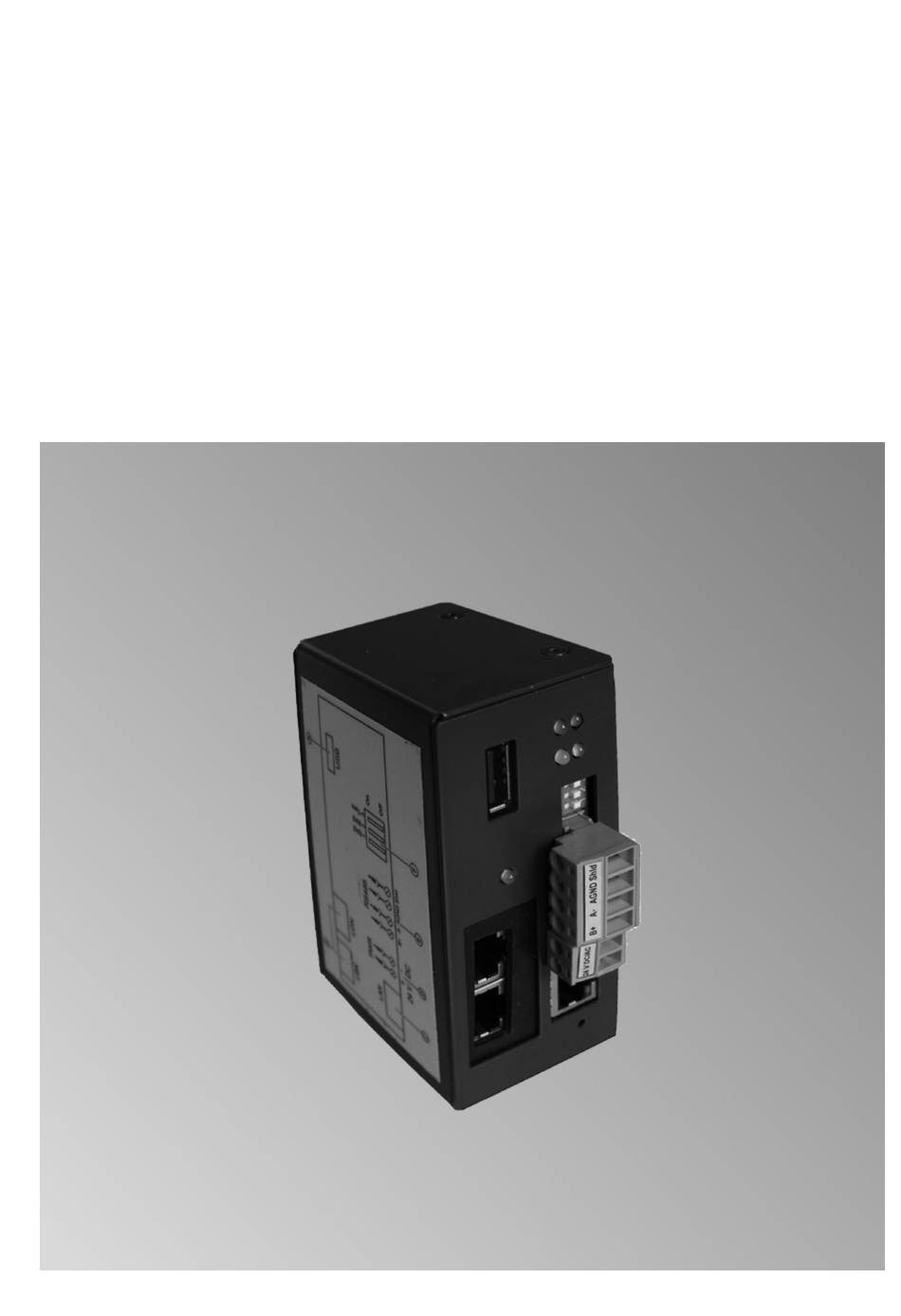

- Page 1 VIESMANN Installation and service instructions for contractors Vitogate 300 Type BN/MB BMS communication with heating systems via BACnet and Modbus VITOGATE 300 Please keep safe. 5837535 GB 5/2024...
-
Page 2: Safety Instructions
Safety instructions Safety instructions Please follow these safety instruc- tions closely to prevent accidents and material losses. Safety instructions explained Danger Note This symbol warns against the risk Details identified by the word "Note" of injury. contain additional information. Please note This symbol warns against the risk of material losses and environmen- tal pollution. -
Page 3: Repair Work
For installation and replacements, Replace faulty components only use only Viessmann original parts with genuine Viessmann spare or parts approved by Viessmann. parts. Safety instructions for operating the system... - Page 4 Safety instructions Safety instructions (cont.) Extractors Danger The simultaneous operation of the Operating appliances that extract air to boiler and appliances that extract the outside (extractor hoods, extractors, air to the outside can result in life air conditioning units, etc.) can create threatening poisoning due to a negative pressure.
-
Page 5: Table Of Contents
Disposal of packaging ................Symbols ....................Intended use ..................Product information ................Maintenance parts and spare parts ............Viessmann Partnershop ..............■ Viessmann spare part app ..............■ Preparing for installation ........................ Installation sequence Sequence overview ................Installing the Vitogate 300 .............. -
Page 6: Information Disposal Of Packaging
Information Disposal of packaging Please dispose of packaging waste in line with statu- tory regulations. Symbols Symbol Meaning Reference to other document containing further information Step in a diagram: The numbers correspond to the order in which the steps are carried out. Warning of personal injury Warning of material losses and environ- mental pollution... -
Page 7: Product Information
Intended use presupposes that a fixed installation in ted and will result in an exclusion of liability. Incorrect conjunction with permissible, system-specific compo- usage also occurs if the components in the Viessmann nents has been carried out. system are modified from their intended function. -
Page 8: Preparing For Installation
Preparing for installation Preparing for installation Functions The Vitogate 300, type BN/MB enables system users to utilise the following functions in conjunction with a BACnet or Modbus control system: ■ Transferring heating system operating states ■ Setting heating system parameters ■... -
Page 9: Installation Sequence
Installation sequence Sequence overview Procedure Responsibility Page Install the Vitogate 300 and power supply unit. Contractor If not yet completed: Contractor See "LON communica- Install the LON communication module in the Vitotronic tion module" installation control unit. and service instruc- tions. -
Page 10: Overview Of Connections
Installation sequence Overview of connections Vitogate 300 DIP switch for RS485 interface: 1 Bias voltage 2 Bias voltage 3 Terminator 120 Ω RS485 connection: Interface for BACnet MS/TP or Modbus RS485 24 V power supply: Power supply unit, secondary Term side BIAS BIAS... -
Page 11: Making The Lon Connection
Installation sequence Making the LON connection The Viessmann LON is designed for "line" bus topol- All Viessmann appliances are connected with RJ45 ogy with a terminator at both ends (accessories). connectors. The Viessmann LON always requires The transfer distances for LON are subject to the elec- cores "1"... -
Page 12: Making The Connection To The Bacnet Or Modbus
Installation sequence Making the LON connection (cont.) Connection with LON cable, on-site cable and LON socket ≤ 900 m Fig. 6 Installation spacing 900 m (with LON sock- ≤ ets) Vitotronic control unit On-site cable Vitogate 300 LON sockets Terminator Up to 30 subscribers LON cable, 7 m long Making the connection to the BACnet or Modbus... -
Page 13: Power Supply Independent Of The Mains Isolator
Installation sequence Power supply (cont.) +24 V GND 24 V DC 100-240 V AC GNYE Fig. 7 Vitogate 300 Junction box (on-site) Power supply 100 to 240 V~, 50 to 60 Hz Vitotronic control unit power supply (plug fÖ Fuse (max. 16 A) Power supply unit Mains isolator, 2-pole, on site (if installed) 1. - Page 14 Installation sequence Power supply (cont.) +24 V GND 24 V DC 100-240 V AC GNYE Fig. 8 Vitogate 300 Mains isolator, 2-pole, on site (if installed) Power supply 100 to 230 V~, 50 to 60 Hz Vitotronic control unit power supply (plug fÖ...
-
Page 15: Commissioning And Adjustment
Commissioning and adjustment Display and controls Flashes yellow: Device sends data. Power Illuminates green: Power ON, operating voltage 'live' Status Status display: Red, green, orange Explanations: See the following table Reset Reset button for restoring the factory set- tings and activating the DHCP server Term BIAS BIAS... -
Page 16: Updating Lon Subscriber List
Control unit is fault manager Control unit is not fault manager. Device is fault manager. Parameter/code "79:1" in the "Gen- Code "79:0" eral" group Viessmann system number Viessmann system number — Parameter/code "98:1" in the "Gen- Code "98:1" eral" group... -
Page 17: Making The Connection To The Vitogate 300 Configuration Webserver
Commissioning and adjustment Commissioning the Vitogate (cont.) Making the connection to the Vitogate 300 configuration webserver An IP address is usually automatically assigned to the If a static IP address is to be used, make the following computer if the DHCP server has been activated. settings on the computer: ■... -
Page 18: Restoring Factory Settings
Commissioning and adjustment Functions of the reset button (cont.) Press and hold the reset button on the Vitogate 300 for at least 10 s, but no longer than 15 s. While the reset button is pressed, the status LED flashes green. As long as the DHCP server is deacti- vated, the status LED flashes alternately red and green. -
Page 19: Specification
Specification Specification Vitogate 300, type BN/MB Mains voltage V /~ 12 to 24 Power consumption Max. 320 Rated output Max. 3.85 Frequency range 47 to 63 Permissible ambient temperature Operation °C 0 to 45 ■ Handling and storage °C 10 to +65 −... -
Page 20: Appendix Final Decommissioning And Disposal
Appendix Final decommissioning and disposal Viessmann products can be recycled. Components For decommissioning, isolate the system from the and substances from the system are not part of ordi- power supply and allow components to cool down nary domestic waste. where appropriate. -
Page 21: Certificates
Certificates Declaration of conformity We, Viessmann Climate Solutions SE, D-35108 Allen- dorf, declare as sole responsible body that the named product complies with the European directives and supplementary national requirements in terms of its design and operational characteristics. Using the serial number, the Declaration of Conformity can be found on the following website: www.viessmann.co.uk/eu-conformity... -
Page 22: Keyword Index
