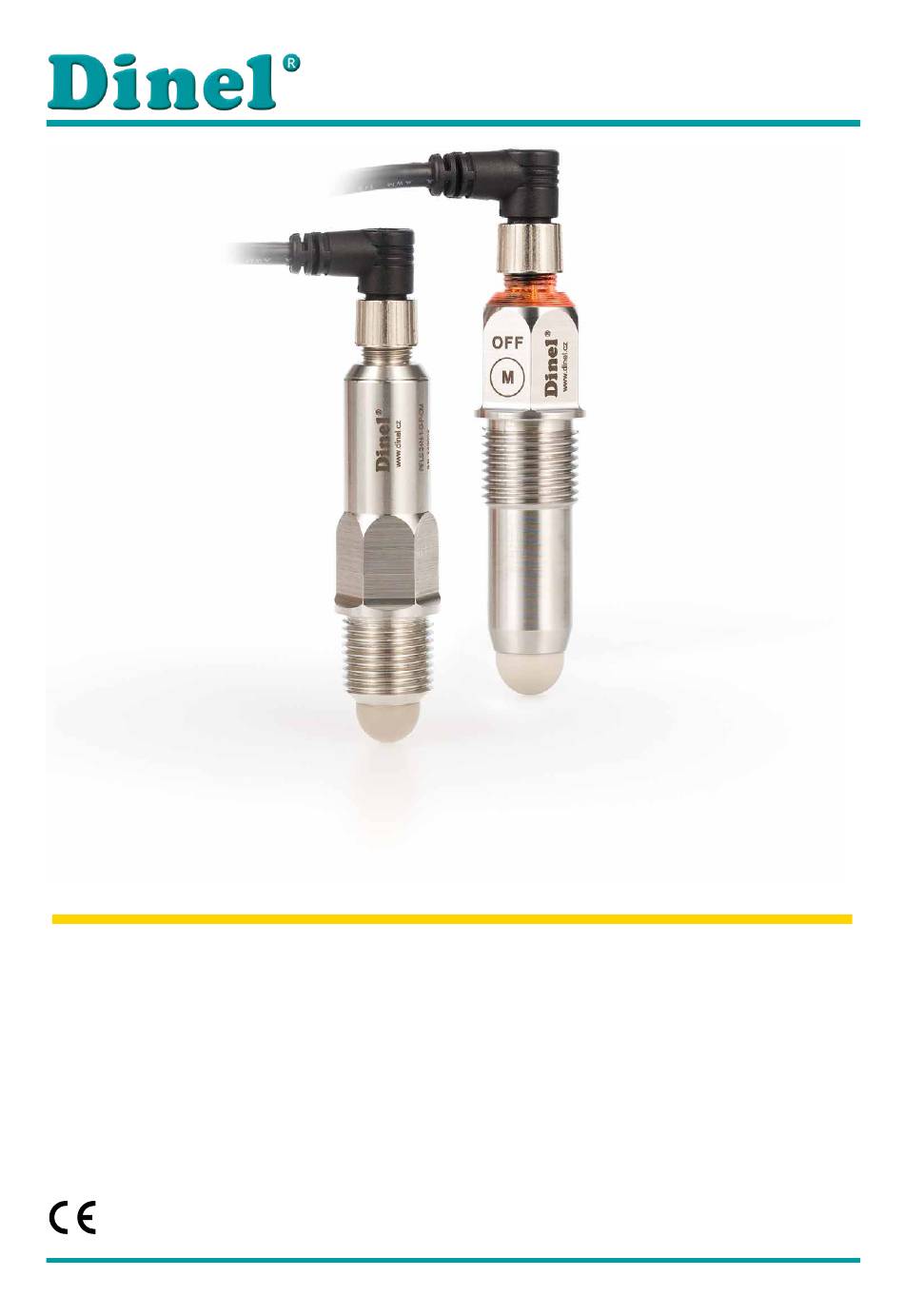

Dinel RFLS-24 Instruction Manual

High-frequency limit level sensor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

INSTRUCTION MANUAL

High-frequency limit level sensor

RFLS – 24

Read carefully the instructions published in this manual before the first use of the level meter.

Keep the manual at a safe place. The manufacturer reserves the right to implement changes without prior notice.

Table of Contents

Need help?

Do you have a question about the RFLS-24 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dinel RFLS-24

Page 1 INSTRUCTION MANUAL High-frequency limit level sensor RFLS – 24 Read carefully the instructions published in this manual before the first use of the level meter. Keep the manual at a safe place. The manufacturer reserves the right to implement changes without prior notice.
Page 3: Table Of Contents
CONTENTS Basic Description ........................5 Variants od sensors ........................5 Dimensional Drawings ......................6 Putting into operattion ......................6 Electrical Connection ........................7 Adjusting and Signaling Elements ...................8 Status Signaling .........................9 Settings ............................ 10 8.1. Basic Setting with the Presence of Medium with Magnetic Pen ......11 8.2.
Page 4: Symbols Used
(overfilling of the tank or damage to system components). The manufacturer is not responsible for incorrect use, loss of work caused by either direct or indirect damage and expenses incurred during installation or use of the sensor. RFLS–24 © Dinel, s.r.o.
Page 5: Basic Description
(PEEK) extended electrode part, for sensing various liquids, slurries and pastes, also suitable for acids or bases. The durable stainless steel RFLS-24_-11-_-_-CM connector version (without LED indication) is designed for more demanding condi- tions, setting with a programming wire © Dinel, s.r.o. RFLS–24...
Page 6: Dimensional Drawings
** Typical switch point position for oil (factory setting) *** Supplied without outer gasket as standard. 4 . Putting into operation This procedure has the following three steps: • Mechanical installation - chapter 9 • Electrical connection - chapter 5 • Setting - chapter 8 RFLS–24 © Dinel, s.r.o.
Page 7: Electrical Connection
5. Electrical connection RFLS-24 sensors are connected to the evaluation units or binary onputs of PLC by a cable via a standard M12 connector. Sensors with PNP output type can only be loaded with resistive or inductive loads. Capacitive loads and loads with low quiescent resistance (light bulb) can be evaluated by the sensor as a short circuit.
Page 8: Adjusting And Signaling Elements
"ON" sensitive surface for magnetic pen setting "OFF" Fig. 3: Position of adjustment and display elements on the sensor (CP version) Fig. 4: CM version without adjustment and display elements RFLS–24 © Dinel, s.r.o.
Page 9: Status Signaling
7. Status signaling function indication on the sensor normal operation sensor open normal operation sensor closed incorrect setting © Dinel, s.r.o. RFLS–24...
Page 10: Settings
LED* (lit) (not lit) level mode output status orange LED* (lit) (not lit) *LED indication only for CP variant, not for CM The sensor retains settings even during a power outage RFLS–24 © Dinel, s.r.o.
Page 11: Basic Setting With The Presence Of Medium With Magnetic Pen
The sensitivity and switching mode of the RFLS-24 sensor can be set: 1) locally using a magnetic pen (CP version with plastic connector and indication), which is attached to the magnetically sensitive ON or OFF pads on the sensor 2) remotely via a setting wire using the DSU-1222-AP power supply unit (all versions).
Page 12: Basic Setting With The Presence Of Medium With Dsu-1222-Ap Unit
6. Set the SET switch to ON position. 7. Press the SETTING button for 1 - 3 sec After approx. 2 sec the orange LED on the unit will flash three times, now release the SETTING button. RFLS–24 © Dinel, s.r.o.
Page 13: Quick Setting Without The Presence Of Medium With Magnetic Pen
LEDs light up, after approx. 3 sec the orange LED flashes three times and after another approx. 2 sec the orange LED flashes three times again - now the magnetic pen can be moved away). The sensor is now set to mode C (opens when flooded). © Dinel, s.r.o. RFLS–24...
Page 14: Quick Setting Without The Presence Of Medium With Dsu-1222-Ap Unit
WITHOUT MEDIUM WITH DSU - 1222 - AP UNIT ( all versions ) The RFLS-24 sensor can be set using a programming wire or a special evaluation unit DSU- 1222-AP. The evaluation and power supply unit DSU-1222-AP is designed to connect one or two RFLS-24 sensors.
Page 15: Mechanical Installation
9 . Mechanical Installation RFLS-24 level sensors can be mounted horizontally or obliquely in the shell of a vessel, tank or pipe by screwing into a weld-on fitting or by fastening with a nut. Basic application recommendations are given below. Fig. 5: Correct orientation of sensor installation in tanks Fig.
Page 16 In the case of sensing aggressive media, it is necessary to check the chemical resistance of the materials from which the sensor is made (see tab. Material design on page 22). The warranty does not cover any chemical damage. RFLS–24 © Dinel, s.r.o.
Page 17: Order Code
OUTPUT TYPE PNP (open collector) ZPŮSOB ELEKTRICKÉHO PŘIPOJENÍ standard plastic connector, thread M12 (LED indication) standard stainless steel connector, thread M12 (hardened variant) RFLS-24 - CP EXAMPLE OF CODING * Supplied without outer gasket as standard. © Dinel, s.r.o. RFLS–24...
Page 18: Recommended Power Supply And Display Unit
(KV 4412) various types of seals:0 o-rings (EPDM, FPM, NBR) at extra cost USIT rings (FPM, NBR) aluminum seals at extra weld flange G 1/2 cost at extra Fixing stainless steel nut G 1/2 cost RFLS–24 © Dinel, s.r.o.
Page 19: Safety, Protection And Compatibility
Write down the most detailed description of the fault, also attach a detailed description of the application and installation location and send everything together with the sensor to the address of Dinel, s.r.o. We ask for your maximum cooperation in finding the root cause of the problem. Your satis- faction is our priority! ©...
Page 20: Decommissioning Or Disposal
Disposal: The RFLS-24 high-requency limit level sensors are composed of materials that can be recycled by specialized companies. Mark the device as waste and dispose of it according to the relevant gover- nment regulations for the management of electronic waste. Materials: see "Technical parameters".
Page 21: Marking Of Labels
17 . Marking of labels The marking is made by laser engraving on the sensor body Data on the RFLS-24N–_–_–_–CM series sensors Data on the RFLS-24N–_–_–_–CP series sensors Description: Manufacturer's brand: Dinel logo ® Internet address: www.dinel.cz Sensor type: RFLS–24N–_–_–_-_ Product serial number: SN: _ _ _ _ _ - (from left: year of manufacture, serial number)
Page 22: Technical Parameters
NPT thread NPT ½ Mechanical design and space classification sensor design equipment classification RFLS – 24N Basic design for use in non-explosive environments. Factory settings Switching mode O (switches on when flooded) Sensitivity for water sensing RFLS–24 © Dinel, s.r.o.
Page 23: Packaging, Transport And Storage
Store the device in its original packaging in dry areas, protected from weather conditions,with humidity up to 85% without the effects of chemically active substances. The storage temperature range is -10 °C to +50 °C. © Dinel, s.r.o. RFLS–24...
Page 24 760 01 Zlín Czech Republic Phone: +420 577 002 002 E-mail: sale@dinel.cz www.dinel.cz The manufacturer reserves the right to change product specifications and appearance without prior notice. The current version of the manual can be found at www.dinel.cz version: 03/2025...
