Summary of Contents for JensPrima innoSens 850T

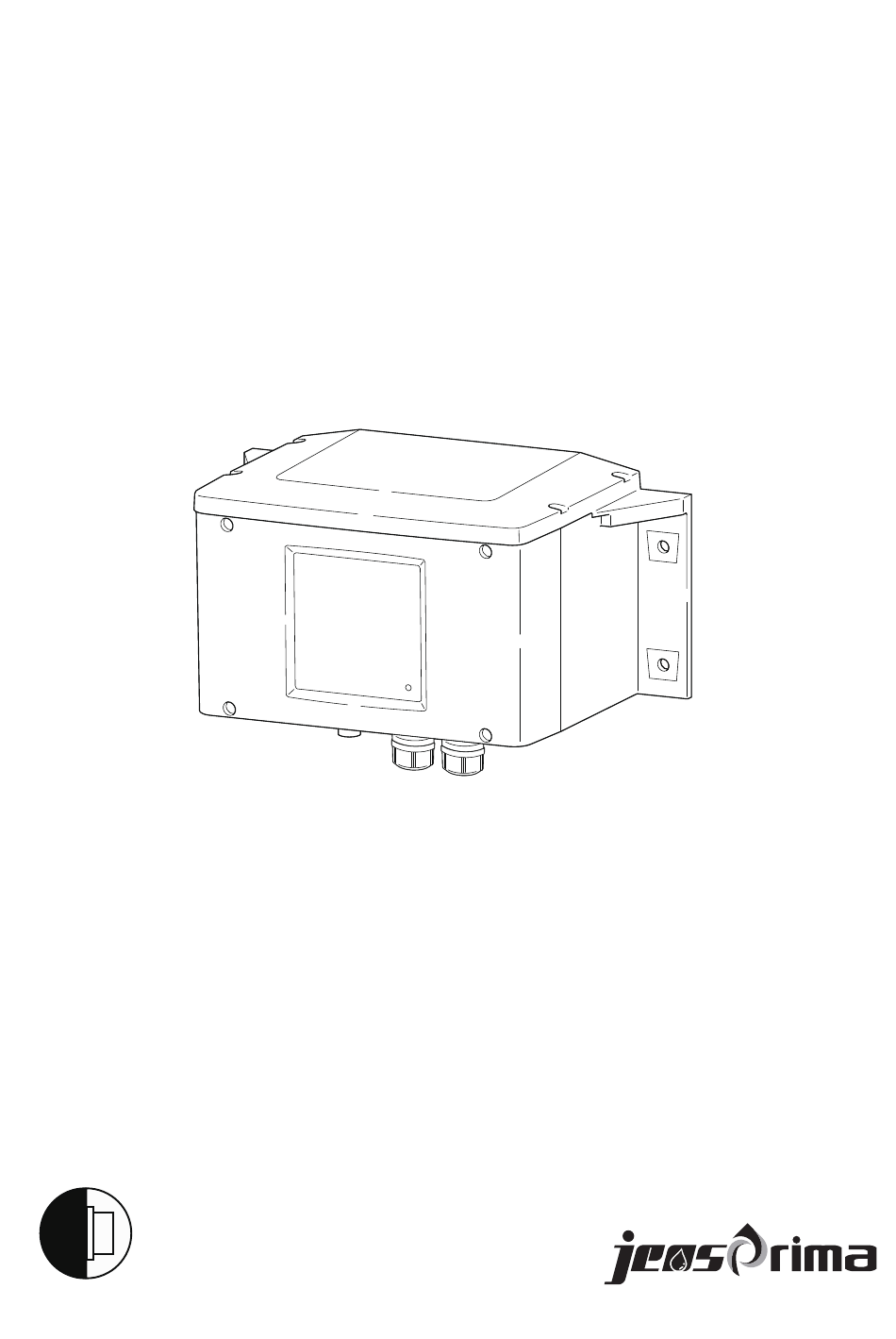

- Page 1 850T Turbidity Sensor Operation Manual JENSPRIMA INSTRUMENTS WALL MOUNTING...
-
Page 3: Table Of Contents
850T Turbidity Sensor Contents Safety ..............Sensor Names of the parts ..........Measuring principle ............. Installation .............. Installing innoSens 850T ..........Electrical Connection ..........Maintenance ............. Technical Parameters ............ Dimensions .............. Digital communications ..........MODBUS protocol ..........www.jensprima.com... -
Page 4: Safety
Be sure to read this instruction manual in order to use the Turbidity sensor innoSens 850T properly. √ Please thoroughly read the“For safe use”before using the innoSens 850T properly. √ Because these precautions are related to failure or malfunction, observe the precautions for use without fail. - Page 5 Thank you very much for purchasing JENSPRIMA innoSens 850T Turbidity Sensor. All of this instruction manual must be read before operation of the Turbidity Sensor innoSens 850T for safe and proper operation. This instruction manual should be kept for future reference such as maintenance.
-
Page 6: Sensor Names Of The Parts
850T Turbidity Sensor Sensor Names of the parts Measurement bath Cover Deaerator Panel Indicator Water inlet Water outlet Cable clamps Drain cap Up and down buttons Fuse Power supply switch DIP switch Terminal block How to open / close the Cover Open/close the cover by loosening/fastening the four cover fixing screws. - Page 7 850T Turbidity Sensor How to connect / disconnect the tube Caution Do not apply strong impact or excessive force to the joint. Otherwise, it may damage the joint, as well as may cause crush, rupture, or disconnection of the tube.
-
Page 8: Measuring Principle
Deaerator Measuring principle Turbidity Sensor innoSens 850T uses a method of 90 degree scattered light. In his method, a light source illuminates the surfaces of matter suspended in the water, and the light is scattered by these surfaces is detected by a photo element installed at an angle of 90 degrees from the light axis of the measured light. -
Page 9: Installation
Install the innoSens 850T on the wall. For the mounting pitch, see the figure below. Horizontal for front/rear Horizontal for right/left 230 mm (Mounting hole: 7 mm dia.) -
Page 10: Electrical Connection
850T Turbidity Sensor Electrical Connection Caution Be sure to use the power supply of DC24V. Otherwise it may cause fire or electric shock. Before installation, turn off the power supply switch, and then wire the power supply cable. Otherwise it may cause fire or electric shock. -
Page 11: Maintenance
Caution Do not use organic solvent such as benzene for cleaning this product. Do not wipe innoSens 850T with organic solvent such as benzine. Wiping the light source window with a hard cloth may cause scratches, which disables the correct measurement. Use a clean soft cloth or a cotton swab to remove dirt. - Page 12 Check if the unit outputs a correct value when the measurement water with known concentration is used. Storage for a long time When the Turbidity Sensor innoSens 850T is not used over a prolonged period, keep it as follows: Drain off the water from the measurement tank and keep the water.
-
Page 13: Technical Parameters
850T Turbidity Sensor Technical Parameters innoSens 850T Turbidity Sensor： Name Turbidity Sensor Model No. innoSens 850T Specifications are subject to change Measurement principle Turbidimetric light-scattering method without prior notice. Light source Measuring range 0-100 NTU Power supply voltage 24VDC±10% Current consumption Normal: 100mA or less, During activation: 600mA max. -
Page 14: Digital Communications
850T Turbidity Sensor Digital communications Communication Method Item Specification Protocol MODBUS RTU (default) 9600 (default) / 14400 / 19200 / 38400 bps Baud rate Data bits 8bit Start bits 1bit Stop bits 1bit Parity bit None Slave address MODBUS only... - Page 16 JENSPRIMA INSTRUMENTS LIMITED Web: www.jensprima.com Email: info@jensprima.com © 2017 JENSPRIMA INSTRUMENTS, all rights reserved Information contained in this document is subject to change without notice.
