Haltian RADAR Quick Manual

Hide thumbs

Advertisement

Table of Contents

Haltian
RADAR

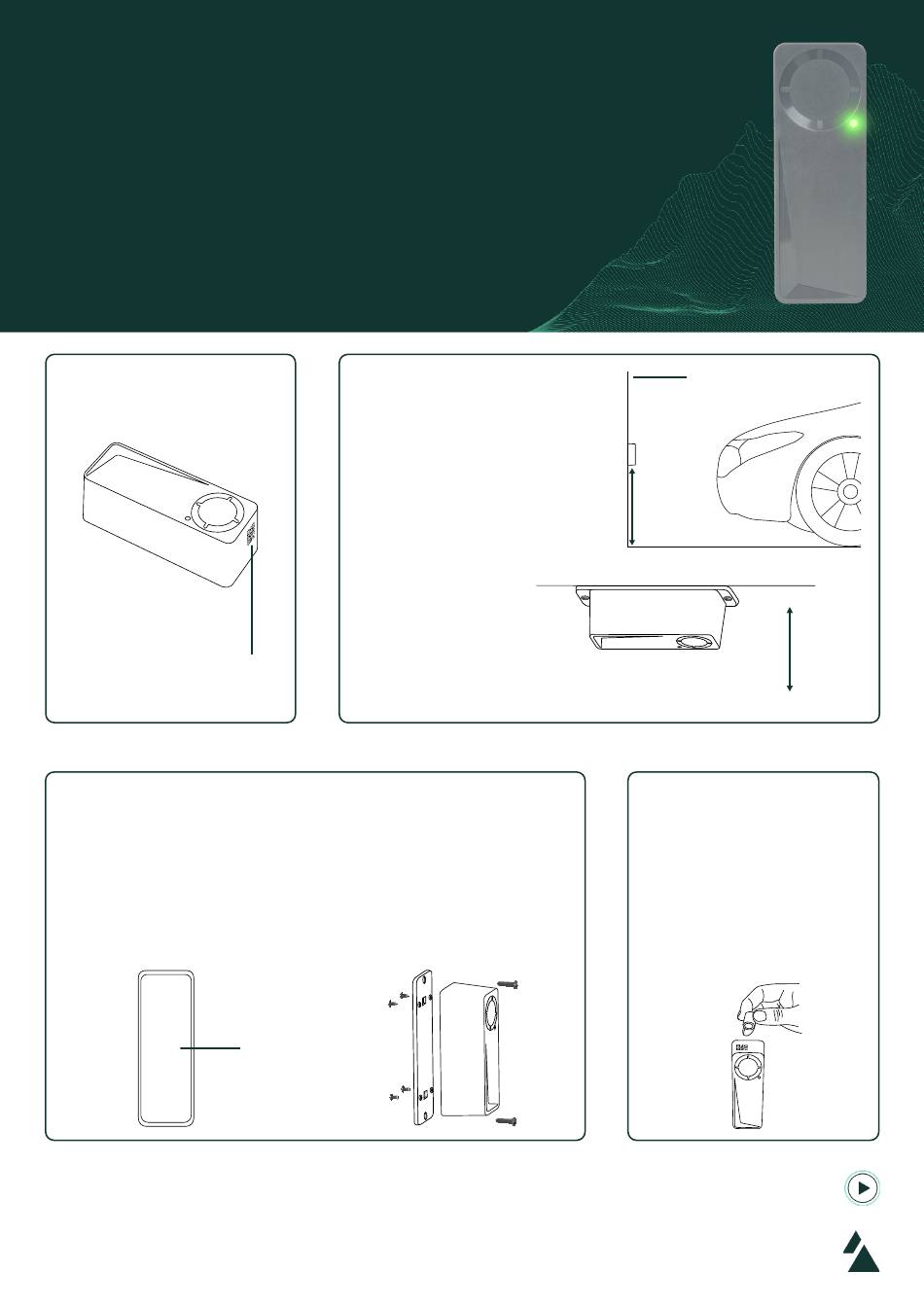

Quick Guide
1.
Read the QR code to
identify the device.
3.
Installation method 1:
Remove the attachment
tape's release paper and
attach it to the device.
Then remove the other
release paper and install the
device to a clean surface
by pushing firmly for 30
seconds.
Continue to read the detailed installation instructions.
2.
Choose your
installation spot.
For wall or pole
installations, the
installation height is
40 - 60cm.
For ceiling
installations,
the maximum
height is 5
meters.
QR code
Installation method 2: Use
the Screw Mount Plate for
ceiling installations by first
attaching the plate to the
device, and then screwing
it to the installation surface.
Note that the attachment
plate is available as an
outbox accessory.
Tape
Wall
40 - 60 cm
4.
Power the device on
with the included
magnet tool by
bringing the magnet
close to the device's
end with the QR code.
The LED will blink
rapidly for 30 seconds
when the device is
ready to use.
Watch installation video here
Ceiling
Max. 5
meters
Ground

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RADAR and is the answer not in the manual?

Questions and answers

Summary of Contents for Haltian RADAR

  • Page 1 Haltian RADAR Quick Guide Read the QR code to Choose your Wall identify the device. installation spot. For wall or pole installations, the installation height is 40 - 60cm. 40 - 60 cm For ceiling installations, Ceiling the maximum height is 5 Max.
  • Page 2 Haltian RADAR User and Installation Guide v.24.08...
  • Page 3 Welcome to using Haltian IoT We at Haltian want to make IoT simple, so we have created a solution that is easy to use, scalable, and secure. I hope it will help you achieve your business goals! Pasi Leipälä CEO, Haltian Oy...

  • Page 4: Sales Package Content

    RADAR can reliably detect changes in the observed area. Haltian RADAR can be used to detect if a parking space or loading dock is occupied or not. It can also be used to detect any changes in the observed area for other occupancy monitoring use cases.

  • Page 5: General Installation Instructions

    General installation instructions Install Haltian RADAR sensor in front of or above the space you want to monitor. Make sure that the sensor beam is directed toward the area. Install the device, if possible, perpendicular to the center of the measured area. However, depending on the installation spot, you can also position the device at an angle of up to 45 degrees or more.
  • Page 6 • In poles, angled roughly 45 degrees to towards the observed spot. This is particularly important when installing two sensors on one pole detecting occupancy of two adjacent places. The main thing to consider when choosing the installation method is to ensure a clear view of the detection beam towards the observed area.
  • Page 7 Things to avoid in installation The following can effect the wireless radio communication: Thick concrete Electrical transformers Escalators. structures or thick fire or thick electrical wires. doors. Nearby halogen lamps, Nearby radio Metal objects blocking fluorescent lamps or equipment like WiFi the signal between similar lamps with hot routers or any other...

  • Page 8: Installation

    Thingsee Toolbox application on your mobile device. Identifying the device is not necessary, but it will help you keep track of your IoT installation and help Haltian support to solve possible issues. QR code Note: Make sure the sensor is installed max. 20 meters from the next sensor or gateway. This is...
  • Page 9 2 seconds. When the magnet is brought close to the device’s end point, the device will indicate start-up by blinking brightly for 15 seconds. Notice that the first boot(before LED starts blinking) may last about 30 seconds if the Radar detects that a newer OTA firmware update is available and automatically downloads it.

  • Page 10: Installation Method

    Installation method 1: Installing Haltian RADAR with attachment tape The default attaching method in wall installations is using the included attachment tape. First, remove the tape’s release paper and attach it to the device. Usually, the tape is attached to the back of the device, but the tape can be attached to the sides as well if the installation requires it.
  • Page 11 If the installation surface is not suitable for tape, you can use the attachment plate accessory available as a standalone purchase. Ceiling installations should always be done with the Screw Mount Plate. Please note that Haltian takes no responsibility for possible damages caused by falling devices.
  • Page 12 Please check that the installation spot is not impacted by any moving mechanisms in the loading dock during its operation. The RADAR should be installed in a location where it will not be hit or damaged by a truck backing up or approaching the loading dock.

  • Page 13: Detection Capability

    Report occupancy value whenever the state changes and every 1 hour even if there is no change • Report battery level every 24 hours • Sensing distance 2 meters The following parameters are configurable remotely over Haltian Operations Cloud: • Measurement interval • Sensing distance •...
  • Page 14 Report occupancy value whenever the statechanges and every 1 hour even if there is no change • Report battery level every 24 hours • Sensing distance 5 meters The following parameters are configurable remotely over Haltian Operations Cloud: • Measurement interval • Sensing distance •...

  • Page 15: Device Info

    Storage humidity 45 % … 85 % RH non-condensing IP rating grade: IP68 Certifications: CE, UKCA and RoHS compliant Battery type: Thionyl Chloride Lithium Battery 19Ah, non-user-replaceable Radio sensitivity: -95 dBm (BTLE) More device info can be found at support.haltian.com Device dimensions Weight: 166 g 38 mm...
  • Page 16 CERTIFICATION INFORMATION EU DECLARATION OF CONFORMITY Hereby, Haltian Oy declares that the radio equipment DRA is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: support.haltian.com Haltian Oy vakuuttaa, etta radiolaitetyyppi DRA on direktiivin 2014/53/EU mukainen. EU vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa:...
  • Page 17 RECYCLING Check the local regulations for proper disposal of electronic products. The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life. The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse, recycling and other forms of recovery of such wastes so as to reduce disposal.
  • Page 18 Get to know all our Haltian devices Thingsee Thingsee Thingsee LEAKAGE Thingsee ENVIRONMENT PRESENCE ENVIRONMENT RUGGED RUGGED Haltian Thingsee Thingsee Thingsee GATEWAY RADAR BEAM GLOBAL For all devices and more information, visit our website www.haltian.com or contact sales@haltian.com...
