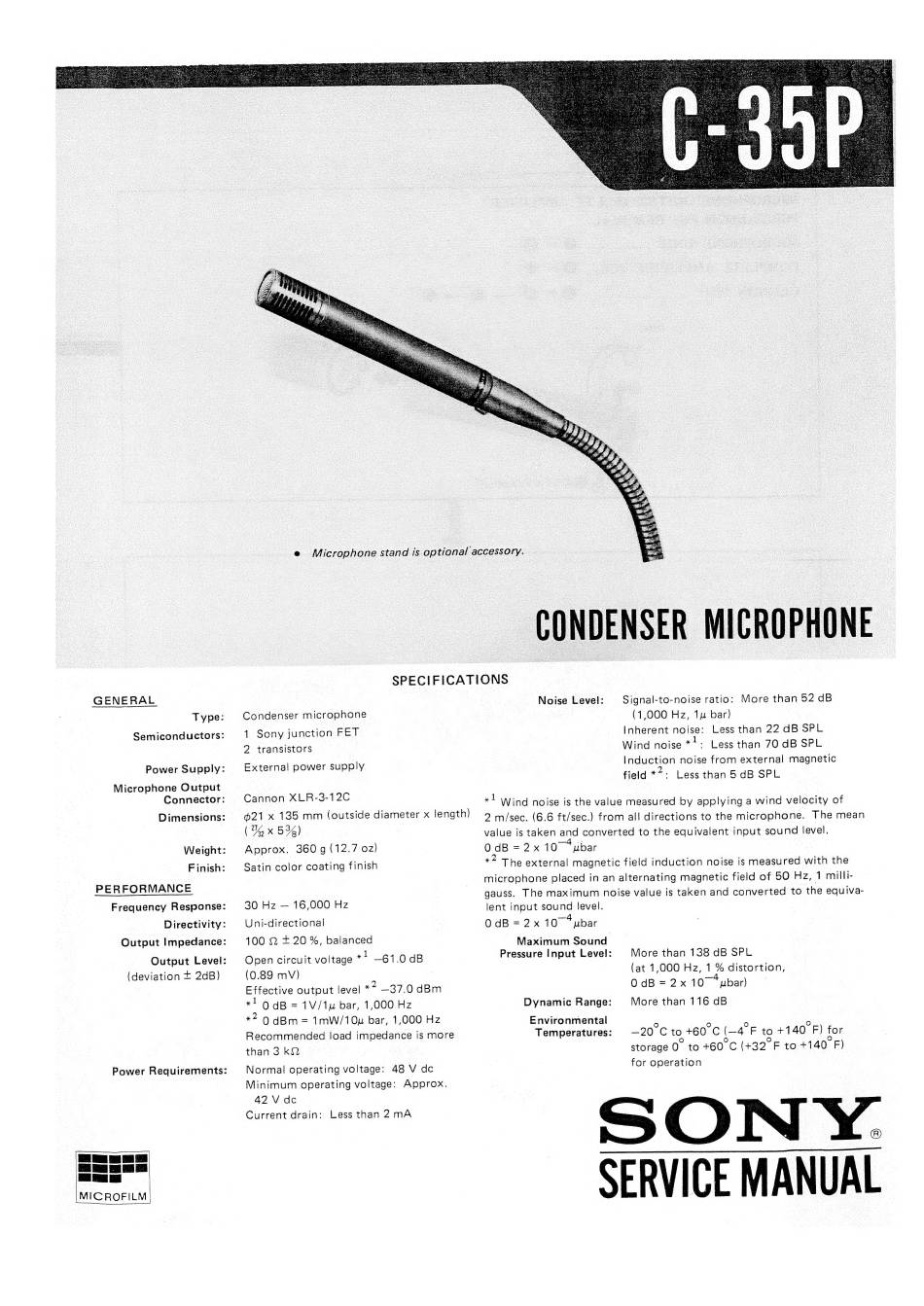

Sony C-35P Service Manual

GENERAL
Type:
Semiconductors:
Power Supply:
Microphone Output
Connector:
Dimensions:
Weight:
Finish:
PERFORMANCE
Frequency Response:
Directivity:
Output Impedance:
Output Level:
(deviation + 2dB)
Power Requirements:
MICROFILM
Condenser microphone
1 Sony junction FET
2 transistors
External power supply
Cannon XLR-3-12C
621 x 135 mm (outside diameter x length)
(2.x 534)
Approx. 360 g (12.7 oz!)
Satin color coating finish
30 Hz — 16,000 Hz
Uni-directional
100 2 £20 %, balanced
Open circuit voltage * 1 61.0 dB
(0.89 mV) |
Effective output level «2 _37.0dBm
*1 9 gB = 1V/1u bar, 1,000 Hz
*2 9 dBm = 1mW/10y bar, 1,000 Hz
Recommended load impedance is more
than 3 kQ
Normal operating voltage: 48 V dc
Minimum operating voltage: Approx.
42 Vdc
Current drain: Less than 2 mA
SPECIFICATIONS
Noise Level:
Signal-to-noise ratio: More than 52 dB
(1,000 Hz, 1p bar)
Inherent noise: Less than 22 dB SPL
Wind noise «1. Less than 70 dB SPL
induction noise from external magnetic
field *": Less than 5 dB SPL
ee ieee , : :
*"
Wind noise is the value measured by applying a wind velocity of
0 dB =2x 10 "bar
*" The external magnetic field induction noise is measured with the
microphone placed in an alternating magnetic field of 50 Hz, 1 milli-
gauss.
The maximum
noise value is taken and converted
to the equiva-
lent input sound level.
0dB=2x10 'pbar
Maximum Sound
Pressure Input Level:
Dynamic Range:
Environmental
Temperatures:
More than 138 dB SPL
(at 1,000 Hz, 1 % distortion,
0 dB = 2x 10 "pbar)
More than 116 dB
90 ¢ to £600C (—4°F to +140 F) for
storage O° to +60 C (+32 F to +140 F)
for operation
