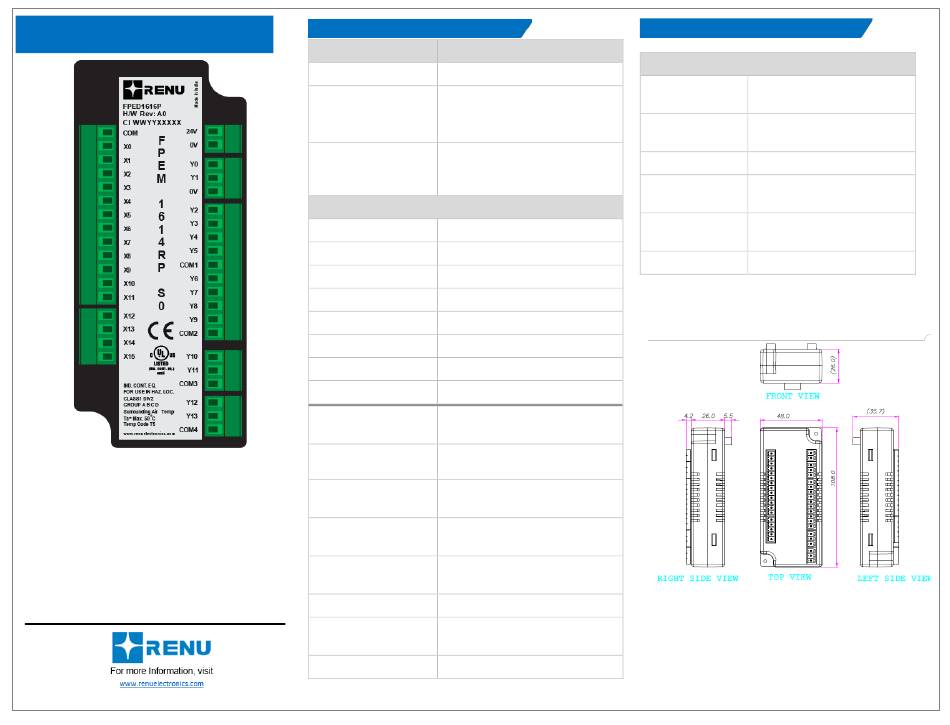

Renu FPEM-1614RP-S0 Quick Start Manual

FPEM-1614RP-S0
QUICK START GUIDE
16 Bi-directional type inputs, 14
FPEM-1614RP-S0:
Digital outputs - 2 PNP type transistor outputs and
12 Relay type outputs.
For more information, please refer user manual
which will be available in FlexiSoft software help
and/or you can download from REPL website.
SPECIFICATIONS
Power Supply
Voltage Rating
24VDC (±15%), 12V from base
Input/channel: 24VDC, 5mA typical
Power Rating
Output/Channel: 250mA @
24VDC & 2A @ 230VDC
Optical Isolation for all I/O points.
Isolation
High isolation voltage (BV=
Greater than 1.5kV)
Local I/O Specification
Number of Inputs
16 Inputs Bi-directional Type
Input Design According to EN 61131-2 Type 1
ON Voltage Min.: 15VDC, Max.: 30VDC
OFF Voltage Min.: -3VDC, Max.: 5VDC
Nominal Input Voltage 24VDC
Nominal Input Current 5mA typical
Input Response Time ON: 10msec, OFF: 10msec
Input Impedance
4.8kΩ
2 PNP type transistor outputs
Number of Outputs
and 12 Relay type outputs
Min ON: 22VDC, Max. ON:
ON Output Voltage
30VDC (Voltage across load)
Min OFF: 0.2VDC
OFF Output Voltage
Max. OFF: 1VDC
Nominal Output
30VDC
Voltage
Nominal Output
250mA type/channel
Current
Output Response Time ON: 10msec, OFF: 10msec
96Ω/6W (resistive) @ 24VDC 6VA
Nominal Load Max.
(inductive, unity power factor)
± 0.2% of full scale @ 25°C
Accuracy
[Note: FPEM S0 Series only compatible with FP2xxxTx-E/ FP4xxxTx-
E Series]
SPECIFICATIONS
Environment & Approvals
Operating
0 to 60°C
Temperature**
Storage
-20 to 85°C
Temperature
10 to 90% (Non-Condensing)
Humidity
Short Circuit
Yes
Protection
48mm x 108mm x 35.7mm
Product
(W x H x D)
Dimensions
CE, UL
Approvals
Operating temperature: For UL 0 to 50°C
**
Dimension Details
