Summary of Contents for Union Audio Lisann

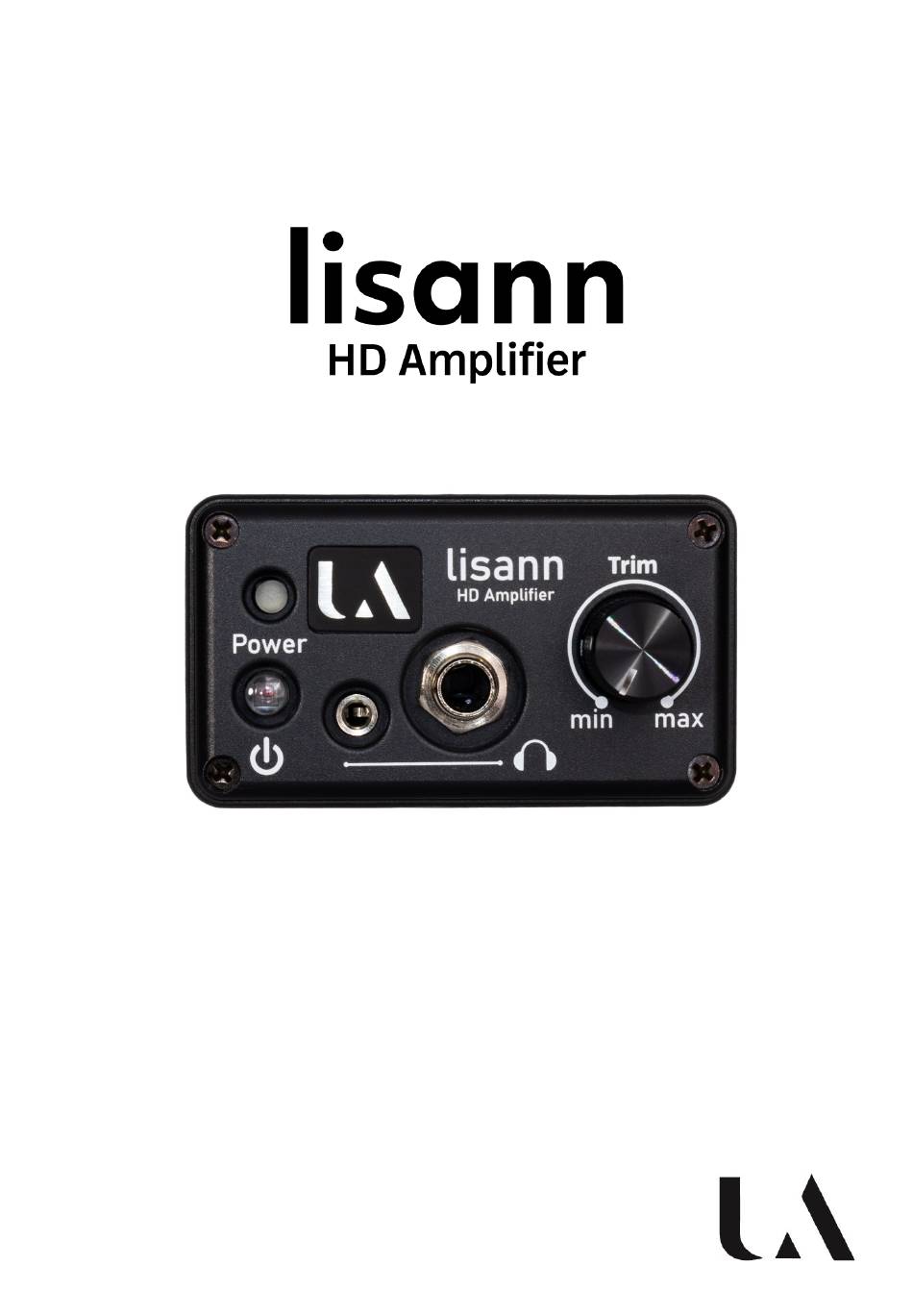

- Page 1 User Guide...
- Page 2 Lisann User Guide Issue 1 Copyright © 2024 Union Audio Limited. All rights reserved To the best of our endeavors, we believe the information contained in this user guide to be true and accurate but we do not assume responsibility for inaccuracies or omissions, and reserve the right to make any changes deemed necessary.
-
Page 3: Warranty
The warranty does not cover finger wear to the front panel silkscreen graphics. The defective unit is to be returned to the place of purchase, an authorised Union Audio distributor or agent with proof of purchase. Please discuss this with the distributor or the agent before shipping. Units returned should be packed in the original carton to avoid transit damage. -
Page 4: Safety Instructions
Safety Instructions Please read and retain these instructions • Only use the product for the purposes it is intended and heed all warnings. • WARNING - To prevent the risk of fire or electric shock do not use this device near water, or in locations where it is likely to be exposed to rain or moisture. - Page 5 Safety Instructions • Do not remove any covers, either on the device or the power supply. • Install only in accordance with the manufacturer’s instructions. • Always use a power cord or adaptor appropriate to your local mains supply, and ensure the power supply is correctly specified for the local mains voltage.
-
Page 6: Table Of Contents
Index Contents Warranty Safety Instructions 4 - 5 Index About Lisann Front and Rear Line Drawing Front Panel Features Rear Panel Connections Charging the Batteries USB Device Selection WINDOWS USB Audio Settings WINDOWS USB Device Selection MAC OSX USB Audio Settings MAC OSX... -
Page 7: About Lisann
750mW RMS into 33 Ohms, or up to +20dBu for high impedance headphones, thanks to 30 volt internal power rails. With USB-C connectivity lisann can stream digital audio at sample rates of up to 96kHz, 24bit resolution, with clarity and dynamics from its AKM digital converters. In addition, lisann can record back to USB from any input source, either digital or analogue. -
Page 9: Front Panel Features
The Trim control adjusts the level of the headphones output from minimum (not fully attenuated) to Maximum. Lisann is optimised for use with headphones having an impedance between 33ohms to 250ohms. Headphones with impedances above or below the recommended impedance should be avoided, and in particular headphones with impedances below 33ohms could cause damage to the circuitry. -
Page 10: Rear Panel Connections
DC power supply lead. Only use the power supply provided with phoebe, rated at 12V at a maximum power of 5W (displayed on the rear panel of lisann). USB C – The USB C can be used to power and charge the device to approximately 70% capacity, as well as transferring I/O data for recording and monitoring audio digitally. -
Page 11: Charging The Batteries
2 - 10 hours. DC Power In – Only use the power supply provided with the lisann, rated at 12V at a maximum power of 5W. Use of any other supply could cause permanent damage to the batteries or the device! -
Page 12: Usb Device Selection Windows
Fig. 1a (System Highlighted With Grey Box) Sound Input/Output Settings – Click on the Sound tab and select UA-Lisann as audio device on the input and output sections (Fig. 1b). Click on ‘Device Properties’ to adjust the audio format between 44.1kHz and 96kHz on the Input or Output. -
Page 13: Usb Audio Settings Windows
USB Audio Settings WINDOWS Audio Format Window – Click on ‘Additional device properties’ under the ‘Related Settings’ Section (Fig. 1c) Fig. 1c Audio Format Selection – Click on the ’Advanced’ tab then cycle through the ‘Default Format’ options to change the sample rate (Fig. -
Page 14: Usb Device Selection Mac Osx
USB Device Selection MAC OSX Sound Output Settings – Open System Settings, navigate to Sound > Output, then select UA-Lisann audio device (Fig. 2a). Fig. 2a Sound Input Settings – Open System Settings, navigate to Sound > Input, then select UA-Lisann audio device (Fig. 2b). -
Page 15: Usb Audio Settings Mac Osx
USB Audio Settings MAC OSX Audio Format (Output) – Open Audio Midi Setup, navigate to UA- Lisann Device > Output, then select cycle through Format options to change between 48kHz and 96kHz sample rate (Fig. 3a). Fig. 3a Audio Format (Input) – Open Audio Midi Setup, navigate to UA- Lisann Device >... -
Page 16: Device Firmware Update (Dfu)
Fig. 4a Initiate Update Mode – Once the Updater has opened the file and has detected the device, click on ‘REBOOT DEVICE’ (Fig. 4b). Lisann’s Power Button should blink red to indicate that it is in Update Mode. Fig. 4b... - Page 17 Fig. 4c Close the Updater – Once the Updater states again ‘Device in Runtime Mode...’ (Fig. 4d), the firmware update is complete and lisann is ready to be used. Click ’Abort’ to close the program. Fig. 4d...
-
Page 18: Opening Firmware Updater Mac Osx
Opening Firmware Updater MAC OSX Launch Firmware Updater – Click on the UA_DFU.app file to open the Firmware Updater. You will see a message (Fig. 5a) notifying that the app cannot be opened. Fig. 5a Security Bypass – Open System Settings, navigate to Privacy & Security >... - Page 19 Opening Firmware Updater MAC OSX Enter Password – For the system security to allow the Firmware Updater to open, type in the User Password and hit enter (Fig. 5c). Fig. 5c Open Firmware Updater – Open the downloaded file again, the system should now allow you to access the Updater application (Fig.
-
Page 20: Technical Specification/Dimensions
Power Supply Type External SMPSU Mains Voltage range 90-260VAC Output 12V DC 5W Efficiency LEVEL VI Dimensions Dimensions lisann Height 46mm Width 82mm Depth 132mm Weight 0.5kg Packed Dimensions Size L x W x H 31cm x 24cm x 13cm Weight 1.3kg (2.8lb)
