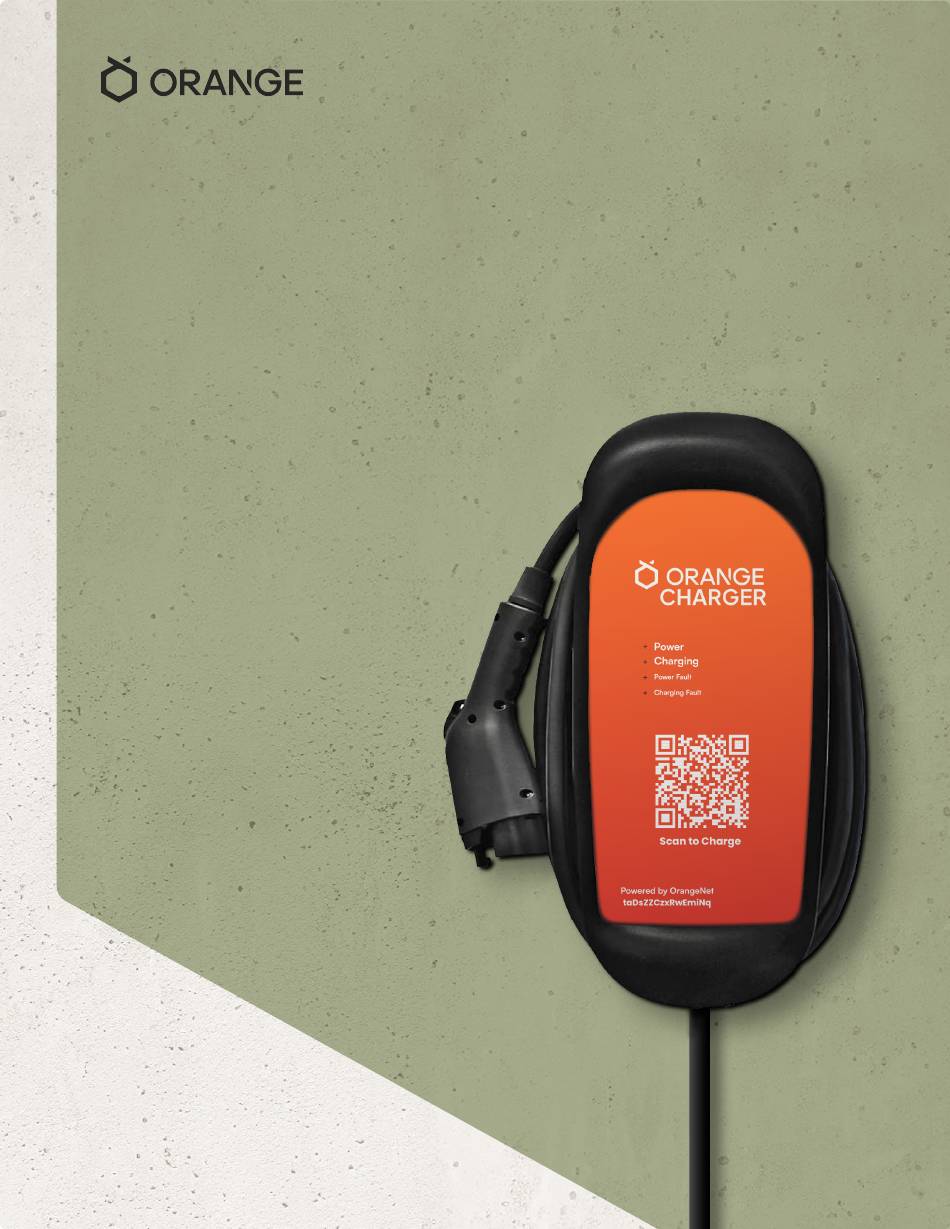

- Page 1 Orange EVSE User manual 40, 60, & 80 Amp Electric Vehicle Service Equipment...
-
Page 2: Table Of Contents
Circuit Breaker Rating / Maximum Output Features Connectivity Power Outages Firmware Updates Using Orange EVSE LED Status 10 Orange EVSE External Components 13 Installation 18 Warranty 19 Limited Liability Published May 1, 2024 Revision 1.0 Part numbers this User Manual is intended for: 920140, 920160, 920180 ©... -
Page 3: Important Safety Information
J1772 to NACS adapter). Consult the vehicle’s owner manual to determine if the vehicle is equipped with the correct charge port. Make certain the EVSE charge cable is positioned such that it will not be stepped on, tripped over, or otherwise subjected to damage or stress. -
Page 4: Additional Safety Information
Do not operate your EVSE if it or the charge cable and Additional safety information connector assembly is physically open, cracked, frayed, or otherwise visibly damaged. Contact a Service WARNING: Turn off power to the EVSE at Representative for service immediately. Consult the the circuit breaker panel before moving, servicing, “Orange Support”... - Page 5 The Orange EVSE is a compact, wall or pedestal-mounted unit. It provides a safe and manageable connection between the power grid and Plug-in Hybrid or Battery Electric Vehicles (collectively referred to as ‘Plug-In Electric Vehicles’ or ‘PEV’). Both hardwired and plug-in Orange EVSE versions are available.
-
Page 6: Product Specifications
920140 920160 920180v 40A EVSE (PN 920140): 40-amp breaker 60A EVSE (PN 920160): 60-amp breaker 80A EVSE (PN 920180): 80-amp breaker If the EVSE is installed outdoors, use a GFCI-rated breaker of the corresponding amperage. Product Specifications Part 920140 920160... -
Page 7: Power Outages
To use an Orange Charger (Outlet Chargers would be recommended to be placed, or or EVSE), it must be registered into the Orange OS the use of one or multiple OrangeNet Extender/s Platform. To do this, the owner/operator (Organization) - Page 8 Please note you need to have created or signed into your instructions to scan the QR code on the EVSE to start or account. Within the Orange Charger mobile app, click stop charging sessions.
- Page 9 Front panel LED indications Figure 1: Orange EVSE front panel The front panel on the Orange EVSE has four indicator lights, as shown in Figure 1. Power (Amber) indicates that power is available on the EVSE. Charging (Green) indicates that the vehicle is requesting a charge and AC power is currently applied to the vehicle.
-
Page 10: Installation: Service Connections
National Electrical Code, ANSI/NFPA 70 (US), or the Canadian Electrical Code C22.1 (Canada). Table 2: Service connections for Orange EVSE by model (J1772) Product Voltage Breaker Operating Nameplate... - Page 11 Notice that L1, L2, and Ground are labeled on each diagram. Those transformer outputs correspond to the same inputs on the Orange EVSE. Also, each of the two CAUTION: This is a single-phase device. Do not three-phase diagrams shows an L3 output, which is not connect all three phases of a three-phase feed! used.
- Page 12 NOTE: With a wye-connected secondary, any two of the legs can be used to provide 208 V to the Orange EVSE. For example, L1 & L2, or L1 & L3, or L2 & L3. Leave the unused leg open. Do not connect it to a Neutral bar or to Ground.
-
Page 13: Wiring Instructions
Wiring instructions Route the Orange EVSE conduit to a nearby junction box. Use the included ½” trade size watertight conduit fitting and sealing washer to provide a moisture-resistant seal between the conduit fitting and the junction box. If necessary, drill a ⅞” diameter hole to accommodate the conduit fitting. -
Page 14: Grounding Instructions
Ensure that the LEDs on the front panel of permanent wiring system, or an equipment-grounding the EVSE can clearly be seen by the user of the device. conductor must be run with the circuit conductors and connected to the ground lead on the product. - Page 15 The included plastic angle washers can be oriented to allow the lag screws to be fastened at an angle while still providing a solid flat backing to the screw head. Figure 9: Mounting the EVSE to a hollow wall 17" © 2024 | Orange Charger Inc...
- Page 16 Machine screw size ¼” - 20 hardware is recommended to allow bolts to be fastened either at an angle or for mounting the EVSE. Screw shafts of at least 2” (5.1 perpendicular to the mounting surface. cm) are recommended. The EVSE plastic angle washer hole size is ⅜”...
- Page 17 5.45" Place the Wall Anchor on the three holes. The vertical alignment of the Orange EVSE and connector holster mounting holes allows for the convenient mounting of both components onto the same post or wall structure. For example, the holster may be mounted directly above the EVSE.
-
Page 18: Moving And Storage Instructions
Orange Charger Inc. (“Orange”) that are designed to be installed and used at authorized Always turn off input power to the EVSE at the circuit EV charging locations and to connect to and interact with breaker panel prior to hard-wiring or disconnecting from the web-based software platform provided by Orange (the the service lines. - Page 19 Ownership. When an Orange Device is replaced[JM1] [BS2] due to, or resulting from: or a refund is given, the Orange Device that is replaced or · normal wear and tear (including, without limitation, for which they refund is given must be returned to Orange general appearance or damage to paint, including chips, and become Orange’s property.
- Page 20 Orange, Inc. 3495 Edison Way Menlo Park, CA 94025 orangecharger.com © 2024 | Orange Charger Inc...
