Summary of Contents for MSP Adam MP-AD-SD-00100

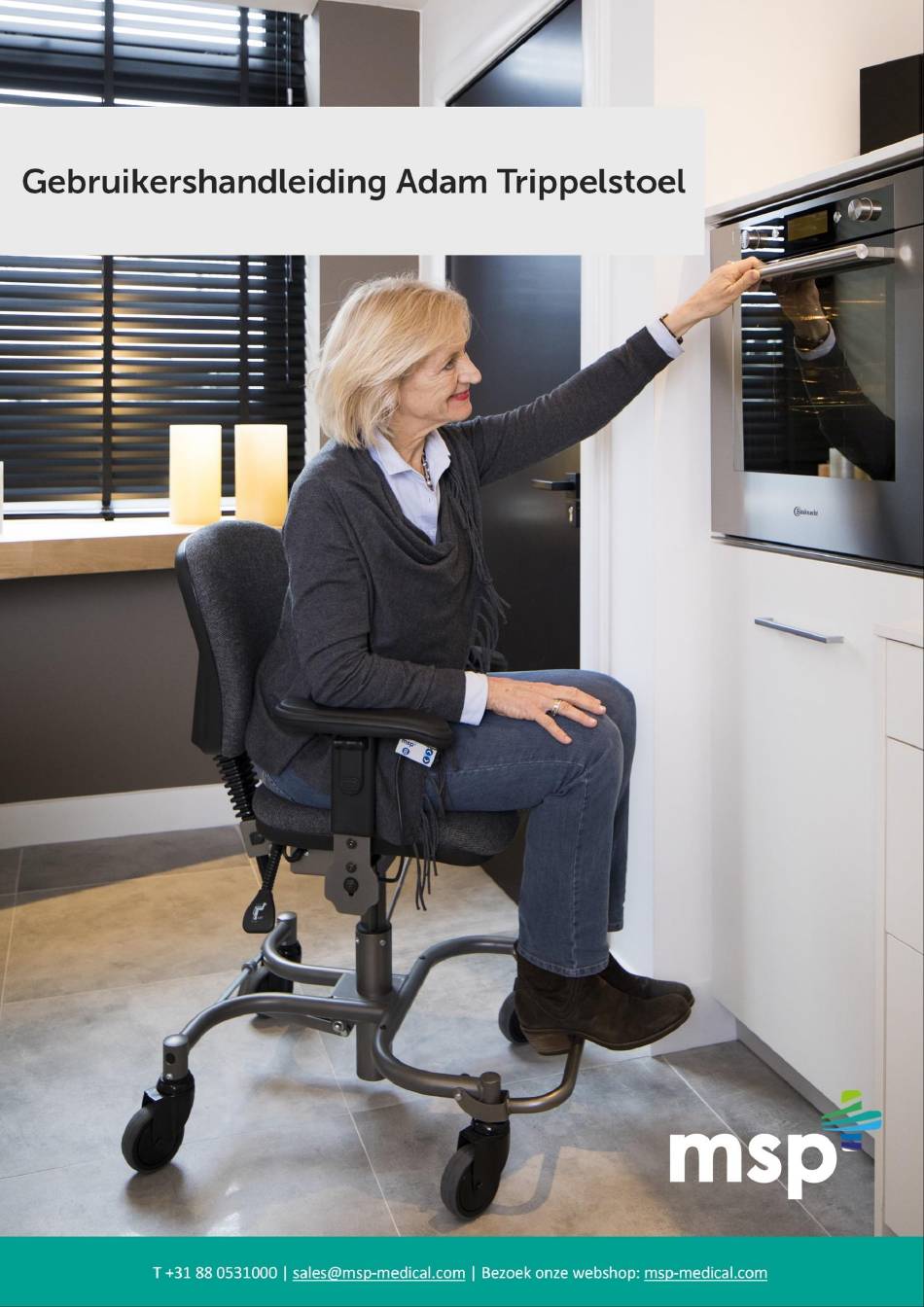

- Page 1 T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com...
-
Page 2: Table Of Contents
Annual Inspection ..........................17 Unrecommended usage ........................18 Solving Problems..........................18 Technical Specifications ........................19 Dimensions & Adjustment range......................20 Labels............................... 20 Parts & Accessories ..........................21 Remarks / Notes: ..........................22 T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 3: Preface
Preface Dear Customer, Thank you for choosing the Adam trip chair from MSP Medical Products! We wish you many years of ease of use. You will find that the Adam offers many options to help you sit and move comfortably and healthily. -
Page 4: Intended Use
This lifespan is calculated assuming preventive maintenance is carried out as described in this manual. Depending on wear and tear, some components such as batteries, wheels, and upholstery parts may need to be replaced during the device’s lifespan. T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 5: Safety Instructions
Never use sharp objects near your device. This can cause damage. CAUTION Never perform work on the Adam Trip Chair if you do not have the necessary knowledge or authorization. T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 6: Preparations
Store this user manual in an easily accessible location. Before Each Use Check the wheels and the parking brake. NOTE If you have any questions or uncertainties about using the Adam, please contact your dealer/supplier or us. T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 7: Description Of Delivered Parts
Description of delivered parts The Adam packaging contains the following: Adam working chair Battery charger User manual In this exploded view you can identify the individual parts of the chair: T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... - Page 8 Seat X=0 for blue X=1 for grey MSP-PD-MP-0011X Backrest LOW X=0 for blue X=1 for grey MSP-PD-MP-0012X Backrest HIGH X=0 for blue X=1 for grey MSP-KIT-MP-00100 Armrest Complete composition T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com...
-
Page 9: Function Description
In consultation with your dealer/provider this lever can be positioned on the left or right hand side. T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... - Page 10 Height adjustment armrests: The height of the armrests can be adjusted by pulling the handle on the side upwards. Then set the armrests to the desired height and release the handle. T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com...
-
Page 11: Stepping Onto And Off Your Adam Working Chair
How to fold away the armrests is described on the previous page. After you are seated, you can place back the armrest. This will automatically go back to locked position. T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 12: Cleaning And Disinfection Instructions
In order to prevent contamination, observe the steps in this user manual at all times. NOTE In order to prevent damage to your Adam triple chair, use only MSP Medical Chemicals products. T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 13: Step-By-Step Plan Cleaning And Disinfection
Step 3 – Use of disinfectant Use the MSP Medical Chemicals disinfectant in spray flacon and spray the chair entirely, with the exception of the upholstery Use the (long) soft brush and thoroughly brush the entire chair. A cleaning cloth can also be used Use a new cleaning cloth and dampen it with water. -
Page 14: Instructions How To Handle The Batteries
If the Adam triple chair is not in use, the ambient temperature should be between 0°C and +30°C For optimal performance, never expose the batteries to temperatures higher than +50°C T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 15: Charging The Adam
Charging the Adam Before use, check the battery charger for damage. Charge your Adam only using the included battery charger (MSP-C-MP-00100). The usage of a non- original charger may lead to a reduced lifespan of your batteries and/or damage to the electronics. -
Page 16: Preventative Maintenance Schedule (Pos)
In order to avoid injury, never carry out modifications to your facility and do not make use of non-compatible parts. WARNING Never carry out activities on the Adam triple chair when you do not have the required knowledge or authorisations. T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 17: Annual Inspection
Apart from the preventive maintenance, the proper and safe functioning of the Adam triple chair requires annual inspection. This must be carried out by the technical service of MSP or your dealer/provider. This inspection must at least contain the following checks:... -
Page 18: Unrecommended Usage
Release control, wait for 2 sec. and try control again Adam does not react to Battery is empty Charge battery control Adam can only be Battery is low Charge battery lowered T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 19: Technical Specifications
Sealed Lead Acid Valve Regulated (SLA/VRLA) Do not throw away, recycle only Packaging Cardboard, recyclable Adam triple chair Electrical, metal and plastic parts must be separated and recycled in accordance with national legislation T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 20: Dimensions & Adjustment Range
Adam in lowest en highest position Labels Type no. label Use the serial number if you contact our technical service or when ordering parts. Labels controls: Label high/low control and charger connection. T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 21: Parts & Accessories
From s /n | to s /n: Shows the first and last serial number of the facility for which this article is suitable. Quantity: Indicates how many times the article is used in the facility Remarks: Any remarks about the article T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 22: Remarks / Notes
Remarks / Notes: T +31 88 0531000 | sales@msp-medical.com | Bezoek onze webshop: msp-medical.com... -
Page 23: Eg-Declaration Of Conformity
The internal power source is safety tested according to IEC60601-1, ANSI/AAMI ES60601-1, CAN/CSA-22.2 No 60601-1, IEC62133, UL2054. MSP Medical Products bv is not aware of any electromagnetic influences between the Working chair and other electrical products.. Technical file compiled by L.J.M.G. Dhanpat.
