Summary of Contents for Feelworld C4K

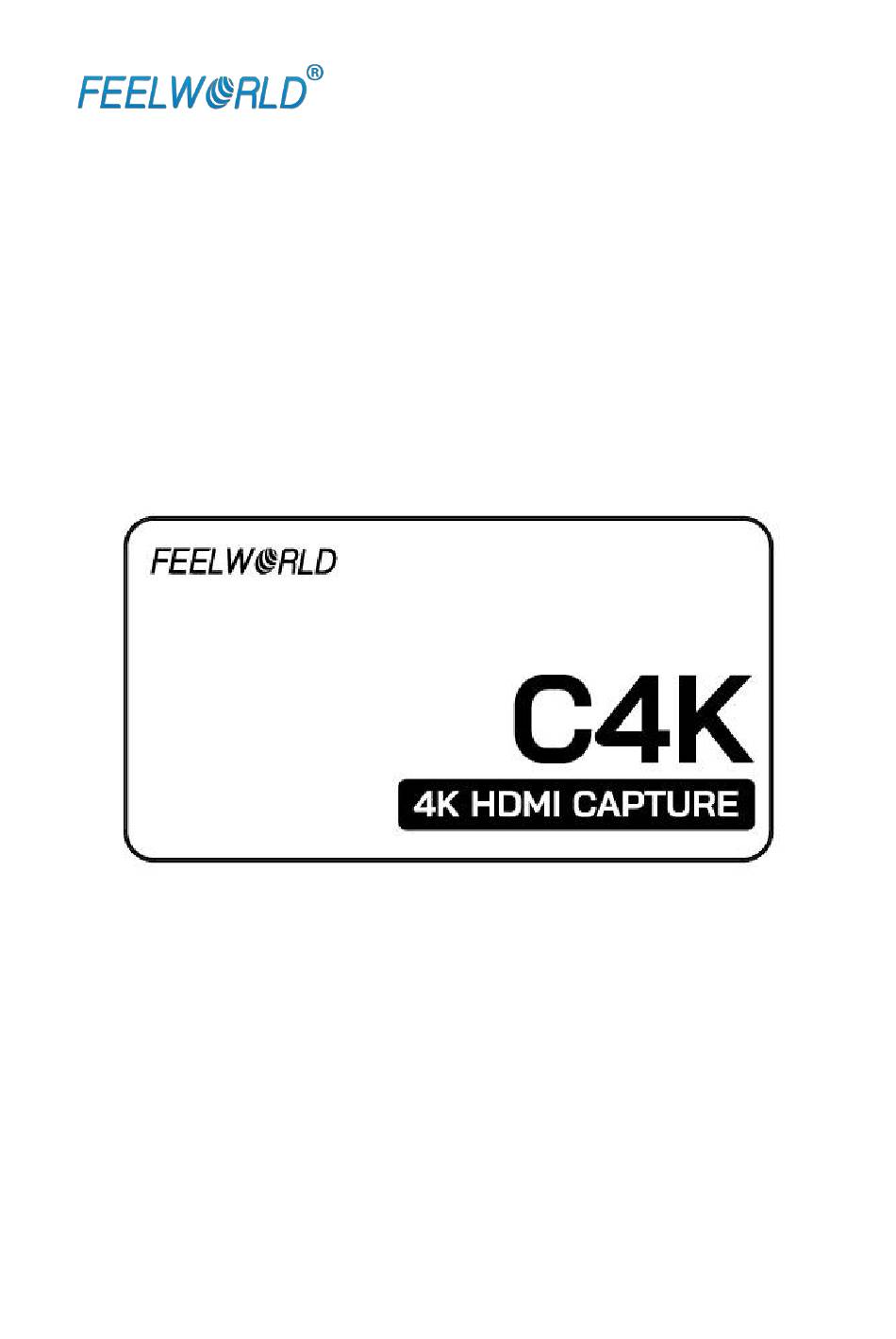

- Page 1 4K HDMI VIDEO CAPTURE User Manual...
-
Page 2: Safety Cautions
Foreword Thank you for purchasing FEELWORLD 4K HDMI video capture. Please read this manual carefully before using the unit. Have a great experience! Safety Cautions Please avoid using this product in extreme high or low temperature, as well as in dusty and humid environments. -
Page 3: Table Of Contents
Dual mic audio inputs and a 3.5mm headphone jack CONTENTS 1. Product Overview ..........................4 2. Capture Device Requirement ........................ 5 3. How to Use ............................5 4. Resolutions and Frames for VideoFormats ..................17 5. Product Parameters ..........................18... -
Page 4: Product Overview
1. Product Overview 1.1 Connection Diagram... -
Page 5: Capture Device Requirement
2. Capture Device Requirement 2.1 Windows: need to support UVC protocol 2.1.1 MJPEG 4K60 computer configuration requirement Laptop Intel Core i7-10xxx or above Intel Core i5-6xXX or above NVIDIA GeForce GTx 1650 or NVIDIA GeForce GTx1060 above or above 8G (dual channel） 8G (dual channel) 2.1.2 NV12/ I420 4K30 computer configuration requirement Laptop... - Page 6 (3) Select Video Capture Device (4) The name can be modified such as: camera 1 or camera 2, then click OK...
- Page 7 (5) The Type select Custom, for the Resolution, the user can select the corresponding resolution according to own needs, the FPS select parameter match, finally click OK. 3.2 Suggested parameters for recording video with OBS software (no setting required for not recording video) (1) Click Settings which in the bottom of right corner of OBS, then click Video and select the resolution and frame rate corresponding to the live live streaming (which are also the recording resolution and frame rate), finally click Apply.
- Page 8 (2) a. For live streaming, click Settings which in the bottom of right corner of OBS, then click Output and set the Video Bitrate, Video Encoder (suggest to select Hardware). b. For recording, you can set the recording path, recording quality, and recording format -- it is recommended to prioritize MP4 , which is more compatible with many players and APP video software.
- Page 9 (3) Users who are streaming can click on Settings in the lower right corner of OBS, then click on Stream, import the streaming code of the live streaming platform into OBS, and click on Apply in the lower right corner to start streaming (users who are not streaming can ignore this step).
- Page 10 3.3 POTPLAYER software settings for Windows System (can only choose one of from OBS or PotPlayer) (1) Turn on PotPlayer, select Open and choose Device Settings (2) Select Webcam,the Format can be selected freely according to user needs...
- Page 11 3.4 POTPLAYER Software Recording Video Settings (no settings required if not recording) Open PotPlayer, choose Video--Video Recording--Record Video, then click Start...
- Page 12 3.5 Capture Sound for Windows System Right click on the speaker in the bottom right corner of the computer desktop (2) Click Sounds (3) Click Recording, then right click USB Audio Properties...
- Page 13 (4) Choose Listen, check the box Listen to this device (5) Click Advance, and check if the exclusive mode is checked. 3.6 OBS Software Capture Setup for MAC System (1) open OBS (2) click on the Sources “+” which in the bottom of left corner...
- Page 14 (3) Select Video Capture Device...
- Page 15 (4) Click OK (5) Close the checked Use Preset (6)Then will show the corresponding attribute parameters...
- Page 16 3.7 OBS Sound Capture Setup for MAC System (1) Click “+” which in the bottom left corner of Sources (2) Select Audio Input Capture (3) Select USB Audio for the Device...
-
Page 17: Resolutions And Frames For Videoformats
(4) Click on Edit in the upper left corner of OBS and select Advanced Audio Properties (5) Select Monitor Only of Audio Monitoring which on Audio Input Capture 4. Resolutions and Frames for Video Formats 1920x1080 60, 1920x1080P 60 (P16:9); 640x480 60,640x480P 60 (P4:3);... -
Page 18: Product Parameters
2560x1080 60, 2560x1080P 60(P 64:27) 3840x2160 30, 3840x2160P 30 (16:9); 2560x1080 60; 640x480P 60(P 4:3); 720x576 50, 720x576P 50(P 5:4); NV12 1280x720 120, 1280x720P 120(P 16:9); 1920x1080 120, 1920x1080P 120 (P 16:9); 2560x1080 60, 2560x1080P 60(P 64:27); 2560x1440 60, 2560x1440P 60(P 16:9) 3840x2160 30, 3840x2160P 30 (P16:9);... - Page 19 480i/576i/480p/576p 720p (60/59.94/50/30/29.97/25/24/23.98) 1080i (60/59.94/50) HDMI Input/ Output 1080p (60/59.94/50/30/29.97/25/24/23.98) Support Format 3840×2160p ( 60/50/30/29.97/25/24/23.98 ) 4096×2160p ( 60/50/30/29.97/25/24/23.98 ) Compatible System Windows 7/8/10/11, Linux, MacOS OBS Studio/Potplayer/XSplit/QuickTime Compatible Software Player,etc. 5V at least Voltage of Computer Unit Weight 85x45x10mm Unit Size ★...
