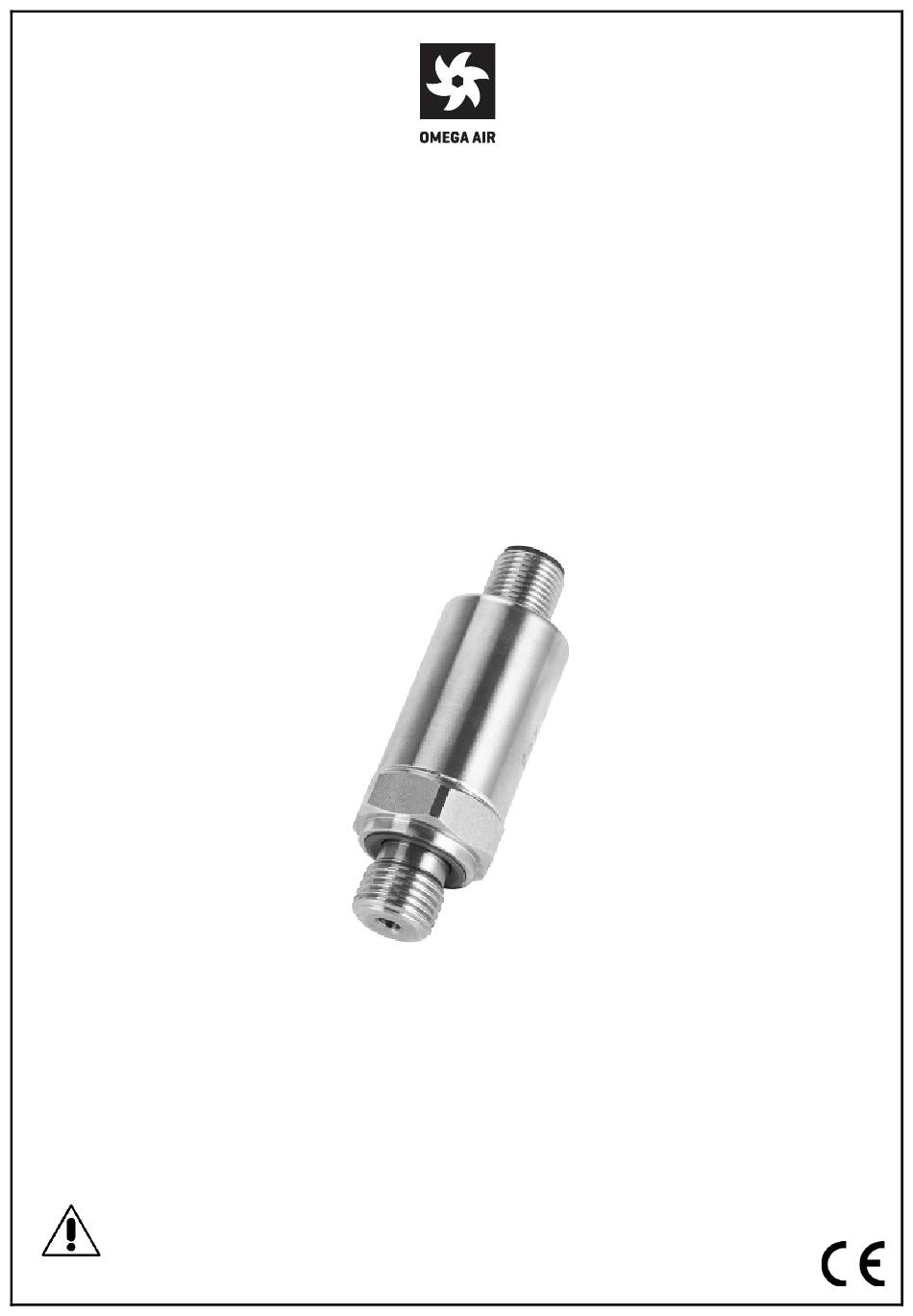

- Page 1 Installation and operating manual OS16 / OS40 Pressure Transmitter Please read the following instructions carefully before installing the product. Trouble free and safe operating of the product can only be guaranteed if recommendations and conditions stated in this manual are respected.
-
Page 2: Table Of Contents
1. Safety instructions ................3 Registered trademarks ................ 5 Application ..................5 Features ................... 5 Technical data ................... 6 General ..................6 Electrical data ................6 Output signals ................6 Accuracy ..................6 Dimensional drawing ................7 Installation ..................7 Installation Requirements .............. -
Page 3: Safety Instructions
1. Safety instructions Please check if this instruction manual accords to the product type. Please observe all notes and instructions indicated in this manual. It contains essential information which have to be observed before and during installation, operation and maintenance. Therefore, this instruction manual has to be read carefully by the technician as well as by the responsible user / qualified personnel. - Page 4 • The product should be maintained and calibrated frequently, at least annually. General safety instructions It is not allowed to use the product in explosive areas. • Please observe the national regulations before/during installation and • operation. Remarks • It is not allowed to disassemble the product. •...
-
Page 5: Registered Trademarks
The OS16/40 Pressure Transmitter can measure the following values: pressure in MPa. The OS16/40 Pressure Transmitter is not developed to be used in explosive areas. For the use in explosive areas please contact the manufacturer. The OS16/40 Pressure Transmitter is mainly used in compressed air systems in industrial environment. -
Page 6: Technical Data
Standard unit pressure: MPa Sensor Thin-film measuring cell Measuring medium Air, gas (non corrosive gas) Measuring range – OS16 0 ... 1.6 MPa (g) Measuring range – OS40 0 ... 4.0 MPa (g) Temperature of the meas. -30°C ... +100°C... -
Page 7: Dimensional Drawing
5 Dimensional drawing 6 Installation Please make sure that all components listed below are included in your package. Description OS16/40 Pressure Transmitter M12 connector Instruction manual Calibration certificate ATTENTION! Wrong measurement is possible, if the pressure transmitter is not installed correctly. -
Page 8: Electrical Connection
Installation of the transmitter Please screw the pressure transmitter tightly to the nozzle. Removal of the transmitter Please loose unscrew the pressure transmitter. 6.4 Electrical connection The pressure transmitter is supplied with an M12 connector. Signal Assignment 24 V DC power supply Positive 4 …... -
Page 9: Disposal Or Waste
ATTENTION! Do not use isopropyl alcohol to clean the instrument and its accessories! Disposal or waste Electronic devices are recyclable material and do not belong in the household waste. The instrument, the accessories and its packing must be disposed according to your local statutory requirements. The dispose can also be carried by the manufacturer of the product, for this please contact the manufacturer. - Page 10 OMEGA AIR d.o.o. Ljubljana Cesta Dolomitskega odreda 10, 1000 Ljubljana, Slovenia T: +386 1 200 68 00 | info@omega-air.si | www.omega-air.si...
