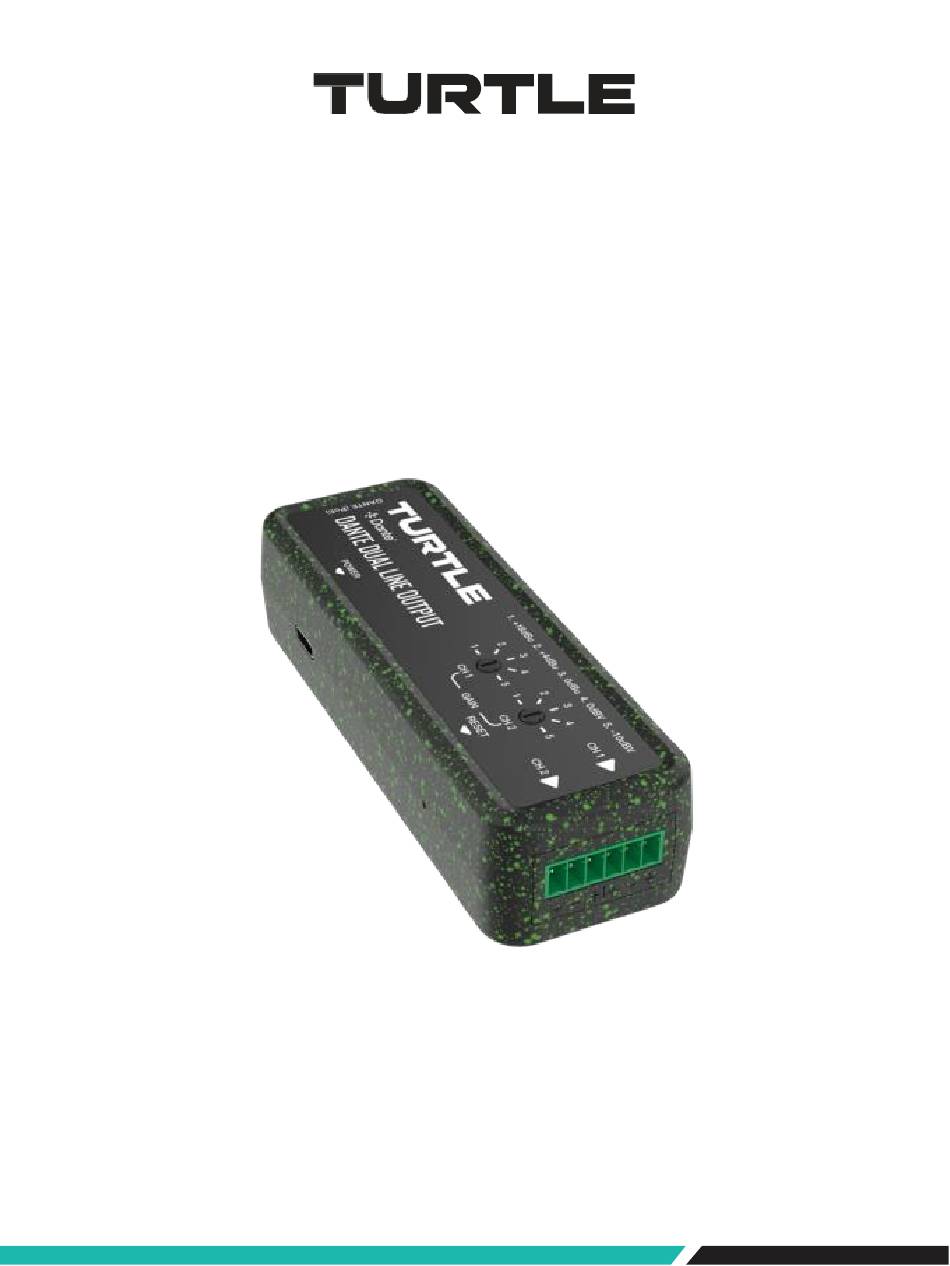

  • Page 1 DANTE DUAL LINE OUTPUT ADAPTER User Manual VER 1.0...

  • Page 2: Table Of Contents

    TAV-D2LDE Dante Dual Line Output Adapters Thank you for purchasing TURTLE product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended...

  • Page 3: Introduction

    TAV-D2LDE Dante Dual Line Output Adapters 1. Introduction Unlock the power of pristine digital audio with the Dante® 2CH Line Output Adapter. Built on the cutting-edge Dante® Ultimo 2x2 solution, this adapter converts crystal-clear Dante® digital audio into two-channel balanced or unbalanced analog audio.

  • Page 4: Specifications

    TAV-D2LDE Dante Dual Line Output Adapters 4. Specifications Technical Dante 2CH digital audio Input ® Output Two-channel balanced/unbalanced analog audio Control Method Dante Controller ® Video Network 100M Bandwidth Configurable Dante device latency ® Audio Latency (Supports 1, 2 or 5ms configurable using Dante ®...
  • Page 5 TAV-D2LDE Dante Dual Line Output Adapters Connection 1x DANTE [RJ45 connector, PoE] Input port 1x POWER [USB-C with USB power only, 12-pin female] Output port 1x CH1/CH2 LINE IN [ 6pin-3.5mm phoenix connector] 1x RESET button [System reboot button] Others...

  • Page 6: Operation Controls And Functions

    TAV-D2LDE Dante Dual Line Output Adapters 5. Operation Controls and Functions Name Function Description Dante digital audio input port, connected to the ® Network Switch through RJ45 line, supporting PD power supply. DANTE (PoE) The green LINK LED is always on after normal port connection.

  • Page 7: Wiring Configuration

    TAV-D2LDE Dante Dual Line Output Adapters 6. Wiring Configuration The connection methods for balanced and unbalanced analog audio ports are as follows: 5 / 6...

  • Page 8: Application Example

    TAV-D2LDE Dante Dual Line Output Adapters 7. Application Example Trademarks Dante is registered trademark of Audinate Pty Ltd. All other trademarks ® are the property of their respective owners. 6 / 6...
