MWE SL 60 Series Assembly Instructions

Assembly instructions
Sliding ladder SL.60..
Subject to technical changes - please also refer to our detailed technical drawings!
 MWE Edelstahl GmbH 03.07.2024
E m a i l :
www.mwe-na.com

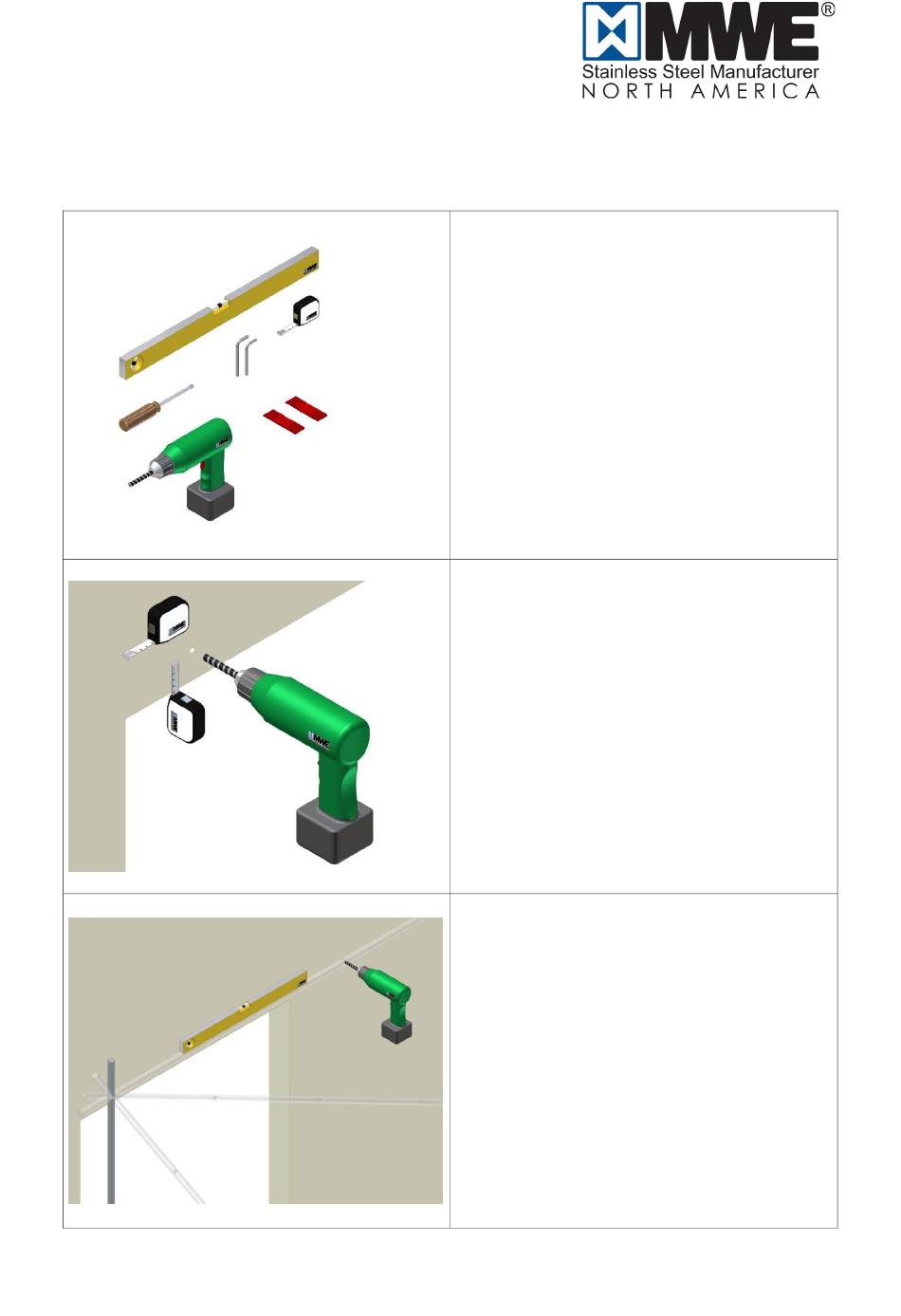

Tools
- Spirit level
- Tape measure / folding rule
Drilling aparatus
-
for runner-rail Ø20mm (13/16")
-
masonry drill Ø6mm / Ø8mm
for runner-rail Ø25mm (1")
masonry drill Ø8mm / Ø10mm
or wood drill bit
- Hex wrench
- Wrench set
Observe the drill safety instructions before
installation!
1
First Wall Drilling
Before the first wall drilling can be done, the
highest point from the finished floor must be
determined using the level. From this point, the
height of the guide rail axis as well as the lateral
distance is marked according to the detailed
planning. The first wall drilling can now be done.
2.
Additional Wall Drillings
Loosely screw the outer mounting of the guide
rail. See step 4. Use the level to bring the guide
rail into a horizontal position. Use the runner-rail
as a "drilling template" and pre-drill additional
mounting holes.
1. Drill bit Ø6mm or Ø8mm.
2. Drill the holes to fit the dowels using Ø8mm or
Ø10mm drill bit.
s a l e s @ m w e - n a . c o m
Page 1 of 4
