43/49/55UH65**
12
14
16
20
X 6
(M4 X L30)
60/65UH65**
www.lg.com
a
60/65UH65**
43/49/55UH65**
X 4
(M4 X L20)
43/49/55UH65**
AA
b
X 2
X 2
60/65UH65**
P/No: MFL69382511 (1601-REV00)
Printed in Korea
LED TV
UH65**

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 43UH6500-PB and is the answer not in the manual?

Questions and answers

Related Manuals for LG 43UH6500-PB

Summary of Contents for LG 43UH6500-PB

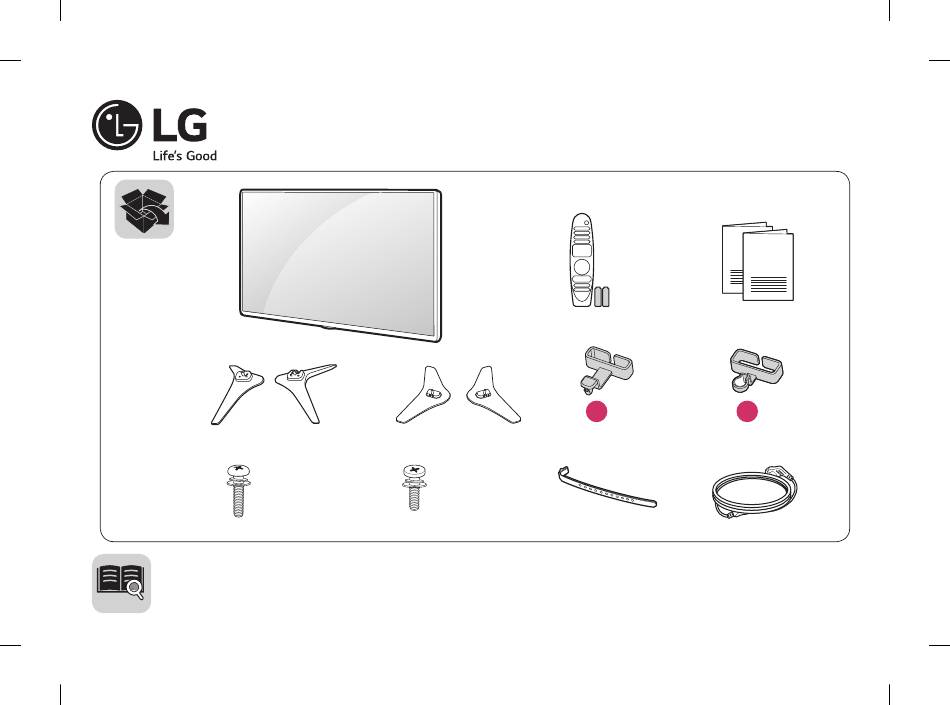

  • Page 1 LED TV UH65** 43/49/55UH65** 60/65UH65** 43/49/55UH65** 60/65UH65** (M4 X L20) (M4 X L30) 43/49/55UH65** 60/65UH65** www.lg.com P/No: MFL69382511 (1601-REV00) Printed in Korea...
  • Page 3 43/49/55UH65** 60/65UH65** 43/49/55UH65** 60/65UH65**...
  • Page 4 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN AUDIO OUT/ H/P OUT...
  • Page 5 AUDIO OUT/ H/P OUT AUDIO OUT/ Satellite IN H/P OUT OPTICAL DIGITAL Satellite IN AUDIO OUT OPTICAL DIGITAL AUDIO OUT COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R...
  • Page 6 COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
  • Page 8 77.2 43UH6500-PB 1106 77.2 12.3 12.0 49UH6500-PB 1240 60.9 16.8 16.5 55UH6500-PB 1350 62.0 23.3 22.5 60UH6500-PB 1461 62.0 27.6 26.8 65UH6500-PB...
  • Page 9 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69340911* P/NO : MFL69340911 (1601-REV00) Printed in Korea...

  • Page 10: Safety Instructions

    Safety instructions Please read these safety precautions carefully before using the product. Insert power cable plug completely into wall socket otherwise if not WARNING secured completely into socket, fire ignition may break out. Ensure the power cord does not come into contact with hot objects Do not place the TV and/or remote control in the following such as a heater.
  • Page 11 power cord and contact the service centre. Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If Do not spray water on the product or scrub with an inflammable swallowed by mistake, force the patient to vomit and visit the nearest substance (thinner or benzene).
  • Page 12 Only use an authorized AC adapter and power cord approved by mounting interface (optional parts) to the back of the product. When LG Electronics. Otherwise, this may result in fire, electric shock, you install the set to use the wall mounting bracket (optional parts), fix malfunction or product deformation.
  • Page 13 Only use the specified type of battery. This could cause damage to the Please follow the installation instructions below to prevent the product remote control. from overheating. •  The distance between the product and the wall should be more than 10 cm. • ...
  • Page 14 Avoid touching the screen or holding your finger(s) against it for long Refer all servicing to qualified service personnel. Servicing is required periods of time. Doing so may produce some temporary or permanent when the apparatus has been damaged in any way, such as power distortion/damage to screen.
  • Page 15 - High-Speed HDMI Cable with Ethernet (3m or less) ® •  Only use LG 3D glasses. Otherwise, you may not be able to view 3D •  How to use the ferrite core (Depending on model) videos properly. - Use the ferrite core to reduce the electromagnetic interference in • ...

  • Page 16: Lifting And Moving The Tv

    Lifting and moving the TV CAUTION •  Do not use any unapproved items to ensure the safety and product life span. Please note the following advice to prevent the TV from being scratched •  Any damage or injuries caused by using unapproved items are not or damaged and for safe transportation regardless of its type and size.

  • Page 17: Using The Buttons

    Using the buttons Adjusting the menu When the TV is turned on, press the button one time. You can adjust the Menu items pressing or moving the buttons. (Depending on model) You can simply operate the TV functions, pressing or moving the Turns the power off.

  • Page 18: Mounting On A Wall

    •  Remove the stand before installing the TV on a wall mount by We recommend the use of LG’s wall mount bracket. LG’s wall mount performing the stand attachment in reverse. bracket is easy to move with cables connected. When you do not use NOTE LG’s wall mount bracket, please use a wall mount bracket where the...

  • Page 19: Connections (Notifications)

    Connections (notifications) Provided item Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external Adhesive label devices.

  • Page 20: Magic Remote Functions

    Other connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided. •  General HDMI ULTRA HD Deep Colour : - On : Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0) - Off : Support 4K @ 50/60 Hz 8bit (4:2:0) LIST...

  • Page 21: Open Source Software Notice Information

    By zooming in on the selected area, you can view it in LG Electronics will also provide open source code to you on CD-ROM full screen. for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.

  • Page 22: Specifications

    This product is configured for the To obtain the external control device setup information, please visit regional frequency table. www.lg.com. •  For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.
  • Page 23 Operating 0 °C to 40 °C Temperature Operating Less than 80 % Humidity Environment condition Storage -20 °C to 60 °C Temperature Storage Less than 85 % Humidity Digital TV Analogue TV Television ISDB-T NTSC-M system Programme VHF, UHF, CATV coverage Maximum number of...
  • Page 24 Regulatory WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: •  Using cabinets or stands recommended by the manufacturer of the television set. • ...
  • Page 28 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...

  • Page 29: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...

  • Page 30: Key Codes

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 31 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (TV) (PC) • It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 32 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
  • Page 33 EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
  • Page 34 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 35 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 36 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
  • Page 37 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
  • Page 38 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
  • Page 39 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
  • Page 40 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : Run Auto Configure Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
